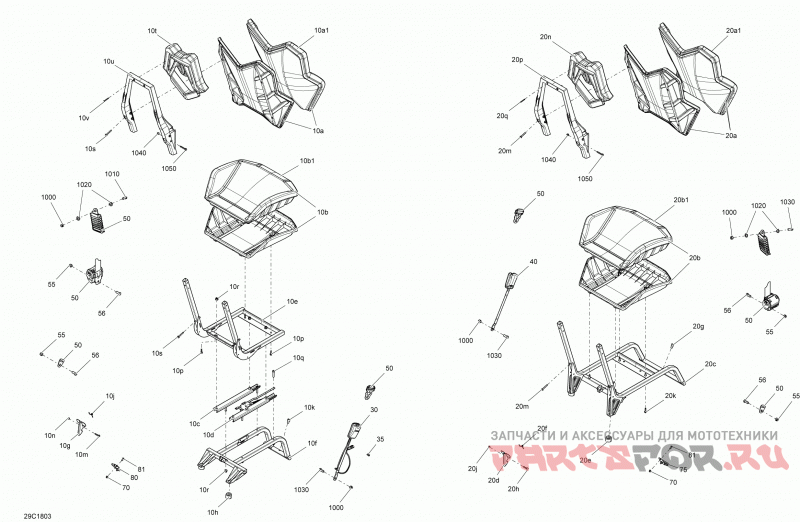

09- seat maverick non max - all models

Can-Am (Bombardier) Maverick

Can-Am (Bombardier)
#oem кодцена
10a
703500945
Backrest Assembly
10a
708002621
Backrest
10a
708002626
Backrest
10a
708002629
Backrest
10a1
708000675
Backrest Cover
10a1
708002248
Backrest Cover Black
10a1
708002622
Крышка
10a1
708002627
Крышка
10a1
708002630
Крышка
10b
708002267
Cushion Assembly Can-Am Red
10b
708002631
Подушка
10b1
708001103
Seat Cover
10b1
708002249
Cushion Cover Black
10b1
708002268
Seat Cover Can-Am Red
10b1
708002274
Seat Cover Gulfstream Blue
10b1
708002632
Крышка
10c
708000848
LH Rail
10d
708001739
RH Rail
10e
708001356
Operator Seat Frame
10f
708000667
Seat Member
10g
708001355
Seat Latch
10h
708001671
Rubber Bumper
10j
708000921
Пружина
10k
205501644
Socket Screw M10 X 16
10m
207563034
Hex. Flanged Screw M6 X 30, Scotch Grip
10n
232561600
Hex. Elastic Stop Nut M6
10p
207562544
Hex. Flanged Screw M6 X 25, Scotch Grip
10q
205084044
Socket Head Screw M8 X 40
10r
233281414
Hex. Flanged Elastic Nut M8
10s
250000672
Hex. Flange Screw M6
10t
708001074
Head Rest
10u
708001245
Seat Support
10v
250000897
Hex. Flange Screw K50 X 40
20a
703500945
Backrest Assembly
20a
708002621
Backrest
20a
708002626
Backrest
20a
708002629
Backrest
20a1
708000675
Backrest Cover
20a1
708002248
Backrest Cover Black
20a1
708002622
Крышка
20a1
708002627
Крышка
20a1
708002630
Крышка
20b
708002267
Cushion Assembly Can-Am Red
20b
708002631
Подушка
20b1
708001103
Seat Cover
20b1
708002249
Cushion Cover Black
20b1
708002268
Seat Cover Can-Am Red
20b1
708002274
Seat Cover Gulfstream Blue
20b1
708002632
Крышка
20c
708001357
Passenger Seat Frame
20d
708001355
Seat Latch
20e
708001671
Rubber Bumper
20f
708000921
Пружина
20g
205501644
Socket Screw M10 X 16
20h
207563034
Hex. Flanged Screw M6 X 30, Scotch Grip
20j
232561600
Hex. Elastic Stop Nut M6
20k
207562544
Hex. Flanged Screw M6 X 25, Scotch Grip
20m
250000672
Hex. Flange Screw M6
20n
708001074
Head Rest
20p
708001245
Seat Support
20q
250000897
Hex. Flange Screw K50 X 40
30
708002061
Driver Buckle Side
35
293750008
Tie-Rap 350 mm
40
708002062
Passenger Buckle Side
50
708002644
Safety Belt
55
250100135
Nylon Insert Hex. Lock Nut 7/16-20
56
250000521
Hex. Cap Screw 7/16' X 1'
70
250100199
Вставка
75
708002303
Retaining Rod RH
80
708002302
Retaining Rod LH
81
250000717
Torx Head Screw M6 X 16
1000
250100135
Nylon Insert Hex. Lock Nut 7/16-20
1010
708000890
Safety Belt Screw
1020
708000891
Position Washer
1030
250000521
Hex. Cap Screw 7/16' X 1'
1040
233161464
Hex. Elastic Flange Nut M6
1050
250000672
Hex. Flange Screw M6
