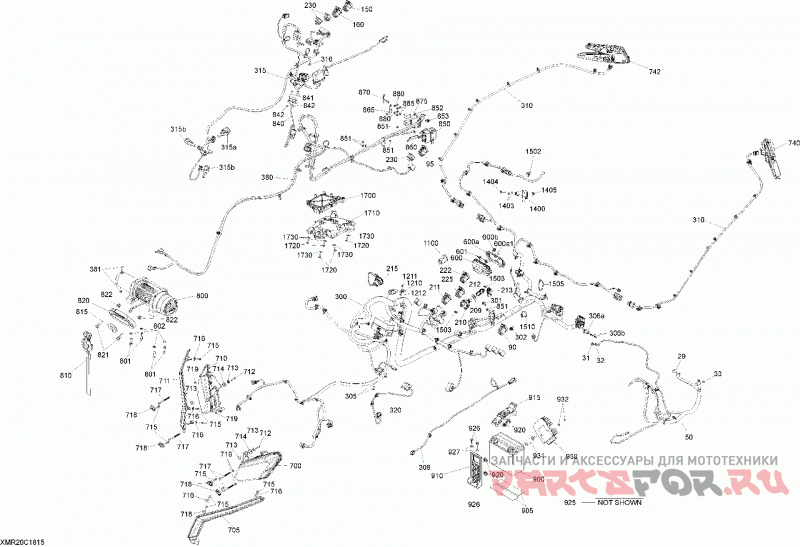

10- electrical maverick x3 xmr

Can-Am (Bombardier) 3- Maverick X3 Turbo - XMR

Can-Am (Bombardier)
#oem кодцена
29
207581644
Hex. Flanged Screw M8 X 16, Scotch Grip
31
207561644
Hex. Flanged Screw M6 X 16, Scotch Grip
32
234461608
External Serrated Lock Washer 6 mm
33
232561434
Elastic Stop Nut M6
50
710004863
Starter Cable
90
710004492
Light Switch
95
710002052
Выключатель
150
710006040
Differntial Switch
209
278002963
Safety Nut
210
515178225
DESS Switch
211
710001781
Switch DPS
212
710004964
Grey Key RFID
213
710005232
Green Key RFID
215
710005213
Start-Stop Button
222
710003541
Switch PPS Sport
225
710002053
Switch, Over ride
230
710001999
Plug Carling
301
207562054
Flanged Hex. Screw S.GRIP M6 X 20
302
250000957
Гайкапружинная M6x1.0
305
250000959
Screw PT Type K-50 X 16
306
710005956
Connector Plug
306a
278000220
Male Connector, 2 Circuits
306b
278000216
Wire Seal
310
710004776
Rear Harness
315
710005778
Diff Harness
315a
710005774
Housing Cap
315b
710005775
Housing Cap
316
250000959
Screw PT Type K-50 X 16
320
710005291
Cable Throttle Pedal
380
710005815
Winch Cable
381
232561434
Elastic Stop Nut M6
600
710006334
Speedometer
600a
415129349
Линза
601
415129355
Speedometer Button
705
710004994
LH Signature Beam
711
710004995
RH Signature Beam
712
241152540
Hex. Flanged Screw K50 X 25
713
710004749
Shoulder Bushing
714
709000582
Уплотнитель резиновый
715
250000720
Torx Screw K50 X 16
716
234062670
Flat Washer, Stainless
717
710005837
Adjustment Screw
718
710005097
Adjustment Guide
719
293300192
Уплотнительное кольцо
740
710004743
LH Tail Light
742
710004744
RH Tail Light
800
710005659
Winch
801
205083044
Socket Head Screw M8 X 30
802
234181401
Lock Washer 8 mm
810
715003523
Hook and Strap kit
815
710005142
Winch Cable Stopper
820
715004449
Winch Cable Guide
821
205003044
Socket Screw M10 x 30
822
233201414
Hex. Flanged Elastic Nut M10
841
207552044
Hex. Flanged Screw M5 X 20, Scotch Grip
842
250000958
Panel Nut M5 X 0.8
850
703500947
Solenoid
851
232561200
Elastic Stop Nut M6, Brass
852
207562034
Hex. Flanged Screw M6 X 20, Scotch Grip
853
250000957
Гайкапружинная M6x1.0
860
710004772
Power Bar
865
710004872
Power Bar
870
710004873
Power Bar
875
703500948
Breaker 50 Amp
880
250100071
Hex. Flanged Nut M5
885
234161601
Lock Washer Helical M6
900a
250000282
Battery Bolt Kit
905
293830126
Rubber Pad
910
710004788
Fixation Plate
915
710004789
Fixation Plate
920
705003666
Резиновый патрубок
925
250100199
Вставка
926
207562054
Flanged Hex. Screw S.GRIP M6 X 20
927
234062410
Flat Washer 6 mm
930
710005842
Реле регулятора
931
710005782
Держатель
932
232561434
Elastic Stop Nut M6
1100
710005374
12V Power Outlet
1210
270000141
Зажим
1212
391301600
Шайба
1400
278003012
Реле стартера
1403
232561200
Elastic Stop Nut M6, Brass
1404
207562054
Flanged Hex. Screw S.GRIP M6 X 20
1405
250000957
Гайкапружинная M6x1.0
1502
293750058
Locking Tie Rap
1700
710006479
Front Drive Module
1710
710005807
FDM Support
1720
250000959
Screw PT Type K-50 X 16
1730
250200025
Washer M5
390402300
Pop Rivet 3/16
293750001
Tie-Rap 94 mm
293750008
Tie-Rap 350 mm
710003168
Christmas Tree Tie-Rap 200 mm
