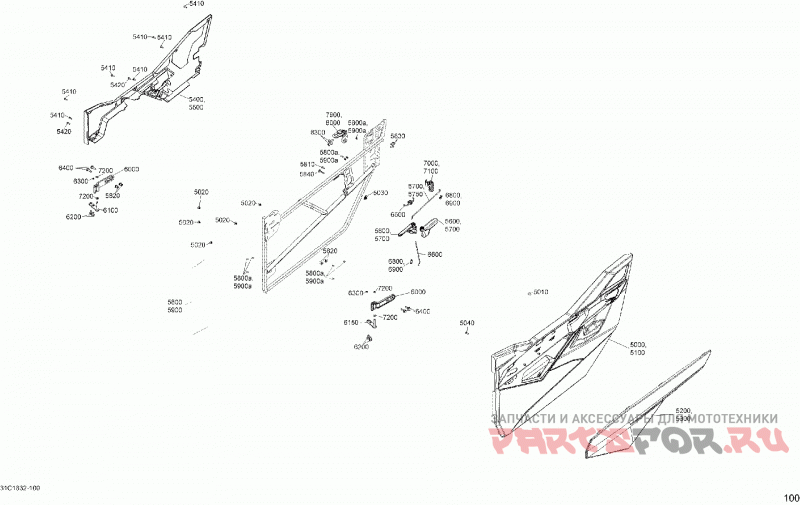

09 - body, doors maverick trail - 1000 efi

Can-Am (Bombardier) 2- Maverick Trail 1000 EFI

Can-Am (Bombardier)
#oem кодцена
5000
705011479
LH Exterior Door Panel
5010
293830005
Rubber Bumper
5020
293150104
Pop Rivet 3/16
5030
250000957
Extruded Panel Nut M6
5040
250000720
Torx Screw K50 X 16
5100
705011480
RH Exterior Door Panel
5200
705011481
White, LH Door Trim Panel
5200
705012419
Red, LH Door Trim Panel
5200
705012421
Yellow, LH Door Trim Panel
5200
705012423
Camo, LH Door Trim Panel
5300
705011482
White, RH Door Trim Panel
5300
705012420
Red, RH Door Trim Panel
5300
705012422
Yellow, RH Door Trim Panel
5300
705012424
Camo, RH Door Trim Panel
5400
715005003
LH Inner Door Panel Assy
5410
250000720
Torx Screw K50 X 16
5420
250000720
Torx Screw K50 X 16
5500
715005004
RH Inner Door Panel Assy
5600
705011585
LH Opening Handle
5700
705011586
RH Opening Handle
5800
705800303
LH Door Frame
5800a
390402000
Pop Rivet 3/16
5810
250000720
Torx Screw K50 X 16
5820
293450307
Insert, Half Hex Body M8 x 1.25
5830
250000721
Torx Truss Screw M6 X 16
5840
250000541
Torx Screw M6 X 35
5900
705800304
RH Door Frame
5900a
390402000
Pop Rivet 3/16
6000
705013228
Machined Hinge
6100
705011629
Lower Hinge Ajustement
6150
705012506
Upper Hinge Ajustement
6200
207581646
Hex. Flanged Screw M8 X 16, Scotch Grip
6300
705601030
Пружинное стопорное кольцо
6400
207582534
Hex. Flanged Screw, Scotch Grip
6500
705011630
Handle Spring
6600
705206132
Handle Axle
6700
705206133
LH Locking Rod
6750
705206134
RH Locking Rod
6800
708300182
LH Tie Rod Clip
6900
708300202
RH Tie Rod Clip
7000
705013095
LH Latch
7100
705013096
RH Latch
7200
234081100
Flat Washer 8 mm, Nylon
7900
705207027
LH Stricker Support
8000
705207028
RH Stricker Support
8300
250000745
Hex Torx Truss M8 X30
