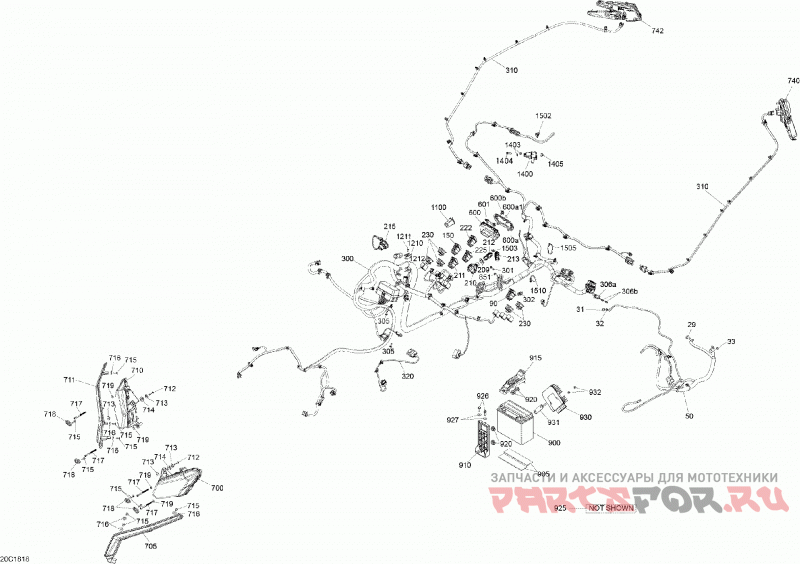

Can-Am (Bombardier) 1- Maverick X3 900HO

Can-Am (Bombardier)
#oem кодцена
29
207581644
Hex. Flanged Screw M8 X 16, Scotch Grip
31
207561644
Hex. Flanged Screw M6 X 16, Scotch Grip
32
234461608
External Serrated Lock Washer 6 mm
33
232561434
Elastic Stop Nut M6
50
710004863
Starter Cable
90
710004492
Light Switch
150
710004814
2 X 4 Switch
209
278002963
Safety Nut
210
515178225
DESS Switch
211
710001781
Switch DPS
212
710004964
Grey Key RFID
213
710005232
Green Key RFID
215
710005213
Start-Stop Button
222
710003541
Switch PPS Sport
225
710002053
Switch, Over ride
230
710001999
Plug Carling
301
207562054
Flanged Hex. Screw S.GRIP M6 X 20
302
250000957
Гайкапружинная M6x1.0
305
250000959
Screw PT Type K-50 X 16
306
710005956
Connector Plug
306a
278000220
Male Connector, 2 Circuits
306b
278000216
Wire Seal
310
710004776
Rear Harness
320
710005291
Cable Throttle Pedal
600
710005553
Speedometer
600a1
704904615
BRP Logo, 13 mm
600b
715900265
Button
601
415129355
Speedometer Button
705
705011485
Fascia Trim LH
711
705011486
Fascia Trim RH
712
241152540
Hex. Flanged Screw K50 X 25
713
710004749
Shoulder Bushing
714
709000582
Уплотнитель резиновый
715
250000720
Torx Screw K50 X 16
716
234062670
Flat Washer, Stainless
717
710005837
Adjustment Screw
718
710005097
Adjustment Guide
719
293300192
Уплотнительное кольцо
740
710004743
LH Tail Light
742
710004744
RH Tail Light
851
232561434
Elastic Stop Nut M6
905
293830126
Rubber Pad
910
710004788
Fixation Plate
915
710004789
Fixation Plate
920
705003666
Резиновый патрубок
925
250100199
Вставка
926
207562054
Flanged Hex. Screw S.GRIP M6 X 20
927
234062410
Flat Washer 6 mm
930
710005842
Реле регулятора
931
710005782
Держатель
932
232561434
Elastic Stop Nut M6
1100
710005374
12V Power Outlet
1210
270000141
Зажим
1211
390402300
Pop Rivet 3/16
1212
391301600
Шайба
1400
278003012
Реле стартера
1403
232561200
Elastic Stop Nut M6, Brass
1404
207562054
Flanged Hex. Screw S.GRIP M6 X 20
1405
250000957
Гайкапружинная M6x1.0
1502
293750058
Locking Tie Rap
1503
293750001
Tie-Rap 94 mm
1505
293750008
Tie-Rap 350 mm
1510
710003168
Christmas Tree Tie-Rap 200 mm
