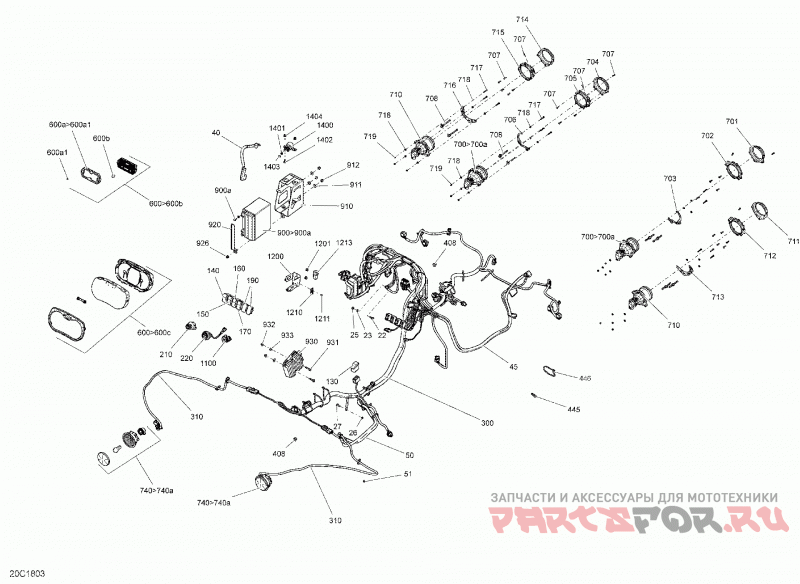

10- electrical system maverick - except xmr

Can-Am (Bombardier) 1- Maverick

Can-Am (Bombardier)
#oem кодцена
22
207662044
Hex. Flanged Screw M6 X 20
23
234461608
External Serrated Lock Washer 6 mm
25
233061414
Hex. Flanged Nut M6
26
234461608
External Serrated Lock Washer 6 mm
27
207561644
Hex. Flanged Screw M6 X 16, Scotch Grip
40
710004384
Positive Cable
45
710004878
Positive Cable
50
710004383
Positive Cable
51
232561434
Elastic Stop Nut M6
130
710002053
Switch, Over ride
140
710001725
Hi/Low Switch
150
710001737
Выключатель
160
710003541
Switch PPS Sport
170
710001781
Switch DPS
190
710001999
Plug Carling
210
710003847
Ignition Switch
220
710002594
Engine START Button
300>300a
710005674
Harness-Assy.
300a
710005760
DPS Connector Cap
310
710004685
Rear Harness
408
293730040
Mount Dart
445
414115200
Стяжка 180мм
446
293750008
Tie-Rap 350 mm
600>600b
710005553
Speedometer
10a1
704904615
BRP Logo, 13 mm
10b
715900265
Button
600>600c
710005653
Speedometer
10a
415129348
Gauge Ring
10b
415129349
Линза
10c
415129355
Speedometer Button
700a
415129249
Halogen Bulb
701
710001081
RH Low Front Housing
702
710001082
RH Low Rear Housing
703
710001094
RH Low Light Support
704
710001083
LH Low Front Housing
705
710001084
LH Low Rear Housing
706
710001037
LH Low Light Support
707
250000723
Phillips Screw K40 X 16
708
710001147
Setting Screw
710a
415129249
Halogen Bulb
711
710001085
RH High Front Housing
712
710001086
RH High Rear Housing
713
710001115
RH High Light Support
714
710001087
LH High Front Housing
715
710001088
LH High Rear Housing
716
710001036
LH High Light Support
717
207142544
Hex. Screw M4 X 25
718
234051410
Flat Washer M5
719
232541414
Elastic Stop Nut M4
740>740a
710001645
Tail Light
740a
520000758
Bulb
900a
250000282
Battery Bolt Kit
910
710003129
Battery Support
911
234062410
Flat Washer 6 mm
912
233261414
Hex. Flanged Elastic Nut M6
920
710001916
Battery Holder
926
233261414
Hex. Flanged Elastic Nut M6
930
710005842
Реле регулятора
931
207563034
Hex. Flanged Screw M6 X 30, Scotch Grip
932
233261414
Hex. Flanged Elastic Nut M6
933
234062670
Flat Washer, Stainless
1100
710001248
Outlet DC
1200
710003335
Fuse Holder
1201
293150103
Black Pop Rivet 3/16
1210
270000141
Зажим
1211
390402400
Pop Rivet 3/16
1213
710003006
Кожух
1400
710001364
Реле стартера
1401
234161601
Lock Washer Helical M6
1402
250000717
Torx Head Screw M6 X 16
1403
232061600
Hex. Nut M6
1404
233261414
Hex. Flanged Elastic Nut M6
