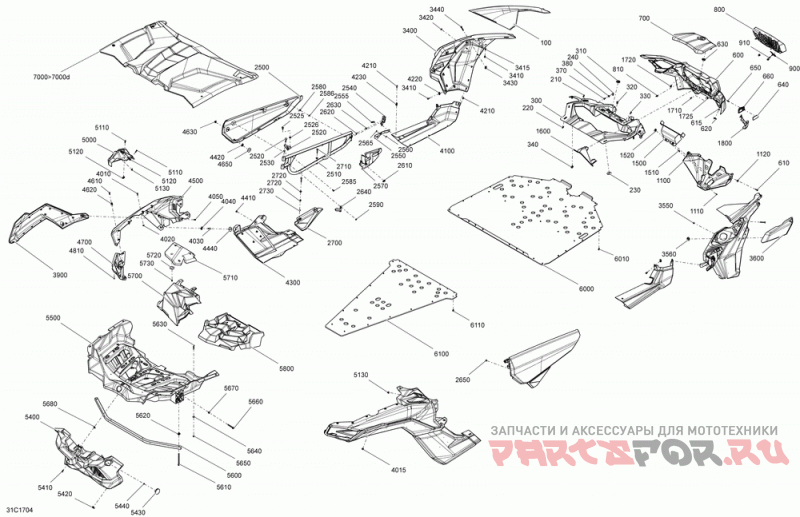

09- body and accessories

Can-Am (Bombardier) Maverick X3

Can-Am (Bombardier)
#oem кодцена
100
705011087
Black Lh Front Fender Model Black
100
705011091
Black Rh Front Fender Model Black
100
705011092
Gold Lh Front Fender Model Gold
100
705011093
Gold Rh Front Fender Model Gold
100
705009505
White Lh Front Fender Model White
100
705009506
White Rh Front Fender Model White
210
705010721
Зажим
220
517302785
Clip (10.000 Per Pack)
230
705003841
Опорная Плита
240
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
300
705010671
Permanent Hood
310
705010718
Уплотнитель резиновый
320
293150089
Tuflok Plastic Rivet (25.000 Per Pack)
330
250000722
Torx Screw M6 X 20
340
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
370
250000722
Torx Screw M6 X 20
380
234062670
Flat Washer (10.000 Per Pack)
600
705009508
Front Facia
610
250000722
Torx Screw M6 X 20
615
234062670
Flat Washer (10.000 Per Pack)
620
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
630
517303756
Втулка
640
520000271
Amber Reflector
650
250000720
Torx Screw K50 X 16 (5.000 Per Pack)
660
705011806
Lh. Reflector Support
660
705011814
Rh. Reflector Support
700
705010277
White Facia Cover Model White
700
705011095
Black Facia Cover Model Black
700
705011097
Gold Facia Cover Model Gold
800
705010443
Front Radiator Grill
810
517302785
Clip (10.000 Per Pack)
900
705010885
Grill Logo Except Model X3
910
250000725
Screw M4 X 16 Except Model X3 (2.000 Per Pack)
1100
705009978
Front Deflector
1110
293150103
Заклепка 3/16
1120
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
1500
705010742
Lower Front Radiator Deflector
1510
250000722
Torx Screw M6 X 20
1520
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
1600
705010626
Lh Front Radiator Deflector
1600
705010627
Rh Front Radiator Deflector
1710
250000722
Torx Screw M6 X 20
1720
517302785
Clip (10.000 Per Pack)
1725
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
1800
705010628
Lh Light Cover
1800
705010629
Rh Light Cover
2500
705011115
Black Lh Door Panel Model Black
2500
705011116
Black Rh Door Panel Model Black
2500
705011117
Gold Lh Door Panel Model Gold
2500
705011118
Gold Rh Door Panel Model Gold
2500
705010067
White Lh Door Panel Model White
2500
705010068
White Rh Door Panel Model White
2510
705011344
Black Door Frame Except Model Gold
2510
705011345
Black Door Frame Except Model Gold
2510
705011346
Red Door Frame Model Gold
2510
705011347
Red Door Frame Model Gold
2525
207582054
Винт
2526
234081430
Шайба Плоская М8
2530
234081100
Flat Washer 8 Mm, Nylon (5.000 Per Pack)
2540
705012027
Lh Latch
2540
705012028
Rh Latch
2550
293850126
Ремень
2555
708001127
Spring Tension
2560
293730070
Belt Stopper
2565
293730072
Belt Stopper
2570
705010734
Lh Latch Cover
2570
705010735
Rh Latch Cover
2580
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
2585
250000721
Torx-truss M/s Bzn Nylon Patch
2586
234062670
Flat Washer (10.000 Per Pack)
2590
293150103
Заклепка 3/16
2610
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
2620
250000721
Torx-truss M/s Bzn Nylon Patch Lh Side
2620
250000722
Torx Screw M6 X 20 Rh Side
2630
234062670
Flat Washer (10.000 Per Pack)
2640
293850129
Ремень
2650
293150103
Заклепка 3/16
2700
705010732
Left Lower Door Cover Except Model X3 Xrs
2700
705010733
Right Lower Door Cover Except Model X3 Xrs
2710
250000749
Torx-truss M/s M6 X 50 Lh Side, Except Model X3 Xrs
2710
250000868
Torx-truss M/s M6 X 50 Rh Side, Except Model X3 Xrs (5.000 Per Pack)
2720
234062670
Flat Washer Except Model X3 Xrs (10.000 Per Pack)
2730
233261466
Hex. Flanged Elastic Nut M6 Except Model X3 Xrs (8.000 Per Pack)
3400
715004074
Lateral Panel Assembly Front Right
3410
250000722
Torx Screw M6 X 20
3415
233261466
Hex. Flanged Elastic Nut M6 (8.000 Per Pack)
3420
293450274
Вставка
3430
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
3440
250000868
Torx-truss M/s M6 X 50 (5.000 Per Pack)
3550
233261434
Flanged Elastic Nut M6 (8.000 Per Pack)
3560
517303756
Втулка
3600
705010334
Rh Lateral Panel Cover
3900
705009511
Lh Rear Fender Deflector
3900
705009512
Rh Rear Fender Deflector
4010
250000722
Torx Screw M6 X 20
4015
234062670
Flat Washer (10.000 Per Pack)
4020
233161464
Hex. Elastic Flange Nut M6
4030
250000807
Torx-truss M/s M6 X 25
4040
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
4050
250000720
Torx Screw K50 X 16 (5.000 Per Pack)
4100
705009513
Lh Central Lateral Panel
4100
705009514
Rh Central Lateral Panel
4210
250000722
Torx Screw M6 X 20
4220
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
4230
705010872
Вставка
4300
705010676
Lh Rear Lateral Panel
4300
705010677
Rh Rear Lateral Panel
4410
293150104
Поп Заклепки 3/16"
4420
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
4440
705003841
Опорная Плита
4500
705009515
White Lh Rear Fender Model White
4500
705011119
Yellow Lh Rear Fender Model Yellow
4500
705011121
Black Lh Rear Fender Model Black
4500
705011123
Gold Lh Rear Fender Model Gold
4500
705009516
White Rh Rear Fender Model White
4500
705011120
Yellow Rh Rear Fender Model Yellow
4500
705011122
Black Rh Rear Fender Model Black
4500
705011124
Gold Rh Rear Fender Model Gold
4610
250000722
Torx Screw M6 X 20
4620
705010872
Вставка
4630
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
4650
705003841
Опорная Плита
4700
705010686
Rear Left Side Cover.
4700
705010687
Rear Rh Side Cover.
4810
250000720
Torx Screw K50 X 16 (5.000 Per Pack)
5000
705010335
Lh Rear Cage Trim
5000
705010336
Rh Rear Cage Trim
5110
250000722
Torx Screw M6 X 20
5120
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
5130
517302785
Clip (10.000 Per Pack)
5400
705010001
Rear Fascia
5410
250000722
Torx Screw M6 X 20
5420
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
5430
705011221
Красный Отражатель
5440
233251494
Elastic Flanged Nut M5 (5.000 Per Pack)
5610
230683034
Hex. Flanged Screw M8 X 130
5620
269501943
Elastic Nut Housing M8
5630
250000868
Torx-truss M/s M6 X 50 (5.000 Per Pack)
5640
234062670
Flat Washer (10.000 Per Pack)
5650
233261494
Hex. Elastic Flanged Nut M6 (10.000 Per Pack)
5660
207687044
Hex. Flanged Screw M8 X 70
5670
233081436
Hex. Flanged Nut
5680
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
5700
705010288
Air Inlet Cover
5710
705011293
Foam Air Inlet Cover
5720
705003841
Опорная Плита
5730
250000760
Винт
5800
705010286
Rear Cover
6000
705010390
Central Skid Plate Except Model X3 Xrs
6000
715002904
Hmwpe Skid Plates Model X3 Xrs
6010
293150108
Pop Rivet 3/16 (25.000 Per Pack)
6100
705010391
Rear Skid Plate Except Model X3 Xrs
6100
715002904
Hmwpe Skid Plates Model X3 Xrs
6110
293150108
Pop Rivet 3/16 (25.000 Per Pack)
2520
705011187
Painted Door Support
7000>7000d
715002902
Sport Roof Model X3 Xrs Includes 7000 To 7000d
7000a
704904566
Can-am Decal Model X3 Xrs
7000c
293250424
Neoprene Seal Model X3 Xrs
