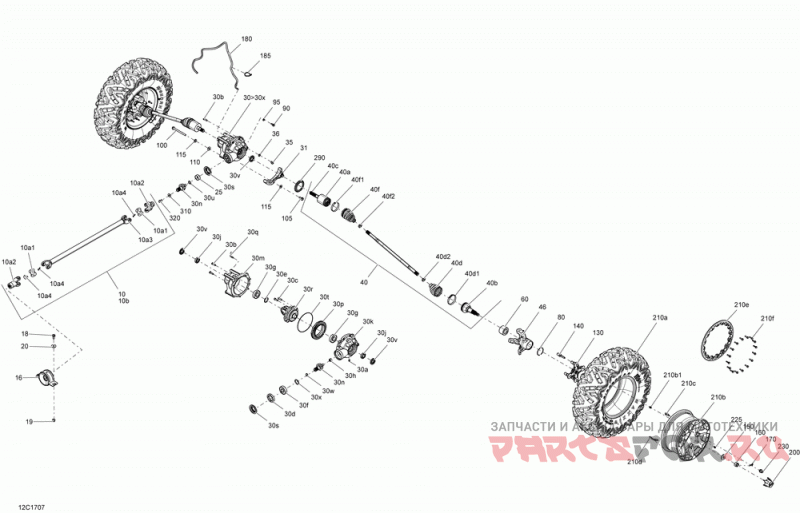

07- drive system, front - all models

Can-Am (Bombardier) Maverick MAX

Can-Am (Bombardier)
#oem кодцена
10>10b
703500940
Axle Ass Y Kit Includes 10 To 10b
10a1
715900435
U-joint Cross Kit
10a2
715900116
Fixed Yoke Joint
10a3
715900231
Yoke Joint Cover 715900483
10a4
703500815
Масленка
10b
705400036
Wear Ring
16
705401646
Подшипник
18
207602544
Hex. Flanged Screw M10 X 25 (10.000 Per Pack)
19
233201414
Hex. Flanged Elastic Nut M10 (10.000 Per Pack)
20
503032900
Rondelle *washer (10.000 Per Pack)
25
705400036
Wear Ring
30>30x
703500908
Differential Kit
30a
705501885
Drain Plug
30b
705401601
Vis *screw (6.000 Per Pack)
30c
705401602
Vis *screw (8.000 Per Pack)
30d
705401603
Гайка
30e
705401604
Регулировочная прокладка
30f
705401605
Подшипник
30g
705401606
Подшипник
30h
705401607
Игольчатый подшипник
30j
705401608
Ball Bearing (2.000 Per Pack)
30k
705401792
Couvercle Avant*front Cover
30m
705401610
Front Cover
30n
705401791
Engrenage 10 D *pinion 10 Th.
30p
705401612
Gear 36 Teeth
30q
705401613
Vent Valve
30r
705401506
Differential
30s
705401615
Сальник
30t
705401616
Сальник
30u
705401617
Кольцо
30v
705401618
Joint Etanche *oil Seal (2.000 Per Pack)
30w
705401769
Espaceur *shim
30x
705401770
Espaceur *shim
31
705401600
Держатель
35
705500504
Сливная пробка
36
705500506
Copper Washer (10.000 Per Pack)
40>40f2
705401874
Half Shaft Rh. Package Dps, Xds Std, Xds Xrs, Xds Dps Includes 40 To 40f2
40>40f2
705401878
Half Shaft Rh. Package Xmr Includes 40 To 40f2
40>40f2
705401873
Half Shaft Lh. Package Dps, Xds Std, Xds Xrs, Xds Dps Includes 40 To 40f2
40>40f2
705401877
Half Shaft Lh. Package Xmr Includes 40 To 40f2
40a
715900431
Rh Plunging Joint Package Dps, Xds Std, Xds Xrs, Xds Dps
40a
715900395
Joint Plongeant*joint-plunging Package Xmr
40a
715900430
Lh Plunging Joint Package Dps, Xds Std, Xds Xrs, Xds Dps
40a
715900396
Joint Plongeant*joint-plunging Package Xmr
40b
715900427
Cv Joint Package Dps, Xds Std, Xds Xrs, Xds Dps
40b
715900428
Cv Joint Package Xmr
40c
705401349
Circlip Joint
40d>40d2
705401345
Ens.soufflet *kit-boot Wheel Package Dps, Xds Std, Xds Xrs, Xds Dps Includes 40d To 40d2
40d>40d2
705401354
Ens.soufflet *kit-boot Wheel Package Xmr Includes 40d To 40d2
40d1
715900282
Oetiker Clamp, Large Package Dps, Xds Std, Xds Xrs, Xds Dps
40d1
715900260
Oetiker Clamp, Large Package Xmr
40d2
715900283
Oetiker Clamp, Small Package Dps, Xds Std, Xds Xrs, Xds Dps
40d2
715900261
Oetiker Clamp, Small Package Xmr
40f>f2
705401346
Ens.soufflet *kit-boot Diff. Package Dps, Xds Std, Xds Xrs, Xds Dps Includes 40f To 40f2
40f>f2
705401355
Ens.soufflet *kit-boot Differential Package Xmr Includes 40f To 40f2
40f1
715900284
Oetiker Clamp, Large Package Dps, Xds Std, Xds Xrs, Xds Dps
40f1
715900261
Oetiker Clamp, Small Package Xmr
40f2
715900261
Oetiker Clamp, Small Package Dps, Xds Std, Xds Xrs, Xds Dps
40f2
715900262
Oetiker Clamp, Large Package Xmr
45
705401548
Lh Front Knuckle
46
705401549
Rh Front Knuckle
60
293350118
Подшипник
80
293370019
Пружинное стопорное кольцо
90
207582044
Hex. Flanged Screw M8 X 20, Scotch Grip (10.000 Per Pack)
95
234281474
Conical Spring Washer M8 (10.000 Per Pack)
100
230602546
Hex. Flanged Screw M10 X 125
105
207602546
Hex. Flanged Screw M10 X 25
110
250200014
Flat Washer M10 (10.000 Per Pack)
115
234201474
Conical Spring Washer 10 Mm (10.000 Per Pack)
130
705501900
Wheel Hub
140
250300060
Wheel Stud
150
250200049
Rondelle Ress. *spring Washer (5.000 Per Pack)
160
250100047
Hex. Castellated Nut M18 (5.000 Per Pack)
170
250400071
Шплинт
185
414115200
Tie-rap 180 Mm (50.000 Per Pack)
200
705400928
Wheel Cap Except Package Xmr, Xds Std
200
705401541
Wheel Cap Package Xmr, Xds Std
210a
705401385
Pneu Avant *front Tire Package Dps
210a
705401592
Pneu Avant *front Tire Package Xds Xrs, Xds Dps, Xds Std
210a
705401501
Pneu *tire Package Xmr
210b
705401417
Jante Avant *wheel Front Package Dps
210b
705401564
Jante Avant *front Rim Package Xds Std
210b
705401848
Front Rim Package Xmr
210b>210b1
705401594
Jante Avant *front Rim Package Xds Xrs, Xds Dps Includes 210b To 210b1
210b1
293450317
Вставка
210c
705400193
Rim Valve With Cap
210d
705501385
1/2 Oz Weight
210e
705401837
Painted Disc Plate Package Xds Xrs
210e
705401702
Disque De Jante*disc Plate Package Xds Dps
210f
250000787
Screw-hexagone Flange M6 X 25 Package Xds Xrs, Xds Dps (8.000 Per Pack)
225
293000110
Valve Cap
230
250100184
Black Wheel Nut M10 X 1.25 (4.000 Per Pack)
290
705400780
Wear Sleeve Except Package Xmr
310
250200014
Flat Washer M10 (10.000 Per Pack)
320
250000847
Screw-hex.flange M10 X 20 S.grip
