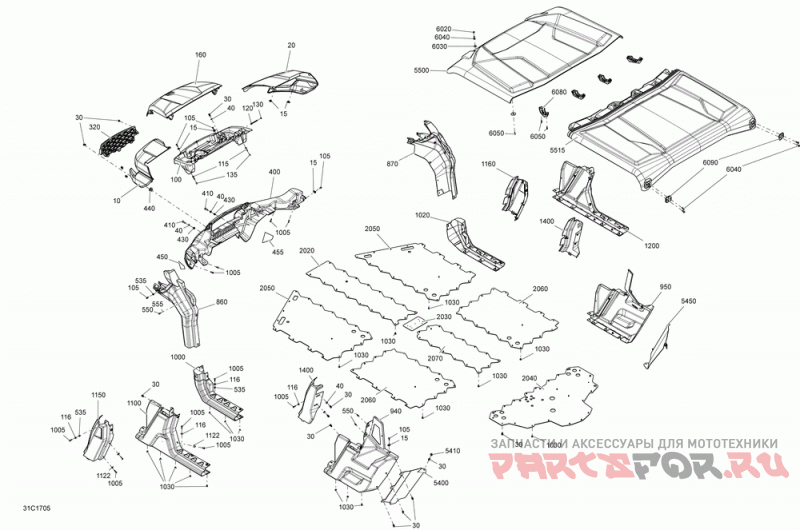

09- body and accessories - all models

Can-Am (Bombardier) Defender MAX

Can-Am (Bombardier)
#oem кодцена
10
705012024
Front Left Green Fender
10
705010179
Front Left Fender Camo
10
705011409
Front Left Fender Pure Magnesium
10
705010513
Front Left Fender Yellow
10
705011407
Front Left Fender Intense Red
15
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
20
705012025
Front Right Green Fender
20
705010511
Front Right Fender Camo
20
705011410
Front Right Fender Pure Magnesium
20
705010514
Front Right Fender Yellow
20
705011408
Front Right Fender Intense Red
30
293150089
Tuflok Plastic Rivet (25.000 Per Pack)
40
503192494
Шайба *шайба
100
705011391
Service Center
105
250000722
Torx Screw M6 X 20
115
210263050
Screw-forming Hex.hd.fl.bzn (10.000 Per Pack)
116
234062670
Flat Washer (10.000 Per Pack)
120
207667554
Винт
130
732610072
Гайка
135
293900125
Втулка
160
705012026
Removable Hood
160
705010525
Removable Hood Camo
160
705011401
Removable Hood Pure Magnesium
160
705010523
Removable Hood
160
705011400
Removable Hood Intense Red
320
705009364
Fascia Grid
400
705011392
Front Facia
410
250000886
Torx Screw M8 X 30
430
233281414
Гайка М8
440
705010718
Уплотнитель резиновый
450
704905072
Reflecteur Ga *lh Reflector
455
704905073
Reflecteur Dr *rh Reflector
535
293450274
Вставка
550
250000720
Torx Screw K50 X 16 (5.000 Per Pack)
555
234051670
Flat Washer M5 (4.000 Per Pack)
860
705008152
Front Left Panel
870
705008153
Front Right Panel
940
705008154
Rear Left Side Panel
950
705008155
Rear Right Side Panel
1000
705008699
Lh Central Panel
1005
250000807
Torx-truss M/s M6 X 25
1020
705008700
Rh Central Panel
1030
293150104
Поп Заклепки 3/16"
1100
705010603
Middle Left Side Panel
1122
250200162
Washer-flat M6.6 X 22
1150
705010601
Middle Left Cage Cover
1160
705010602
Middle Right Cage Cover
1200
705010604
Middle Right Side Panel
1400
715003564
Cage Cover Left Rear Kit
1400
715003565
Cage Cover Right Rear Kit
2020
705009151
Plaque Central *central Skid
2030
705010884
Connection Plate
2040
705011292
Rear Skid Plate
2050
705010422
Side Skid Plate Package Xt
2060
705010587
Rear Side Skid Plate Package Xt
2070
705010588
Rear Central Skid Plate
5400
705010426
Rear Left Deflector
5410
292001663
Flat Washer 8 Mm, Nylon
5450
705010427
Rear Right Deflector
5500
715003038
Sport Roof Max Assembly Kit Package Xt
6020
232081414
Hex. Nut M8 Package Xt (10.000 Per Pack)
6030
234082410
Flat Washer 8 Mm Package Xt (10.000 Per Pack)
6040
250000874
Torx Truss M/s M8 X 25 Package Xt
6050
250000760
Torx-screw Truss Head Pt.k50 X 20 Package Xt
6080
705800131
Roof Anchor Package Xt
6090
705800058
Cap Package Xt
