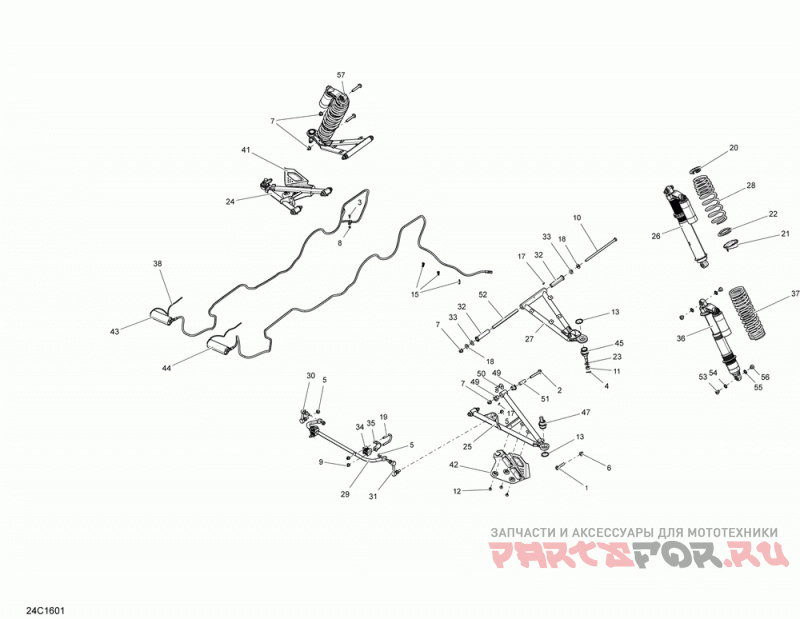

Передняя подвеска

Can-Am (Bombardier) Commander - Commander MAX

Can-Am (Bombardier)
#oem кодцена
1
207605044
Hex. Flanged Screw M10 X 50
2
207607046
Hex. Flanged Screw M10 X 70 (5.000 Per Pack)
3
210251650
Screw-forming Hex.hd.fl.bzn Package Ltd
4
211400017
Cotter Pin (50.000 Per Pack)
5
232501416
Elastic Flanged Nut M10 Package Xtp (5.000 Per Pack)
6
233201414
Hex. Flanged Elastic Nut M10 (10.000 Per Pack)
7
233201436
Flanged Elastic Nut M10 (10.000 Per Pack)
8
233251494
Elastic Flanged Nut M5 Package Ltd (5.000 Per Pack)
9
233281414
Hex. Flanged Elastic Nut M8 Package Xtp (10.000 Per Pack)
10
250000510
Hex. Cap Screw M10 X 225
11
250100099
Гайка М12
12
293150104
Поп Заклепки 3/16"
13
293370035
Circlip (10.000 Per Pack)
15
293750002
Tie-rap 142 Mm Package Ltd (10.000 Per Pack)
17
408200700
Grease Fitting (10.000 Per Pack)
18
503190439
Rondelle *washer (2.000 Per Pack)
19
506060600
U-clamp Package Xtp
20
706000567
Пружина
21
706000910
Rond. Rglage *adjust Ring
22
706000911
Protector Ring
23
250200086
Шайба
24
706200742
Lh Lower Suspension Arm
25
706200744
Rh Lower Suspension Arm
26
706200780
Front Shock Package Std
26
706200782
Front Shock Except Package Std-ltd - Xtp
26
706201364
Front Shock Package Ltd
26
706201758
Front Shock Max Model Except Package Ltd
37
706202037
Orange Front Spring Package Xtp
26
706202192
Front Shock Max Model Package Ltd
27
706200796
Suspension Upper Arm
28
706200860
Yellow Front Spring Package Xt Yellow
28
706201367
Red Front Spring Package Dps
28
706201369
Black Front Spring Package Xt Camo, Hunter
28
706201631
Red Front Spring Package Std
28
706202039
Red Can-am Front Spring Max Model - Package Dps
28
706202188
Yellow Front Spring Max Model Package Xt Yellow
28
706202189
Black Front Spring Max Model Package Xt Camo
28
706202331
Ressort *spring Max Model Black
28
706202332
Ressort *spring Package Xt Black
29
706200865
Sway Bar Package Xtp
30
706200894
Lh Double Ball Joint Package Xtp
31
706201032
Rh Double Ball Joint Package Xtp
32
706201062
Подушка
33
706201063
Плита Износа
34
706201086
Stabilizer Bushing Package Xtp
35
706201087
Clamp Package Xtp
36
706201364
Front Shock Package Ltd
36
706202192
Front Shock Max Model Package Ltd
36
706202427
Amortisseur Av.*front Shock Package Xtp
37
706202041
Black Front Spring Max Model Package Ltd
37
706201473
Black Spring Package Ltd
38
706001874
Hose 4.0mm Package Ltd
41
706201669
Lh Protector
42
706201670
Rh Protector
43
706201997
Lh Hose Ass Y Package Ltd
44
706201999
Rh Hose Ass Y Package Ltd
45
706202044
Шаровая опора
47
706202045
Шаровая опора
49
706202088
Подушка
50
703500875
Kit Coussinet *cushion Kit
51
703500875
Kit Coussinet *cushion Kit Include 49+50
52
706202445
Втулка внутренняя
53
715500361
Interior Bushing Package Ltd
53
715900210
Interior Bushing Max Model Package Ltd
54
715500360
O-ring Bushing Package Ltd
54
715900209
O-ring Bushing Max Model Package Ltd
55
715900251
Spherical Bearing
56
715900252
Стопорное кольцо
57
207605544
Hex. Flanged Screw M10 X 55 (5.000 Per Pack)
