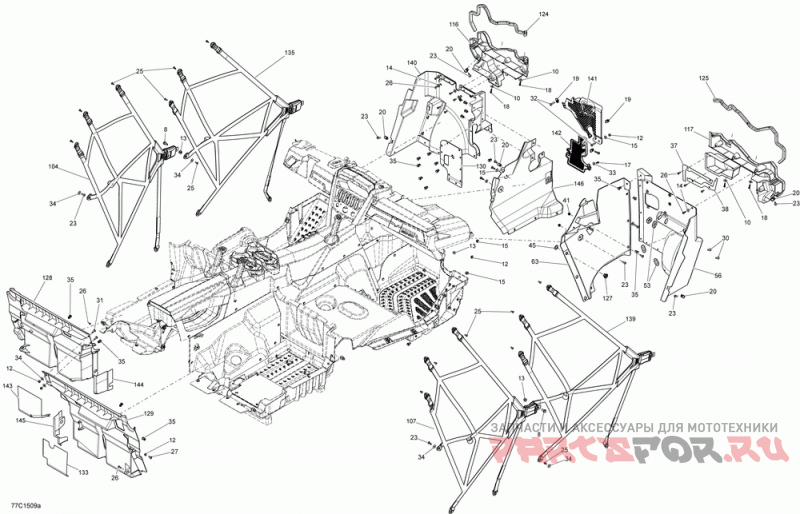

cab interior front and rear

Can-Am (Bombardier) Maverick MAX 1000_STD_XRS-DPS

Can-Am (Bombardier)
#oem кодцена
8
207682044
Hex. Flanged Screw M8 X 20 (10.000 Per Pack)
10
224060201
Flat Washer (10.000 Per Pack)
12
233261494
Hex. Elastic Flanged Nut M6 (10.000 Per Pack)
13
233281414
Гайка М8
14
234062410
Flat Washer 6 Mm (10.000 Per Pack)
15
234062670
Flat Washer (10.000 Per Pack)
17
241151640
Винт К50 Х 16
18
241152060
Hex. Flanged Screw K50 X 20 (5.000 Per Pack)
19
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
20
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
23
250000722
Torx Screw M6 X 20
25
250000145
Винт М5 Х 14
26
250000720
Torx Screw K50 X 16
27
241152060
Hex. Flanged Screw K50 X 20 (5.000 Per Pack)
30
250000712
Torx Screw M6 X 20
31
250000722
Torx Screw M6 X 20
32
250000398
Torx Truss Screw M6 X 30 (4.000 Per Pack)
33
250200025
Washer M5 (10.000 Per Pack)
34
250200040
Flat Washer (3.000 Per Pack)
35
293150089
Tuflok Plastic Rivet (25.000 Per Pack)
37
293250252
Upper Seal
38
293250253
Bottom Seal
41
293450274
Вставка
45
503189273
Rondelle *washer (25.000 Per Pack)
53
705003668
Oblong Grommet
56
707900004
Rh Front Floor
63
707900021
Console Lat. *side Dash
104
707900086
Lh Rear Safety Net
107
707900087
Rh Rear Safety Net
116
707900113
Lh Floor Support
117
707900114
Rh Floor Support
124
293200093
Neoprene Seal (8.000 Per Pack)
125
293200093
Neoprene Seal (8.000 Per Pack)
127
707900133
Вставка
128
707900220
Lh Rear Deflector
129
707900219
Rh Rear Deflector
130
707900152
Дефлектор
133
707900167
Тепловой Щит
135
707900171
Lh Safety Net
139
707900172
Rh Safety Net
140
707900175
Lh Front Upper Floor
141
707900178
Grill
142
707900180
Grill
143
707900182
Тепловой Щит
144
707900183
Тепловой Щит
145
707900184
Тепловой Щит
146
707900193
Front Side Dash Panel
