Кузовные принадлежности

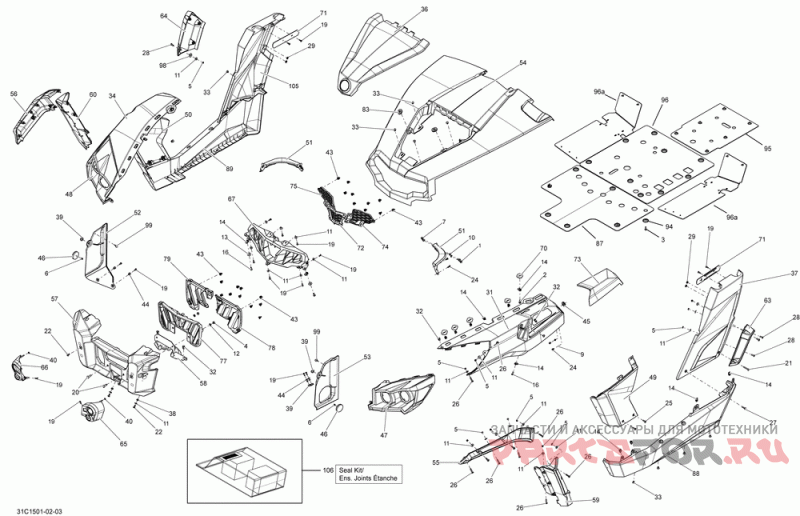

Can-Am (Bombardier) Commander 800_STD_DPS_XT

Can-Am (Bombardier)
#oem кодцена
1
207661644
Hex. Flanged Screw M6 X 16 (25.000 Per Pack)
2
207662044
Hex. Flanged Screw M6 X 20 (25.000 Per Pack)
3
210262080
Hex. Forming Screw M6 X 20 (10.000 Per Pack)
4
232081414
Hex. Nut M8 (10.000 Per Pack)
5
232561434
Гайка с тефлоном
6
233251434
Flanged Elastic Nut M5 (4.000 Per Pack)
7
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
9
234051410
Плоская Шайба М5
10
234061600
Flat Washer M6, Stainless (25.000 Per Pack)
11
234062670
Flat Washer (10.000 Per Pack)
12
234081410
Flat Washer 8 Mm (10.000 Per Pack)
13
234082410
Flat Washer 8 Mm (10.000 Per Pack)
14
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
16
250000722
Torx Screw M6 X 20
19
250000146
Truss Head Torx Screw K50 X 16 (5.000 Per Pack)
20
250000197
Torx Truss Screw M8 X 30 (6.000 Per Pack)
21
250000215
Torx Screw M6 X 45
22
250000261
Torx Screw M6 X 16 (12.000 Per Pack)
24
250000297
Винт 50 Х 20
25
250000350
Torx Truss Screw M6 X 20 (5.000 Per Pack)
26
250000371
Torx Screw M6 X 30 Stainless
27
250000398
Torx Truss Screw M6 X 30 (4.000 Per Pack)
28
250000488
Torx Truss Screw M6 X 20 Model-xt Except Europe (2.000 Per Pack)
31
705006768
Camo Lh Front Fender Model-camo
31
705006774
White Lh Front Fender Model-white
31
705008194
Yellow Lh Front Fender Model-xt/dps Yellow
31
705008196
Viper Red Lh Front Fender Model-red
31
705008232
Quarry Gray Lh Front Fender Model-quarry Gray
32
293150089
Tuflok Plastic Rivet (25.000 Per Pack)
33
293150104
Поп Заклепки 3/16"
34
705006769
Camo Rh Front Fender Model-camo
34
705006775
White Rh Front Fender Model-white
34
705008195
Yellow Rh Front Fender Model-xt/dps Yellow
34
705008197
Viper Red Rh Front Fender Model-red
34
705008233
Quarry Gray Rh Front Fender Model-quarry Gray
36
705007075
Camo Removable Hood Model-camo
36
705007077
White Removable Hood Model-white
36
705008184
Yellow Removable Hood Model-xt/dps Yellow
36
705008185
Viper Red Removable Hood Model-red
36
705008237
Quarry Gray Removable Hood Model-quarry Gray
37
705006122
Camo Lh Rear Lateral Pannel Model-camo
37
705006744
White Lh Rear Lateral Pannel Model-white
37
705007864
Yellow Lh Rear Lateral Panel Model-xt/dps Yellow
37
705007874
Viper Red Lh Rear Lateral Panel Model-red
37
705008369
Quarry Gray Lh Rear Lateral Panel Model-quarry Gray
38
293450274
Вставка
39
293720053
Grommet (10.000 Per Pack)
40
389804300
Гайка
43
517302785
Clip (10.000 Per Pack)
44
517303439
Knob (6.000 Per Pack)
45
517303756
Втулка
46
705002409
Amber Reflector
47
705002885
Lh Front Facia
48
705002886
Rh Front Facia
49
705006037
White Lh Front Lateral Pannel Model-white
49
705006378
Camo Lh Front Lateral Pannel Model-camo
49
705007846
Yellow Lh Front Lateral Pannel Model-xt/dps Yellow
49
705007851
Viper Red Lh Front Lateral Pannel Model-red
49
705008239
Quarry Gray Lh Front Lateral Pannel Model-quarry Gray
50
705006059
White Rh Front Lateral Pannel Model-white
50
705006379
Camo Rh Front Lateral Pannel Model-camo
50
705007845
Yellow Rh Front Lateral Pannel Model-xt/dps Yellow
50
705007852
Viper Red Rh Front Lateral Pannel Model-red
50
705008240
Quarry Gray Rh Front Lateral Pannel Model-quarry Gray
51
705002891
Facia Front Support
52
705002894
Резус Дефлектор
53
705002895
Lh Deflector Model-std, Dps
53
705005113
Lh Deflector Model-xt
54
705004380
Camo Fixed Hood Model-camo
54
705006036
White Fixed Hood Model-white
54
705008187
Yellow Fixed Hood Model-xt/dps Yellow
54
705008188
Viper Red Fixed Hood Model-red
54
705008235
Quarry Gray Fixed Hood Model-quarry Gray
55
705008666
Lh Black Upper Front Mudguard Package Xt/xtp
56
705008667
Rh Black Upper Front Mudguard Package Xt/xtp
57
705008689
Black Front Facia Model-std Europe
57
705008690
Black Front Facia Model-xt/xtp Except Europe
58
705003399
Bottom Deflector
59
705008668
Lh Lower Black Mudguard
60
705008669
Rh Lower Black Mudguard
63
705008670
Lh Rear Lower Black Mudguard
64
705008672
Rh Rear Lower Black Mudguard
65
705008676
Enjoliveur *cap Model Europe
66
705008677
Rh Flasher Cap Model Europe
67
705003629
Upper Facia, Black
70
705003841
Опорная Плита
71
705007916
Support Skid Plate
72
705004336
Center Upper Facia Protector
73
705004382
Camo Cvt Inlet Cover Model-camo
73
705006054
White Cvt Inlet Cover Model-white
73
705008190
Yellow Cvt Inlet Cover Model-xt/dps Yellow
73
705008191
Viper Red Cvt Inlet Cover Model-red
73
705008234
Quarry Gray Cvt Inlet Cover Model-quarry Gray
74
705004350
Lh Upper Facia Protector
75
705004351
Rh Upper Facia Protector
77
705004755
Lower Front Facia Protector
78
705004819
Lh Lower Rear Facia Protector
79
705004820
Rh Lower Rear Facia Protector
83
705005156
Oval Washer
87
705007055
Middle Protector Plate
88
705006991
Lh Lateral Middle Panel Model-std, Dps
88
705006993
Lh Middle Side Pannel Model-xt
89
705006992
Rh Lateral Middle Panel Model-std, Dps
89
705006994
Rh Middle Side Pannel Model-xt
94
705007171
Крышка крыльчатки
95
705007227
Rear Protector Plate
96
705007056
Rear Protector Plate
96a
705007038
Lateral Skid Plate
98
250200086
Шайба
99
708000759
Резиновые стопоры
105
705006123
Camo Rh Rear Lateral Pannel Model-camo
105
705006745
White Rh Rear Lateral Pannel Model-white
105
705007865
Yellow Rh Rear Lateral Panel Model-xt/dps Yellow
105
705007875
Viper Red Rh Rear Lateral Panel Model-red
105
705008370
Quarry Gray Rh Rear Lateral Panel Model-quarry Gray
