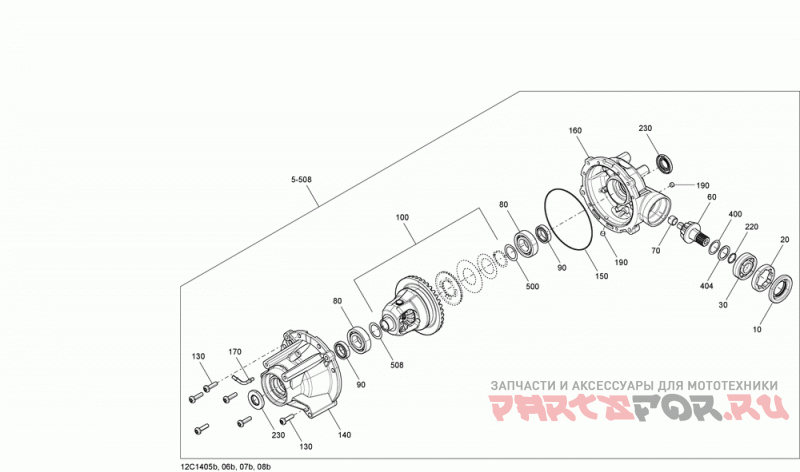

07- drive system, front (differential)

Can-Am (Bombardier) Maverick 1000, XXC

Can-Am (Bombardier)
#oem кодцена
5
705401488
Differentiel *differential (xxc )
10
705400027
Joint Etanche *oil Seal (xxc )
20
705400661
Ecrou *nut (xxc )
30
705500260
Roulement Bille*ball Bearing (xxc )
60
705501588
Engrenage 10 D *pinion 10 Th. (xxc )
70
705500261
Roulement Aigui*needle Bearing (xxc )
80
705500259
Roulement Bille*ball Bearing (xxc )
90
293350044
Roulement Bille*ball Bearing (xxc )
100
705400822
Differentiel *differential (xxc )
130
705500892
Vis *screw (xxc )
140
705400762
Couvercle Avant*cover-front (xxc )
150
705500265
Anneau Etanche *seal (xxc )
160
705401136
Couvercle Avant*front Cover (xxc )
170
705500893
Soupape Ventil *valve-vent (xxc )
190
705500894
Bouchon Vidange*plug-drain (xxc )
220
705500267
Joint Torique *o-ring (xxc )
230
705500255
Joint Etanche *oil Seal (xxc )
400
703500049
Ens. Cale Pini*pinion Shim Kit (xxc )
404
705501162
Cale Epaisseur *shim-pinion Gear (xxc )
500
703500288
Ens. Cale Diff*differential Shim Kit (xxc )
508
703500050
Ens. Cale Diff*differential Shim Kit (xxc )
