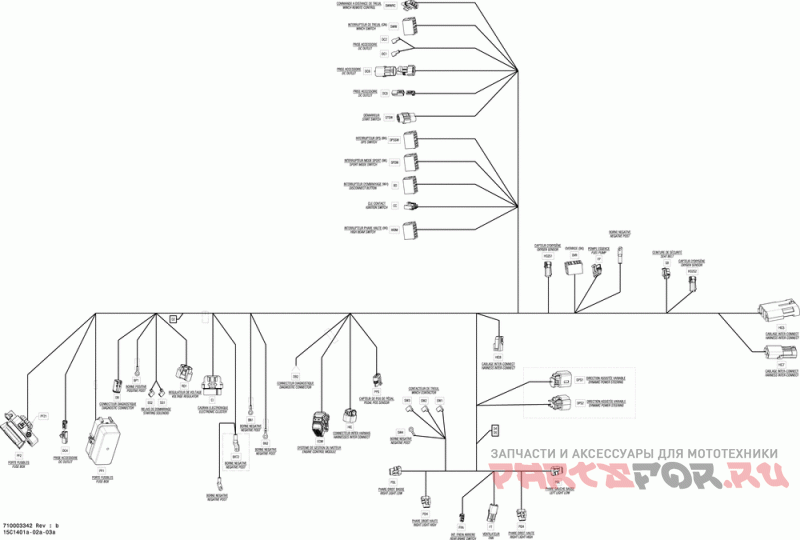

10- electrical system all models

Can-Am (Bombardier) Commander 1000 STD, DPS, XT, XT-P

Can-Am (Bombardier)
#oem кодцена
1
205003044
Screw-socket Hd.din.912 (2.000 Per Pack)
3
205082044
Screw-socket Hd.din.912 (10.000 Per Pack)
4
207141044
Screw-hex.cap Din.933 (10.000 Per Pack)
5
207142544
Screw-hex.cap Din.933 (4.000 Per Pack)
6
207361644
Screw-hex.cap Din.933 S.grip (25.000 Per Pack)
7
207561644
Screw-hex.flange Din.6921 S.grip (25.000 Per Pack)
8
207661644
Screw-hex.flange Din.6921 (25.000 Per Pack)
9
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
10
207663034
Screw-hex.flange Din.6921 (5.000 Per Pack)
11
210251680
Screw-forming Hex.hd.fl.gm6174m (10.000 Per Pack)
12
232061600
Nut-hexagonal Din.934a2 (5.000 Per Pack)
13
232541414
Гайка-стоп
14
715900265
Bouton *button
16
232561434
Гайка с тефлоном
17
232561434
Гайка с тефлоном
18
233061414
Nut-flange Hexagonal Din.6927 (10.000 Per Pack)
19
233201414
Nut-flange Elastic Din.6926 (10.000 Per Pack)
21
233261414
Nut-flange Elastic Din.6926 (10.000 Per Pack)
23
234051410
Washer-flat Din.125a (10.000 Per Pack)
24
234061410
Washer-flat M6 Din.125a (10.000 Per Pack)
25
234062410
Washer-flat Din.9021b (10.000 Per Pack)
26
234141601
Washer-lock Helical Din.127b-a2 (5.000 Per Pack)
27
234151401
Washer-lock Helical Din.127b (10.000 Per Pack)
28
234161601
Washer-lock Helical Din.127b-a2 (5.000 Per Pack)
29
234181401
Washer-lock Din.127b (50.000 Per Pack)
30
234461608
Washer-lock Serrated Din.6798a-a2 (5.000 Per Pack)
31
241154540
Ind.hex.washer Head Pt.screw K50 X 45 (4.000 Per Pack)
33
250000084
Phil-truss Pt Gm6047m K40 X 16 (5.000 Per Pack)
35
250000146
Torx-screw Truss Head Pt.k50x16 (5.000 Per Pack)
36
250000223
Torx-truss M/s Gm6047m Nylon Patch (5.000 Per Pack)
38
250000284
Torx-truss M/s M6 X 25 Gm6047m
43
250400021
Палец
44
250400022
Goupille Fendue*cotter Pin (25.000 Per Pack)
45
270000141
Clip *clip (5.000 Per Pack)
46
278000281
Bloc 3 Circ.fem*housing-tab (5.000 Per Pack)
47
278002704
Capuchon *connect-cap
48
293150103
Rivet-pop 3/16 *pop Rivet 3/16 (25.000 Per Pack)
49
293450274
Вставка
50
293730040
Шуруп
51
293750008
Tie Rap 368mm *tie-rap 368mm (10.000 Per Pack)
113
293750009
Tie Rap 173mm *tie-rap 173mm (5.000 Per Pack)
121
390402400
Rivet-pop 3/16 *rivet-pop 3/16 (50.000 Per Pack)
122
414115200
Tie Rap 188mm *tie-rap 188mm (50.000 Per Pack)
129
414227300
Clip - Spring (10.000 Per Pack)
131
410301203
Batterie Ytx20l*battery18amps(wet Gel)
132
704901270
Наклейка
133
704902614
Etiq. Clignotan*label Flasher
134
705002329
Крюк
135
705003944
Лебедка
137
715001119
Guide *cable Guide
139
709200284
Суппорт
140
709400810
Суппорт
141
710000983
Клаксон
142
710000992
Зажим
143
710001023
Connec. Treuil *winch Connec.
146
710001059
Connec Ass E *connector Ass
147
710001081
Logement Avbd *housing Flrh
147
710001083
Logement Avbg *housing Fllh
148
710001082
Logement Arbd *housing Rlrh
148
710001084
Logement Arbg *housing Rlgh
151
710001085
Logement Avhd *housing Fhrh
151
710001087
Logement Avhg *housing Fhgh
152
710001086
Logement Arhd *housing Rhgh
152
710001088
Logement Arhg *housing Rhgh
155
710001094
Sup Lumire Bdr*light Sup Lrh
155
710001037
Sup Lumire Bga*light Sup Llh
156
710001115
Support Hd *light Sup Hr
156
710001036
Sup Lumire Hg *light Sup Hl
157
710001147
Vis Ajust. *setting Screw
159
710001183
Anneau Cadran *trim Ring
160
710001191
Regulateur *regulator
161
710001248
Дополнительная розетка DC
162
710001364
Solenoide Dem. *relay-starter
163
710001645
Feu Arriere *tail Light (includes 163a )
164
710001721
Bras Clignotant*turn Signal Le
166
710001726
Lumire De Jour*day Light
167
710001737
Датчик
168
710001781
Inter Dps *inter Dps (model- Dps )
169
710001916
Attache Batteri*battery Holder
170
710001999
Крышка
171
710002047
Clignotant *flasher
175
710002052
Interruptteur *switch
176
710002053
Interupteur *switch
177
710002055
Lumiere Immatri*licence Light (includes 177a )
179
710001725
Inter Hi Low *inter Hi Low (except Model- Europe )
179
710002076
Interrupteur *switch (model- Europe )
180
710003922
Solenoide *solenoid
181
710002146
Cable Positif *cable-positive
182
710002148
Cable Positif *cable-positive (model- Dps, Std )
183
710002159
Cable Positif *cable-positive (model- Xt, Xtp )
184
710002214
Cable Negatif *negative Cable
185
710002216
Cables Treuil *winch Cables
186
710002220
Cablage Arrire*rear Harness
187
710002327
Inter Allumage *ignition
188
710002408
Суппорт
189
710002524
Phare Basse *low Beam (includes 189a )
190
710002525
Phare Haute *high Beam (includes 190a )
201
710002594
Bouton Demarrag* Start Bouton
214
710003008
Cablage Ass. *harness-assy.
216
710003129
Support Batteri*battery Suppor
218
710003219
Cablage Arrire*rear Harness (except Model- Europe )
218
710003220
Cablage Arrire*rear Harness (model- Europe )
220
710003239
Unit Cligno. *flasher Unit
221
710003335
Support Fusible*fuse Holder
224
710003342
Cablage Ass. *harness-assy.
237
710003532
Indicateur *speedometer (model- Xt, Xtp )
238
710003541
Inter Pps Sport*switch Sport
300
415129355
Bouton Indica*button Speedometer
301
415129348
Anneau Cadran *ring-gauge
302
415129349
Lentille *lens
163a
520000758
Ampoule *bulb (10.000 Per Pack)
177a
219800128
Ampoule *bulb
189a
415129249
Ampoule Halogen*bulb-hal.hb3
190a
415129249
Ampoule Halogen*bulb-hal.hb3
