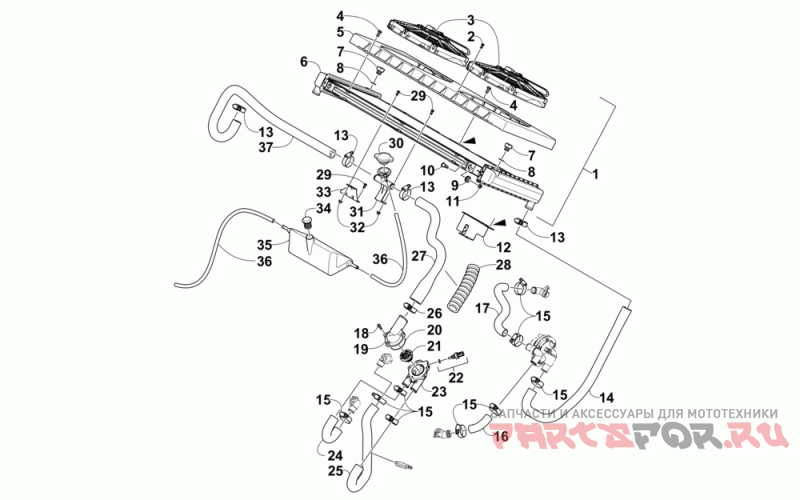

Охлаждение

Arctic Cat WILDCAT 4X

Arctic Cat
#oem кодцена
1
0413-278
Radiator - Assembly (inc. 2-9)
2
8470-510
Screw, Mach-tspnh M5x.8x10 Cl8.8 Z&y (5 Per Pack)
3
0413-123
Fan, Radiator
4
8017-579
Screw, Mach-tstrh 1/4-20x.625 G2 Z&y (5 Per Pack)
5
0413-292
Shroud, Fan
6
0413-293
Radiator - Fabricated
7
0413-195
Plug, Drain-radiator
8
1602-213
Кольцо (2 шт в упаковке)
9
0423-030
Grommet(lv 11378)
10
0423-484
Bolt, Shoulder-9.6x9.55xm6 Blk (4 Per Pack)
11
0623-038
Гайка (отпуск.по 5 шт)
12
2416-966
Bracket, Coil Mounting
13
0423-632
Clamp, Hose #5 Micro-gear Size 05 (2 Per Pack)
14
0410-300
Hose, Coolant
15
0423-496
Clamp, Hose- Worm 19-38mmx12.7mm
16
0410-115
Hose, Coolant-#1 Cold
17
0410-116
Hose, Coolant-#2 Cold
18
8470-520
Screw, Mach-tspnh M5x.8x20 Cl8.8 Z&y (4 Per Pack)
19
0808-092
Крышка термостата
20
0830-173
Oring, Id44.12 X Cs2.62
21
0808-093
Thermostat, 71 Deg (final)
22
0808-124
Sensor, Water Temp.-assy
23
0808-189
Housing, Thermostat-machining
24
0410-191
Hose, Coolant-rear
25
0410-253
Hose, Coolant - 4
26
1623-093
Clamp, Band-sae #20 (2 Per Pack)
27
0410-239
Hose, Coolant-3
28
1619-038
Protector, Hose-1.27 X 1.06 X 7.00"
29
8475-512
Screw, Mach-tstrh M5x0.8x12 Z&clr (2 Per Pack)
30
0413-255
Крышка радиатора
31
0413-280
Filler Neck, Radiator
32
8427-502
Nut, Hex Flg-nyl Lock M5x0.8 Cl8 Z&y (10 Per Pack)
33
2416-976
Bracket, Overflow Bottle
34
0413-087
Stopper, Coolant
35
0413-300
Bottle, Overflow
36
0610-011
Hose, Oilline 5/16x25'
37
0410-237
Hose, Coolant-1
