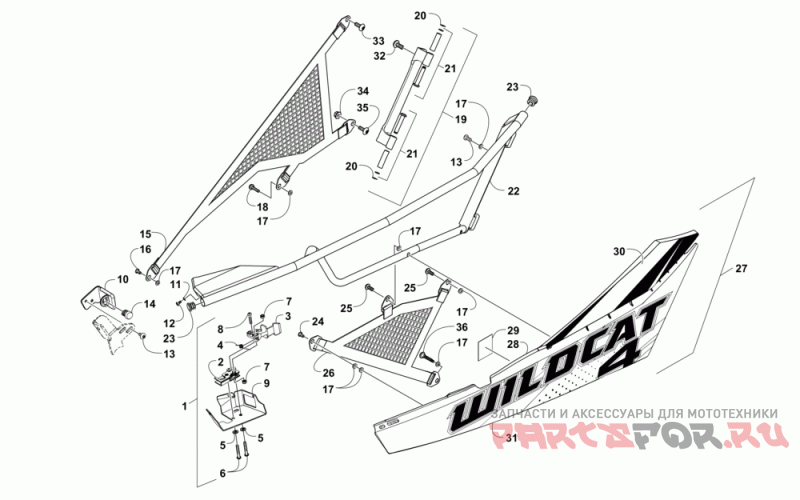

Front door assembly

Arctic Cat WILDCAT 4X WHITE

Arctic Cat
#oem кодцена
1
2436-266
Kit, Latch-door-fr-rh-assy (wc 4x) (inc. 2-9)
1
2436-267
Kit, Latch-door-fr-lh-assy (wc 4x) (inc. 2-9)
2
4406-908
Latch, Rotary-rh
2
4406-909
Latch, Rotary-lh
3
4406-999
Handle, Door
4
1423-235
Spring, Latch Handle
5
8051-213
Washer, Spr Lock-1/4 Blk (8 Per Pack)
6
1423-232
Screw, Button Head Torx Blk M6x1.0x40 (2 Per Pack)
7
1423-153
Hex Nylon Nut Cl8 Blk Zinc M6(din 985) (2 Per Pack)
8
1423-231
Screw, Button Head Torx Blk M6x1.0x30
9
4406-796
Brkt, Door Latch-rh
9
4406-797
Brkt, Door Latch-lh
10
4406-792
Striker, Door-rh
10
4406-793
Striker, Door-lh
11
1423-283
Washer, Lock-blk M5 (3 Per Pack)
12
1423-282
Screw, Button Head Torx Blk M5x0.8x10 (3 Per Pack)
13
1423-113
Screw, Cap Button Head Torx Blk M6-1x10 (4 Per Pack)
14
4406-419
Bumper, Door Stopper
15
4406-304
Net, Fabric-upper
16
1423-157
Bolt, Shoulder-m6x1.0x25mm (2 Per Pack)
17
8050-223
Washer, Flat (std) 1/4 Dia Blk (4 Per Pack)
18
1423-186
Bolt, Shoulder-m5x0.8x25mm (2 Per Pack)
19
1436-476
Hinge-door-rh-assy (inc. 20-21)
19
1436-454
Hinge-door-lh-assy (inc. 20-21)
20
1423-118
Circlip Blk Magni 575 Coating (8mm)
21
0518-096
Kit, Door Hinge Pin
22
5506-930
Frame, Door-rh-blk
22
5506-931
Frame, Door-lh-blk
23
4406-013
Cap, Plastic (2 Per Pack)
24
1423-196
Bolt, Shoulder-m6 X 1.0 X 12mm Lg (2 Per Pack)
25
1423-197
Bolt, Shoulder-m6 X 1.0 X 25mm Lg (3 Per Pack)
26
4406-305
Net, Fabric-lower
27
0518-196
Door, Panel W/ Decals-wm-frt-rh(wc4 X 15) (inc. 28 And 30-31)
27
0518-197
Door, Panel W/ Decals-wm-frt-lh(wc4 X 15) (inc. 28-31)
28
4406-788
Panel, Door Skin-rh-blk
28
0518-243
Door, Panel W/ Warning Decal-18 Psi-lh (inc. 29)
29
4411-105
Decal, Warning-tire Pressure (18 Psi)
30
4411-256
Decal, Door Upper Rr-rh (wm)
30
4411-257
Decal, Door Upper Rr-lh (wm)
31
4411-568
Decal, Front Door Lwr-rh-(wm)
31
4411-569
Decal, Front Door Lwr-lh-(wm)
32
0423-817
Screw, Mach-tstrh M8x1.25x20 Cl8.8 W/lock (4 Per Pack)
33
0423-355
Винт m6-1.0 X 18-blk (отпускается по 4 шт )
34
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
35
0826-029
Screw, Mach-tsph M6 X1x12 W/ Thd Lock
36
1423-205
Screw, Shoulder-m6 X 1.0 X 35-blk (2 Per Pack)
