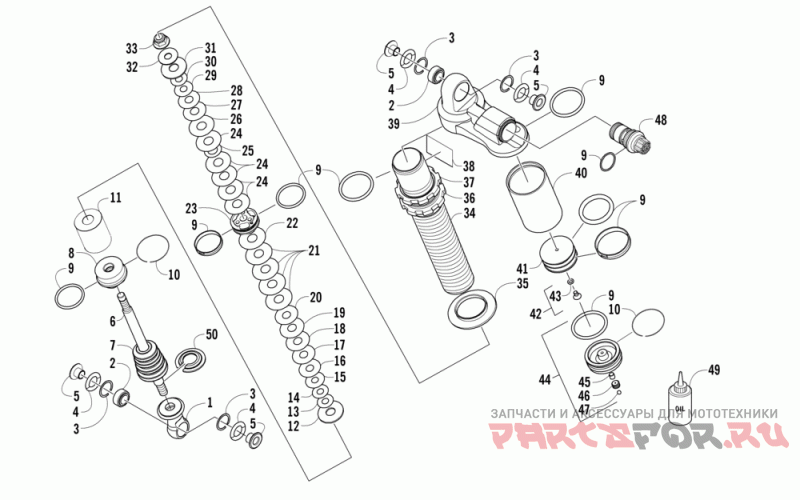

Передний амортизатор

Arctic Cat WILDCAT X RED

Передний амортизатор

#

oem код

название

цена

Shock, Front (fox)

Shock, Front (fox)

1

Eyelet, Shock-5/8-18 Unf X 2.10 Lg

Eyelet, Shock-5/8-18 Unf X 2.10 Lg

2

Bearing, Spherical

Bearing, Spherical

3

Retaining Ring, Internal Spiral

Retaining Ring, Internal Spiral

4

O-ring, Shock Spacer (4 Per Pack)

O-ring, Shock Spacer (4 Per Pack)

5

Spacer, Front Shock Mount

Spacer, Front Shock Mount

6

Shaft, Chrome-.620 Od X 13.90" Tlg

Shaft, Chrome-.620 Od X 13.90" Tlg

7

Bumper, .620 Shaft X 2.350" Tlg

Bumper, .620 Shaft X 2.350" Tlg

8

Bearing, Cap Assy-1.834 Bore X .620 Shaft

Bearing, Cap Assy-1.834 Bore X .620 Shaft

9

Shock, Seal Rebuild Kit-fox

Shock, Seal Rebuild Kit-fox

10

Retainer, .062x1.850 Id Endcap

Retainer, .062x1.850 Id Endcap

11

Spacer, Shaft-.630 Id X 1.500 Od X 1.500

Spacer, Shaft-.630 Id X 1.500 Od X 1.500

12

Washer, Topout-1.570od X .500id X .128th

Washer, Topout-1.570od X .500id X .128th

13

Valve, .900 Od X .504 Id X .012 Th

Valve, .900 Od X .504 Id X .012 Th

14

Valve, .950 Od X .504 Id X .012 Th

Valve, .950 Od X .504 Id X .012 Th

15

Valve, 1.100 Od X .504 Id X .012 Th

Valve, 1.100 Od X .504 Id X .012 Th

16

Valve, 1.250 Od X .504 Id X .012 Th

Valve, 1.250 Od X .504 Id X .012 Th

17

Valve, 1.350 Od X .504 Id X .012 Th

Valve, 1.350 Od X .504 Id X .012 Th

18

Valve, 1.425 Od X .504 Id X .012 Th

Valve, 1.425 Od X .504 Id X .012 Th

19

Valve, 1.600 Od X .504 Id X .012 Th

Valve, 1.600 Od X .504 Id X .012 Th

20

Valve, 1.250 Od X .504 Id X .004 Th

Valve, 1.250 Od X .504 Id X .004 Th

21

Valve, 1.600 Od X .504 Id X .008 Th

Valve, 1.600 Od X .504 Id X .008 Th

22

Valve, Db 1.600 Od X .504 Id X .006 Th

Valve, Db 1.600 Od X .504 Id X .006 Th

23

Piston, Damping-4port-1.834" Bore Fox

Piston, Damping-4port-1.834" Bore Fox

24

Valve, 1.425 Od X .504 Id X .008 Th

Valve, 1.425 Od X .504 Id X .008 Th

25

Valve, .750 Od X .504 Id X .008 Th

Valve, .750 Od X .504 Id X .008 Th

26

Valve, 1.350 Od X .504 Id X .008 Th

Valve, 1.350 Od X .504 Id X .008 Th

27

Valve, 1.250 Od X .504 Id X .008 Th

Valve, 1.250 Od X .504 Id X .008 Th

28

Valve, 1.100 Od X .504 Id X .008 Th

Valve, 1.100 Od X .504 Id X .008 Th

29

Valve, .950 Od X .504 Id X .008 Th

Valve, .950 Od X .504 Id X .008 Th

30

Valve, .800 Od X .504 Id X .008 Th

Valve, .800 Od X .504 Id X .008 Th

31

Washer, Top Out-1.230 X .504 X.082

Washer, Top Out-1.230 X .504 X.082

32

Washer, Backup-.750 Od X .503 Id X .100th

Washer, Backup-.750 Od X .503 Id X .100th

33

Nut, Center Lock-1/2-20 Gr A

Nut, Center Lock-1/2-20 Gr A

34

Body, Shock-1.834 Bore X 13.100 Tlg

Body, Shock-1.834 Bore X 13.100 Tlg

35

Adapter, Spring

Adapter, Spring

36

Nut, Preload-shock

Nut, Preload-shock

37

Nut, Preload Jam-shock

Nut, Preload Jam-shock

38

Decal, Fox Podium

Decal, Fox Podium

39

Body, Cap-assy-pigback-1.834bore X.998

Body, Cap-assy-pigback-1.834bore X.998

40

Reservoir, 1.834 Bore X 6.00 Tlg

Reservoir, 1.834 Bore X 6.00 Tlg

41

Piston, Floating-assy-1.834 Bore (inc. 42-43)

Piston, Floating-assy-1.834 Bore (inc. 42-43)

42

Screw, Relief W/ O-ring (inc. 43)

Screw, Relief W/ O-ring (inc. 43)

43

O-ring(fox Only)

O-ring(fox Only)

44

End Cap, Reservoir-assy 1.834 Bore (inc. 45-47)

End Cap, Reservoir-assy 1.834 Bore (inc. 45-47)

45

Plug, Rubber - Valve

Plug, Rubber - Valve

46

Screw, Set-3/8-24 X .25"

Screw, Set-3/8-24 X .25"

47

Ball, Air Valve (.219 Od) - (float)

Ball, Air Valve (.219 Od) - (float)

48

Damping Adjust-assy

Damping Adjust-assy

49

Semi-syn Shock Oil-1 Quart (6 Per Pack)

Semi-syn Shock Oil-1 Quart (6 Per Pack)

50

Держатель пружинок

Держатель пружинок
