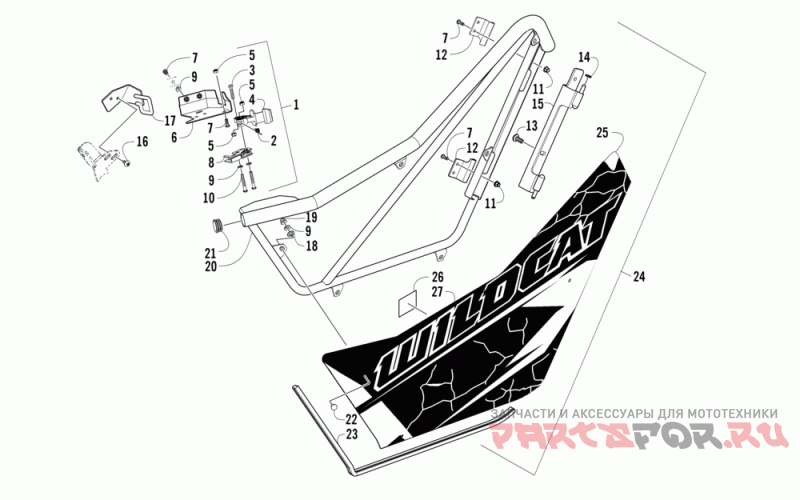

Door assembly

Arctic Cat WILDCAT X LTD RED

Arctic Cat
#oem кодцена
1
2436-260
Kit, Latch-door-fr-rh-assy(wc X Ltd) (inc. 2-10)
1
2436-261
Kit, Latch-door-fr-lh-assy (wc X Ltd) (inc. 2-10)
2
1423-235
Spring, Latch Handle
3
1423-231
Screw, Button Head Torx Blk M6x1.0x30
4
4406-999
Handle, Door
5
1423-153
Hex Nylon Nut Cl8 Blk Zinc M6(din 985) (2 Per Pack)
6
4406-452
Brkt, Door Latch-rh
6
4406-453
Brkt, Door Latch-lh
7
8468-616
Screw, Mach-tspnh M6x1.0x16 Cl8.8 Blk (4 Per Pack)
8
4406-908
Latch, Rotary-rh
8
4406-909
Latch, Rotary-lh
9
8051-213
Washer, Spr Lock-1/4 Blk (8 Per Pack)
10
1423-232
Screw, Button Head Torx Blk M6x1.0x40 (2 Per Pack)
11
1423-171
Nut, Flg Lock-nylon Sl M6-1.0 Cl8 Z&b (2 Per Pack)
12
4406-447
Hinge, Weldt-2
12
4406-446
Hinge, Weldt-1
13
0423-817
Screw, Mach-tstrh M8x1.25x20 Cl8.8 W/lock (4 Per Pack)
14
1423-224
Bushing, Door Hinge (2 Per Pack)
15
5506-490
Hinge, Main Weldt-rh
15
5506-491
Hinge, Main Weldt-lh
16
0826-029
Screw, Mach-tsph M6 X1x12 W/ Thd Lock
17
4406-450
Striker, Door-rh
17
4406-451
Striker, Door-lh
18
1423-264
Washer, Flat-18x6.4x1.6-blk (6 Per Pack)
19
1423-263
Nut, Hex Acorn M6-1.0 Blk (6 Per Pack)
20
5506-488
Frame, Door-rh-blk
20
5506-489
Frame, Door-lh-blk
21
1423-234
Cap, Plastic-1.25" Tube (2 Per Pack)
22
1423-233
Bolt, Carriage Cl8.8 Blk M6x1.0x16 (6 Per Pack)
23
4406-455
Trim, Door Seal
24
0518-158
Door, Panel W/decals-vr-rh (wc X Ltd) (inc. 25 And 27)
24
0518-159
Door, Panel W/decals-vr-lh (wc X Ltd) (inc. 25-27)
25
4406-444
Panel, Door Skin-rh-blk Black
25
0518-241
Door, Panel W/ Warning Decal-16 Psi-lh Black (inc. 26)
26
3411-249
Decal, Warning-tire Pressure-w4
27
3411-992
Decal, Door Rh-vr
27
3411-993
Decal, Door Lh-vr
