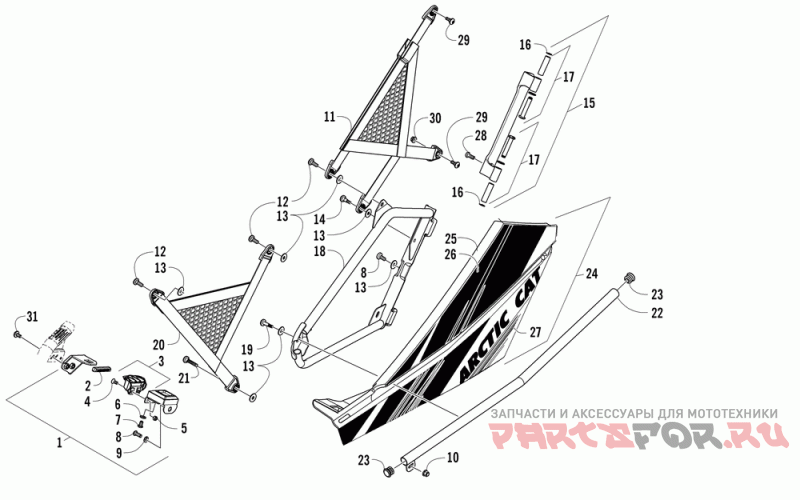

Rear door assembly

Arctic Cat Wildcat 4

Arctic Cat
#oem кодцена
1
1436-802
Kit, Buckle-rear-rh-assy (inc. 2-10)
1
1436-803
Kit, Buckle-rear-lh-assy (inc. 2-10)
2
4406-262
Bumper, Latch (2 Per Pack)
3
1436-475
Tongue Guide-door-assy
4
1423-155
Sfh Screw Blk Cl10.9 M5x12 (iso 10642) (4 Per Pack)
5
1423-154
Hex Nylon Nut Cl8 Blk Zinc M5 (din 985) (4 Per Pack)
6
8051-213
Washer, Spr Lock-1/4 Blk (8 Per Pack)
7
8468-616
Screw, Mach-tspnh M6x1.0x16 Cl8.8 Blk (4 Per Pack)
8
1423-113
Screw, Cap Button Head Torx Blk M6-1x10 (4 Per Pack)
9
1423-119
Flat Washer Blk Magni 575 Coating M6 (4 Per Pack)
10
1423-171
Nut, Flg Lock-nylon Sl M6-1.0 Cl8 Z&b (2 Per Pack)
11
4406-260
Net, Fabric-upper-rear
12
1423-196
Bolt, Shoulder-m6 X 1.0 X 12mm Lg (2 Per Pack)
13
8050-223
Washer, Flat (std) 1/4 Dia Blk (4 Per Pack)
14
1423-187
Bolt, Shoulder-m5x0.8x17mm (2 Per Pack)
15
1436-476
Hinge-door-rh-assy
15
1436-454
Hinge-door-lh-assy (inc. 16-17)
16
1423-118
Circlip Blk Magni 575 Coating (8mm)
17
0518-096
Kit, Door Hinge Pin
18
5506-200
Frame, Rear Door-rh-black
18
5506-201
Frame, Rear Door-lh-black
19
1423-192
Bolt, Shoulder-m5x0.8x23mm (2 Per Pack)
20
4406-261
Net, Fabric-lower-rear
21
1423-205
Screw, Shoulder-m6 X 1.0 X 35-blk (2 Per Pack)
22
5506-204
Tube, Rear Door Frame-rh-black
22
5506-205
Tube, Rear Door Frame-lh-black
23
4406-013
Cap, Plastic (2 Per Pack)
24
0518-100
Door, Rear-w/decals-bm-rh (inc. 25-27) (1pusq/1posq)
24
0518-101
Door, Rear-w/decals-bm-lh (inc. 25-27) (1pusq/1posq)
24
0518-102
Door, Rear-w/decals-agm-rh (inc. 25-27) (1pusa/1posa)
24
0518-103
Door, Rear-w/decals-agm-lh (inc. 25-27) (1pusa/1posa)
24
0518-104
Door, Rear-w/decals-so-rh (inc. 25-27) (1pusu/1posu)
24
0518-105
Door, Rear-w/decals-so-lh (inc. 25-27) (1pusu/1posu)
25
4406-256
Panel, Rear Door-rh
25
4406-257
Panel, Rear Door-lh
26
3411-316
Decal, Rear Door-up-wc4-blk-rh (1pusq/1posq)
26
3411-317
Decal, Rear Door-up-wc4-blk-lh (1pusq/1posq)
26
3411-278
Decal, Rear Door-up-wc4-agm-rh (1pusa/1posa)
26
3411-279
Decal, Rear Door-up-wc4-agm-lh (1pusa/1posa)
26
3411-298
Decal, Rear Door-up-wc4-sso-rh (1pusu/1posu)
26
3411-299
Decal, Rear Door-up-wc4-sso-lh (1pusu/1posu)
27
3411-318
Decal, Rear Door-lwr-wc4-blk-rh (1pusq/1posq)
27
3411-319
Decal, Rear Door-lwr-wc4-blk-lh (1pusq/1posq)
27
3411-280
Decal, Rear Door-lwr-wc4-agm-rh (1pusa/1posa)
27
3411-281
Decal, Rear Door-lwr-wc4-agm-lh (1pusa/1posa)
27
3411-300
Decal, Rear Door-lwr-wc4-sso-rh (1pusu/1posu)
27
3411-301
Decal, Rear Door-lwr-wc4-sso-lh (1pusu/1posu)
28
0423-817
Screw, Mach-tstrh M8x1.25x20 Cl8.8 W/lock (4 Per Pack)
29
0423-355
Винт m6-1.0 X 18-blk (отпускается по 4 шт )
30
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
31
0826-029
Screw, Mach-tsph M6 X1x12 W/ Thd Lock
