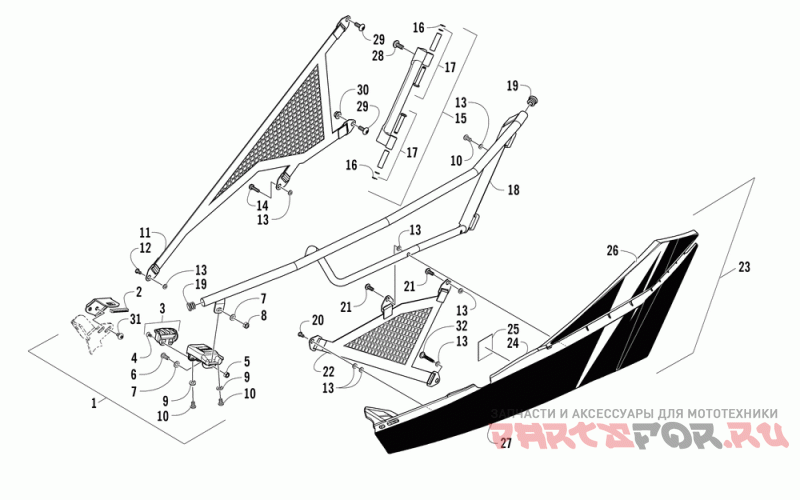

Front door assembly

Arctic Cat Wildcat 4

Arctic Cat
#oem кодцена
1
1436-800
Kit, Buckle-rh-assy (inc. 2-10)
1
1436-801
Kit, Buckle-lh-assy (inc. 2-10)
2
4406-262
Bumper, Latch (2 Per Pack)
3
1436-475
Tongue Guide-door-assy
4
1423-155
Sfh Screw Blk Cl10.9 M5x12 (iso 10642) (4 Per Pack)
5
1423-154
Hex Nylon Nut Cl8 Blk Zinc M5 (din 985) (4 Per Pack)
6
8468-616
Screw, Mach-tspnh M6x1.0x16 Cl8.8 Blk (4 Per Pack)
7
1423-119
Flat Washer Blk Magni 575 Coating M6 (4 Per Pack)
8
1423-153
Hex Nylon Nut Cl8 Blk Zinc M6(din 985) (2 Per Pack)
9
8051-213
Washer, Spr Lock-1/4 Blk (8 Per Pack)
10
1423-113
Screw, Cap Button Head Torx Blk M6-1x10 (4 Per Pack)
11
4406-304
Net, Fabric-upper
12
1423-206
Bolt, Shoulder-m5 X 0.8 X 15mm (2 Per Pack)
13
8050-223
Washer, Flat (std) 1/4 Dia Blk (4 Per Pack)
14
1423-186
Bolt, Shoulder-m5x0.8x25mm (2 Per Pack)
15
1436-476
Hinge-door-rh-assy
15
1436-454
Hinge-door-lh-assy (inc. 16-17)
16
1423-118
Circlip Blk Magni 575 Coating (8mm)
17
0518-096
Kit, Door Hinge Pin
18
5506-174
Frame, Door-rh-black
18
5506-175
Frame, Door-lh-black
19
4406-013
Cap, Plastic (2 Per Pack)
20
1423-196
Bolt, Shoulder-m6 X 1.0 X 12mm Lg (2 Per Pack)
21
1423-197
Bolt, Shoulder-m6 X 1.0 X 25mm Lg (3 Per Pack)
22
4406-305
Net, Fabric-lower
23
0518-060
Door, W/decals-bm-rh (inc. 24 And
23
0518-083
Door, W/decals-bm-lh (inc. 24-27) (1pusq/1posq)
23
0518-098
Door, W/decals-agm-rh (inc. 24 And
23
0518-099
Door, W/decals-agm-lh (inc. 24-27) (1pusa/1posa)
23
0518-094
Door, W/decals-so-rh (inc. 24 And
23
0518-095
Door, W/decals-so-lh (inc. 24-27) (1pusu/1posu)
24
4406-246
Panel, Door-rh
24
0518-061
Door, W/warning-decal-lh
25
3411-249
Decal, Warning-tire Pressure-w4
26
3411-304
Decal, Door-upper-wc4-blk-rh (1pusq/1posq)
26
3411-305
Decal, Door-upper-wc4-blk-lh (1pusq/1posq)
26
3411-266
Decal, Door-upper-wc4-agm-rh (1pusa/1posa)
26
3411-267
Decal, Door-upper-wc4-agm-lh (1pusa/1posa)
26
3411-286
Decal, Door-upper-wc4-sso-rh (1pusu/1posu)
26
3411-287
Decal, Door-upper-wc4-sso-lh (1pusu/1posu)
27
3411-306
Decal, Door-lower-wc4-blk-rh (1pusq/1posq)
27
3411-307
Decal, Door-lower-wc4-blk-lh (1pusq/1posq)
27
3411-268
Decal, Door-lower-wc4-agm-rh (1pusa/1posa)
27
3411-269
Decal, Door-lower-wc4-agm-lh (1pusa/1posa)
27
3411-288
Decal, Door-lower-wc4-sso-rh (1pusu/1posu)
27
3411-289
Decal, Door-lower-wc4-sso-lh (1pusu/1posu)
28
0423-817
Screw, Mach-tstrh M8x1.25x20 Cl8.8 W/lock (4 Per Pack)
29
0423-355
Винт m6-1.0 X 18-blk (отпускается по 4 шт )
30
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
31
0826-029
Screw, Mach-tsph M6 X1x12 W/ Thd Lock
32
1423-205
Screw, Shoulder-m6 X 1.0 X 35-blk (2 Per Pack)
