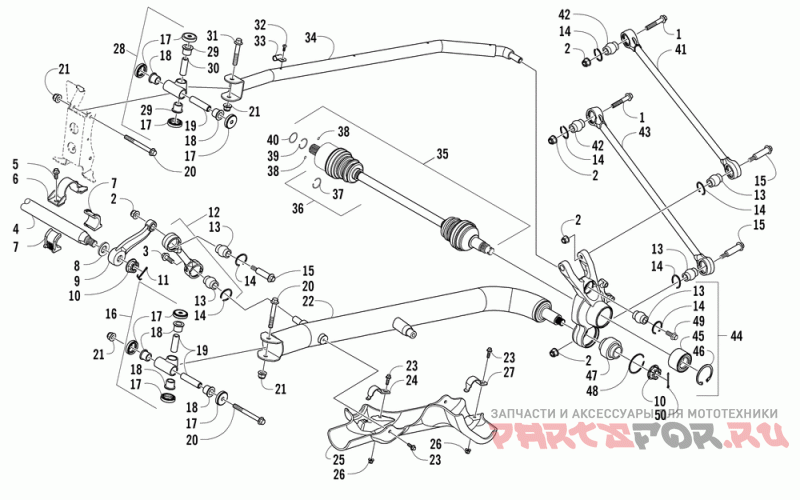

Задняя подвеска

Arctic Cat Wildcat

Arctic Cat
#oem кодцена
1
8409-060
Screw, Cap-hfh M10x1.25x60 Cl10.9 Z&y
2
8428-002
Nut, Hex Flg- Clinch Lock- M10-1.25 Z&y (4 Per Pack)
3
8409-030
Screw, Cap-hfh M10x1.25x30 Cl10.9 Z&y (5 Per Pack)
4
0504-708
Swaybar, Rear 41.28mm Dia - Ptd Black
5
1423-150
Screw, Cap-hsh M10 X 1.25 X 20 (4 Per Pack)
6
0504-724
Clamp, Swaybar Bushing - Ptd Blk
7
0404-246
Bushing, Half - Swaybar
8
2402-061
Washer, Thrust (2 Per Pack)
9
0504-744
Arm, Swaybar End-ptd Black
10
0423-394
Nut, Castle Flange-m18x1.5 Z&y
11
0423-407
Pin, Cotter-1/8x1-1/2 (5 Per Pack)
12
0504-687
Link, Swaybar - Assy (inc. 13-14) (1pusq/1posq)
12
0504-740
Link, Swaybar-black-assy (inc. 13-14) (1pusa/1posa)
13
0404-248
Bearing, Suspension-15mm Bore
14
1423-085
Snap Ring - 35mm (2 Per Pack)
15
1423-087
Bolt, Shoulder - Rear Suspension
16
0504-748
Mount, Lower Trailing Arm - Assy (inc. 17-19)
17
1423-159
Seal, Suspension
18
2402-077
Bearing, Flange-18 Id X 26 Od X 20
19
0404-285
Sleeve, Rear Suspension
20
8413-200
Screw, Cap-hfh M12x1.25x100 Cl10.9 Silv (6 Per Pack)
21
8427-202
Гайка M12x1.25 (4шт в упаковке)
22
0504-690
Lower Trailing Arm - Ptd Green (post) (1pusq/1posq)
22
0504-742
Lower Trailing Arm-ptd Black (post) (1pusa/1posa)
23
0423-889
Screw, Cap-serr Hfh M6 X 1.0 X 20 Blk (5 Per Pack)
24
0504-701
Brkt, Skidplate-frnt-ptd
25
2416-952
Guard, Rear Suspension-rh
25
2416-953
Guard, Rear Suspension-lh
26
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
27
0504-700
Brkt, Skidplate-rear-ptd
28
0504-756
Mount, Upper Trailing Arm-assy (inc. 17-19 And 29-30)
29
2402-076
Bearing, Flange-18 Id X 26 Od X 15
30
0404-289
Sleeve, Rear Suspension
31
8413-275
Screw, Cap-hfh M12x1.25x75 Cl10.9 Silv (2 Per Pack)
32
0423-946
Screw, Self Tap-tspnh-m5x0.8x12 Blk (4 Per Pack)
33
0403-271
Bracket, Brake Line - 1.25" Od
34
0504-692
Upper Trailing Arm - Ptd Green (1pusq/1posq)
34
0504-743
Arm, Upper Trailing -ptd Black (1pusa/1posa)
35
1502-914
Halfshaft, Hp Rear-db Coupler-ht (inc. 36-40)
36
1436-410
Kit, Repair-boot (inc. 37)
37
1441-988
Circlip, Halfshaft-internal (2 Per Pack)
38
1402-885
Pin, Transfer, Short-coupler Axle (4 Per Pack)
39
1402-889
Circlip, 22mm (2 Per Pack)
40
1402-963
O-ring, H-shaft-ht-31.75mm Id X 1.78mm
41
0504-648
Link, Upper Lateral - Assy (inc. 13-14 And 42) (1pusq/1posq)
41
0504-738
Link, Upper Lateral-black-assy (inc. 13-14 And 42) (1pusa/1posa)
42
0404-249
Bearing, Suspension - 10mm Bore
43
0504-645
Link, Lower Lateral - Assy (inc. 13-14 And 42) (1pusq/1posq)
43
0504-736
Link, Lower Lateral-black-assy (inc. 13-14 And 42) (1pusa/1posa)
44
0504-654
Knuckle, Rear-rh-assembly (inc. 13-14 And 45-48)
44
0504-655
Knuckle, Rear-lh-assembly (inc. 13-14 And 45-48)
45
1402-809
Подшипник колеса
46
0423-423
Стопорное кольцо
47
0404-243
Bearing, Suspension - 28mm Bore
48
1423-086
Snap Ring - 55mm (2 Per Pack)
49
8409-025
Screw, Cap-hfh M10x1.25x25 Cl10.9 Z&y
50
1423-147
Pin, Cotter M4 X 30 (2 Per Pack)
