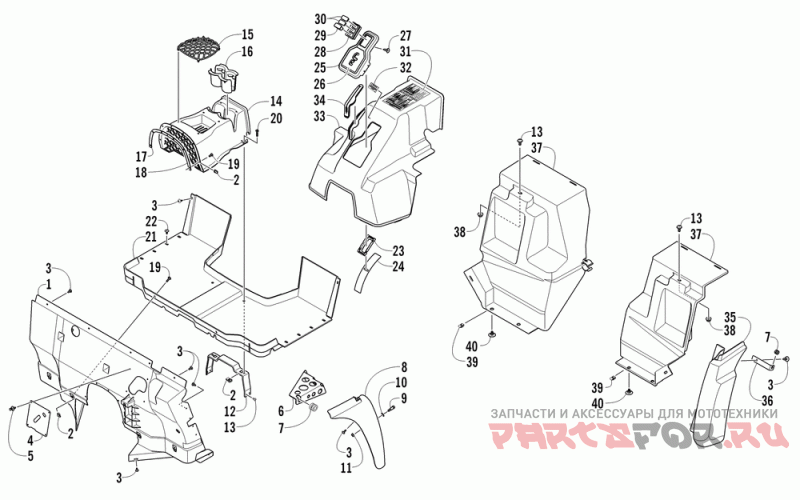

Console and floor panel assembly

Arctic Cat Prowler XTX

Arctic Cat
#oem кодцена
2506-717
Fender, Front Lh-gun Metal Blue (4eusv/4eosv)
2516-426
Fender, Front-right (a. T. Camo) (4eush/4eosh)
2516-427
Fender, Front-left (a. T. Camo) (4eush/4eosh)
2516-184
Fender, Front-rh-apple Green Metallic (4eusa/4eosa)
2516-185
Fender, Front-lh-apple Green Metallic (4eusa/4eosa)
2506-586
Fender, Front-right(brnt Org) (4eusk/4eosk)
2506-587
Fender, Front-left(brnt Org) (4eusk/4eosk)
2516-013
Fender, Rear Lower-lh-g Metal Blu-painted (4eusv/4eosv)
2516-432
Fender, Rear Lower-right (a. T. Camo) (4eush/4eosh)
2516-433
Fender, Rear Lower-left (a. T. Camo) (4eush/4eosh)
2516-196
Fender, Rr Lwr-rh-a Green Metallic (ptd) (4eusa/4eosa)
2516-197
Fender, Rr Lwr-lh-a Green Metallic (ptd) (4eusa/4eosa)
2516-008
Fender, Rear Lower-rh-burnt Org-painted (4eusk/4eosk)
2516-009
Fender, Rear Lower-lh-burnt Org-painted (4eusk/4eosk)
2506-067
Bracket, Support-lh-ptd Blk
2416-271
Panel, Splash-rear-lh
0423-466
Clip, U-type-tinnerman-(d1787-10-4) (2 Per Pack)
0423-545
Screw, Body-self Tap #12 X 3/4 A Z&b (5 Per Pack)
1
2516-488
Panel, Fender-inner-routed (xtx)
2
0423-577
Клипса (отпуск.по 5 шт)
3
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
4
2406-635
Panel, Splash-inner Fender
5
0623-362
Клепка пластик (5 шт в упаковке)
6
2506-066
Bracket, Support-rh-ptd Blk
7
0423-447
Grommet, Gauge Mount (3 Per Pack)
8
2506-716
Fender, Front Rh-gun Metal Blue (4eusv/4eosv)
9
0623-855
Винт
10
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
11
8048-366
Гайка (отпуск.по 10 шт)
12
2516-313
Bracket, Floor Support-painted
13
8476-616
Винт M6x1.0x16 (отпуск. по 5 шт)
14
2416-081
Tunnel, Center
15
2416-111
Net, Storage Box
16
2416-109
Grommet, Cupholder
17
0417-019
Foam, Tunnel-lh (2 Per Pack)
18
0417-018
Foam, Tunnel-rh (2 Per Pack)
19
8468-625
Screw, Mach-tspnh M6x1.0x25 Cl8.8 Blk (5 Per Pack)
20
8468-670
Screw, Mach-tspnh M6x1.0x70 Cl8.8 Blk
21
2416-085
Floor (prowler)
22
0423-545
Screw, Body-self Tap #12 X 3/4 A Z&b (5 Per Pack)
23
1402-793
Gate, Shift Slide
24
1402-794
Shift Slide
25
1502-520
Gate, Shift-w/decal (inc. 26)
26
1411-985
Decal, Shift Gate
27
0423-342
Screw, Self Tapping-.1875 X .75 (5 Per Pack)
28
0409-069
Panel, Switch Mount
29
0409-071
Switch, Reverse Override
30
0409-070
Plug, Switch Hole (3 Per Pack)
31
2411-095
Decal, Warning-console
32
2411-094
Decal, Brake Release
33
2406-951
Console, Center-park Brake (xtz)
34
2406-960
Boot, Park Brake
35
2516-012
Fender, Rear Lower-rh-g Metal Blu-painted (4eusv/4eosv)
36
2516-326
Bracket, Lower Fender Support-black
37
2416-270
Panel, Splash-rear-rh
38
8424-602
Гайка (отпускается по 4 шт)
39
0423-577
Клипса (отпуск.по 5 шт)
40
0423-101
Винт - 6mm (отпуск.по 5 шт)
