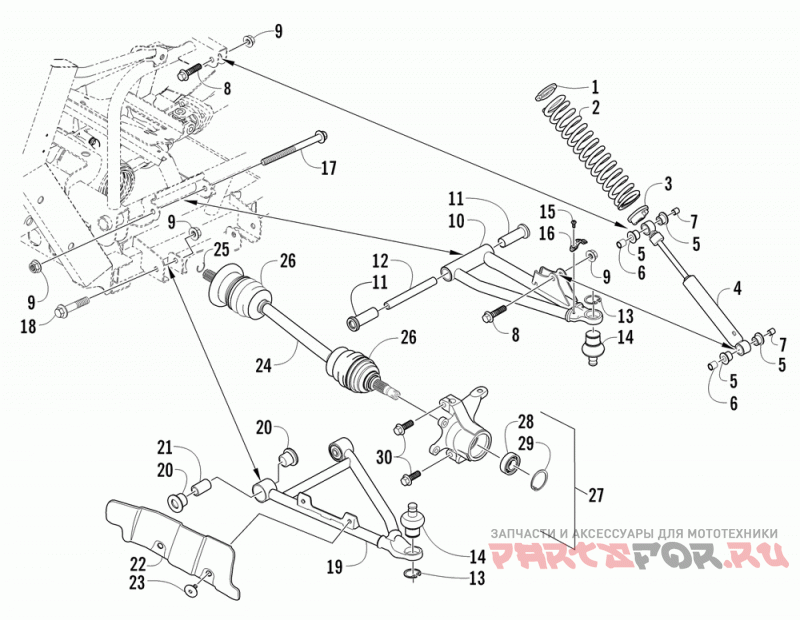

Передняя подвеска

Arctic Cat Prowler XT

Arctic Cat
#oem кодцена
0403-211
Spring, Coil-black (4eusg/4eosg)
0503-421
A-arm, Front Upper Lh-platinum-assy (inc. 11-14) (4eusr/4eosr/4eusz/4eosz)
0503-416
A-arm, Front Upper Rh-black-assy (inc. 11-14) (4eusg/4eosg)
0503-417
A-arm, Front Upper Lh-black-assy (inc. 11-14) (4eusg/4eosg)
0503-381
A-arm, Front Lower-lh-assy (plat) (inc. 13-14 And 20-21) (4eusr/4eosr/4eusz/4eosz)
0503-376
A-arm, Front Lower-rh-assy (black) (inc. 13-14 And 20-21) (4eusg/4eosg)
0503-377
A-arm, Front Lower-lh-assy (black) (inc. 13-14 And 20-21) (4eusg/4eosg)
0441-753
Guard, Boot-lh Red (4eusr/4eosr)
1441-002
Guard, Boot-marsh Green Rh (4eusg/4eosg)
1441-003
Guard, Boot-marsh Green Lh (4eusg/4eosg)
0441-756
Guard, Boot-rh Lime Green (4eusz/4eosz)
0441-757
Guard, Boot-lh Lime Green (4eusz/4eosz)
1502-939
Kit, Halfshaft (1502-802) (inc. 25-26)
0505-581
Knuckle, Steering-lh Assy (inc. 28-29)
1
1603-889
Держатель пружинок
2
0503-402
Spring, Coil-ptd-plat (4eusr/4eosr/4eusz/4eosz)
3
0403-395
Рычаг натяжителя пружины
4
0403-147
Shock, Front-assy (inc. 5-6)
5
0603-955
Втулка изолирующая
6
1603-209
Sleeve, Eyelet - Inner - .790 Tlg
7
0404-116
Sleeve, Shock
8
8409-040
Screw, Cap-hfh M10x1.25x40 Cl10.9 Z&y (5 Per Pack)
9
8428-002
Nut, Hex Flg- Clinch Lock- M10-1.25 Z&y (4 Per Pack)
10
0503-420
A-arm, Front Upper Rh-platinum-assy (inc. 11-14) (4eusr/4eosr/4eusz/4eosz)
11
0403-289
Bushing, Upper A-arm Suspension
12
0403-439
Collar, Suspension Bushing-upper A-arm
13
0423-009
Зажим шаровой опоры
14
0405-483
Шаровая опора
15
0423-946
Screw, Self Tap-tspnh-m5x0.8x12 Blk (4 Per Pack)
16
1502-594
Clip, Brake Hose (2 Per Pack)
17
0423-723
Screw, Cap-hfh M10-1.25x170 Z&y Cl 10.9
18
8409-075
Винт M10x1.25x75
19
0503-380
A-arm, Front Lower-rh-assy (plat) (inc. 13-14 And 20-21) (4eusr/4eosr/4eusz/4eosz)
20
0403-409
Bushing, A-arm Suspension
21
0403-214
Collar, Suspension Bushing (4 Per Pack)
22
0441-752
Guard, Boot-rh Red (4eusr/4eosr)
23
0423-545
Screw, Body-self Tap #12 X 3/4 A Z&b (5 Per Pack)
24
1502-940
Kit, Halfshaft (1502-803) (inc. 25-26)
25
0423-844
Clip, Retaining-inboard
26
1436-207
Kit, Cv Boot-universal
27
0505-580
Knuckle, Steering-rh Assy (inc. 28-29)
28
1402-809
Подшипник колеса
29
0423-423
Стопорное кольцо
30
8409-030
Screw, Cap-hfh M10x1.25x30 Cl10.9 Z&y (5 Per Pack)
