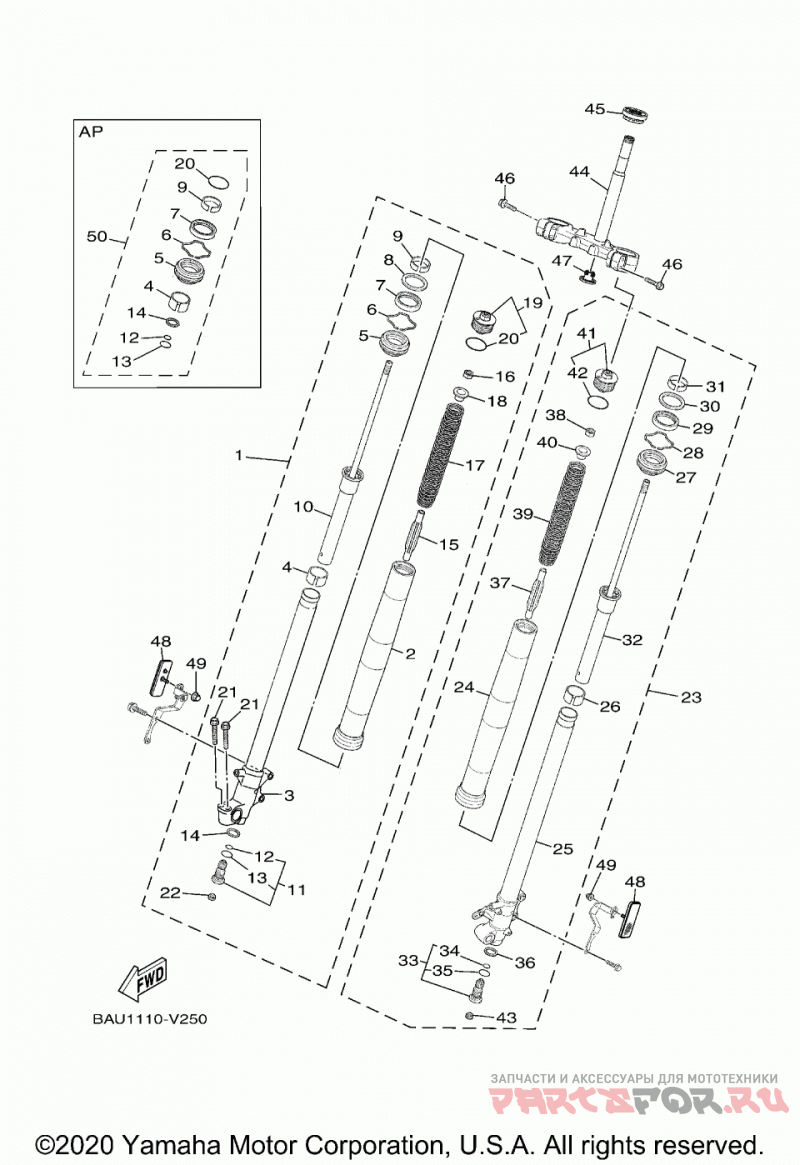

Передняя вилка

Yamaha (Америка) TENERE 700 (XTZ7MCGY/XTZ7MCB/XTZ7MGY/XTZ7MB/XTZ7MCW/XTZ7MW)

Yamaha (Америка)
#oem кодцена
1
BW3-23103-01-00
FRONT FORK ASSY (R.H)
10
BW3-23170-01-00
. .CYLINDER COMP., FRONT FORK
11
BW3-2330H-01-00
. .VALVE ASSY
12
4DA-23147-L1-00
. . ..O-RING
13
276-23114-01-00
. . ..GASKET
14
2HH-23158-L0-00
. .GASKET
15
23P-23117-00-00
. .GUIDE, SPRING
16
3XJ-23357-L0-00
. .NUT
17
BW3-23141-00-00
. .SPRING, FRONT FORK
18
BW3-23117-00-00
. .GUIDE, SPRING
19
BW3-23111-01-00
. .BOLT, CAP
2
BW3-23126-00-00
. .TUBE, OUTER (L.H)
20
3XJ-23147-L1-00
. . ..O-RING
21
90105-08134-00
. BOLT, FLANGE
22
3JD-2312G-L0-00
. .PLUG, HOLE
23
BW3-23102-01-00
FRONT FORK ASSY (L.H)
24
BW3-23126-00-00
. .TUBE, OUTER (L.H)
25
BW3-23110-01-00
. .INNER TUBE COMP.1
26
5EB-23171-00-00
. .PISTON, FRONT FORK
27
4PU-23144-00-00
. .SEAL, DUST
28
4V4-23153-L0-00
. .RING, SNAP
29
4PU-23145-01-00
. .OIL SEAL
3
BW3-23120-01-00
. .INNER TUBE COMP.2
30
4V4-23146-L0-00
. .WASHER, OIL SEAL
31
2CR-23125-00-00
. .METAL, SLIDE 1
32
BW3-23170-01-00
. .CYLINDER COMP., FRONT FORK
33
BW3-2330H-01-00
. .VALVE ASSY
34
4DA-23147-L1-00
. . ..O-RING
35
276-23114-01-00
. . ..GASKET
36
2HH-23158-L0-00
. .GASKET
37
23P-23117-00-00
. .GUIDE, SPRING
38
3XJ-23357-L0-00
. .NUT
39
BW3-23141-00-00
. .SPRING, FRONT FORK
4
5EB-23171-00-00
. .PISTON, FRONT FORK
40
BW3-23117-00-00
. .GUIDE, SPRING
41
BW3-23111-01-00
. .BOLT, CAP
42
3XJ-23147-L1-00
. . ..O-RING
43
3JD-2312G-L0-00
. .PLUG, HOLE
44
BW3-23340-00-00
Нижний кронштейн
45
93332-00008-00
Подшипник
46
90105-08134-00
Болт
47
4KM-23123-01-00
COVER, UNDER 1
48
11H-85110-01-00
Катафот
49
90176-05802-00
Гайка
5
4PU-23144-00-00
. .SEAL, DUST
50
BAU-W003B-00-00
FORK SEALS KIT
6
4V4-23153-L0-00
. .RING, SNAP
7
4PU-23145-01-00
. .OIL SEAL
8
4V4-23146-L0-00
. .WASHER, OIL SEAL
9
2CR-23125-00-00
. .METAL, SLIDE 1
