Ведущий вал

Yamaha (Америка) SUPER TENERE ES (XTZ12EMCB/XTZ12EMB)

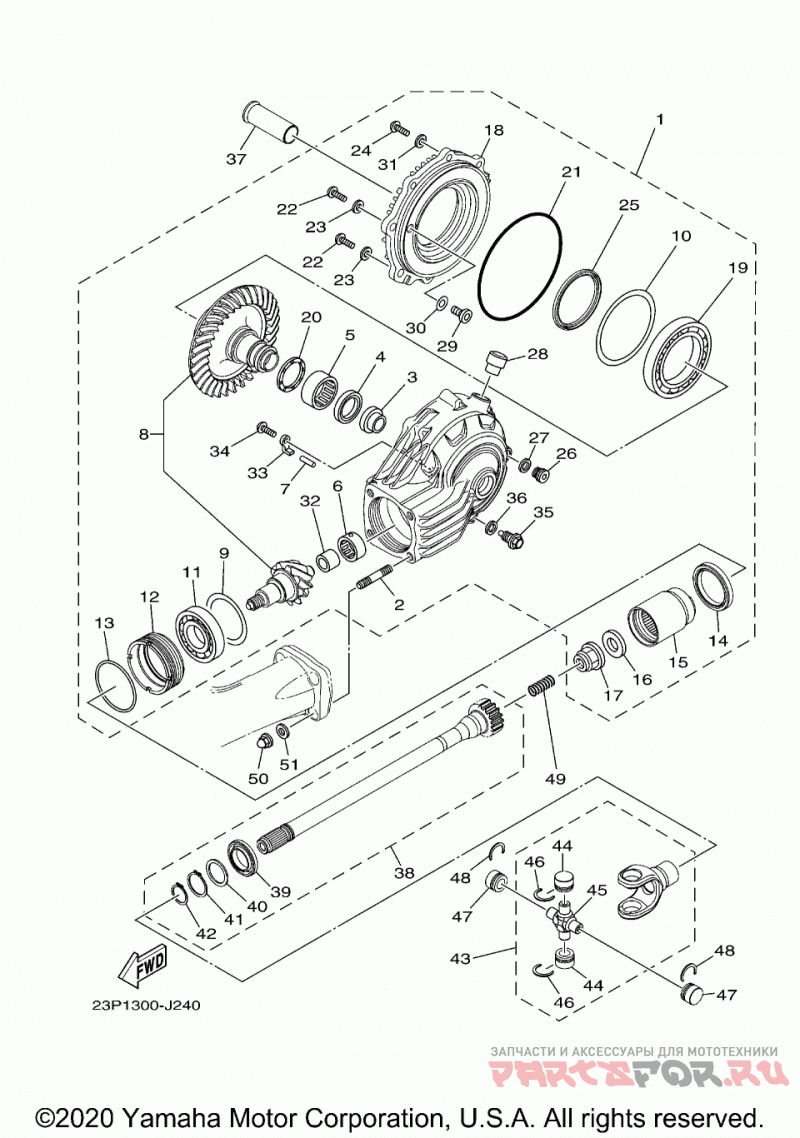

Ведущий вал

#

oem код

название

цена

1

23P-46101-00-00

REAR AXLE GEAR CASE ASSY

REAR AXLE GEAR CASE ASSY

10

1J7-46117-Y0-25

. .SHIM, RING GEAR (0.25T)

. .SHIM, RING GEAR (0.25T)

10

1J7-46117-Y0-30

. .SHIM, RING GEAR (0.30T)

. .SHIM, RING GEAR (0.30T)

10

1J7-46117-Y0-35

. .SHIM, RING GEAR (0.35T)

. .SHIM, RING GEAR (0.35T)

10

1J7-46117-Y0-40

. .SHIM, RING GEAR (0.40T)

. .SHIM, RING GEAR (0.40T)

10

1J7-46117-Y0-50

. .SHIM, RING GEAR (0.50T)

. .SHIM, RING GEAR (0.50T)

10

1J7-46117-Y0-45

. .SHIM, RING GEAR (0.45T)

. .SHIM, RING GEAR (0.45T)

11

. .BEARING

. .BEARING

12

23P-46125-00-00

. .RETAINER, BEARING

. .RETAINER, BEARING

13

. .O-RING

. .O-RING

14

. .OIL SEAL

. .OIL SEAL

15

23P-46123-00-00

. .COUPLING, GEAR

. .COUPLING, GEAR

16

. .WASHER, CONICAL SPRING

. .WASHER, CONICAL SPRING

17

. .NUT

. .NUT

18

23P-46152-00-00

. .HOUSING, BEARING

. .HOUSING, BEARING

19

. .BEARING

. .BEARING

2

. .BOLT, STUD

. .BOLT, STUD

20

22U-46118-00-12

. .SHIM, THRUST (1.2T)

. .SHIM, THRUST (1.2T)

20

22U-46118-00-14

. .SHIM, THRUST (1.4T)

. .SHIM, THRUST (1.4T)

20

22U-46118-00-16

. .SHIM, THRUST (1.6T)

. .SHIM, THRUST (1.6T)

20

22U-46118-00-18

. .SHIM, THRUST (1.8T)

. .SHIM, THRUST (1.8T)

20

22U-46118-00-20

. .SHIM, THRUST (2.0T)

. .SHIM, THRUST (2.0T)

20

22U-46118-00-13

. .SHIM, THRUST (1.3T)

. .SHIM, THRUST (1.3T)

20

22U-46118-00-15

. .SHIM, THRUST (1.5T)

. .SHIM, THRUST (1.5T)

20

22U-46118-00-17

. .SHIM, THRUST (1.7T)

. .SHIM, THRUST (1.7T)

20

22U-46118-00-19

. .SHIM, THRUST (1.9T)

. .SHIM, THRUST (1.9T)

20

22U-46118-00-21

. .SHIM, THRUST (2.1T)

. .SHIM, THRUST (2.1T)

21

. .O-RING

. .O-RING

22

. .SCREW

. .SCREW

23

. .WASHER, PLATE

. .WASHER, PLATE

24

. .SCREW

. .SCREW

25

. .OIL SEAL

. .OIL SEAL

26

. .PLUG, STRAIGHT SCREW

. .PLUG, STRAIGHT SCREW

27

214-11198-01-00

. .GASKET

. .GASKET

28

2H7-17590-00-00

. .BREATHER COMP.

. .BREATHER COMP.

29

1FK-46156-00-00

. .STOPPER, RING GEAR

. .STOPPER, RING GEAR

3

23P-46153-00-00

. .COLLAR, GUIDE

. .COLLAR, GUIDE

30

1FK-46157-00-15

. .SHIM, STOPPER (T=0.15)

. .SHIM, STOPPER (T=0.15)

30

1FK-46157-00-20

. .SHIM, STOPPER (T=0.20)

. .SHIM, STOPPER (T=0.20)

31

. WASHER, PLATE

. WASHER, PLATE

32

23P-46122-00-00

. .RACE, INNER

. .RACE, INNER

33

2S3-46862-00-00

. .HOLDER

. .HOLDER

34

. .SCREW

. .SCREW

35

. .PLUG, STRAIGHT SCREW

. .PLUG, STRAIGHT SCREW

36

214-11198-01-00

. .GASKET

. .GASKET

37

23P-4615A-00-00

COLLAR, GUIDE 1

COLLAR, GUIDE 1

38

23P-46171-00-00

SHAFT DRIVE ASSY

SHAFT DRIVE ASSY

39

. .OIL SEAL

. .OIL SEAL

4

. .OIL SEAL

. .OIL SEAL

40

. .WASHER, PLATE

. .WASHER, PLATE

41

. .CIRCLIP

. .CIRCLIP

42

. .CIRCLIP

. .CIRCLIP

43

23P-46180-00-00

CROSS JOINT COMP.

CROSS JOINT COMP.

44

. BEARING

. BEARING

45

23P-46187-00-00

. .SPIDER

. .SPIDER

46

. CIRCLIP

. CIRCLIP

47

Подшипник

Подшипник

48

Пружинное стопорное кольцо

Пружинное стопорное кольцо

49

Пружина сжатия

Пружина сжатия

5

. .BEARING

. .BEARING

50

Гайка

Гайка

51

Шайба

Шайба

6

. .BEARING

. .BEARING

7

. .PIN, DOWEL

. .PIN, DOWEL

8

23P-461A0-00-00

. .GEAR SET

. .GEAR SET

9

2S3-46119-00-00

. .SHIM, THRUST (T0.15)

. .SHIM, THRUST (T0.15)

9

2S3-46119-10-00

. .SHIM, THRUST (T0.3)

. .SHIM, THRUST (T0.3)

9

2S3-46119-20-00

. .SHIM, THRUST (T0.4)

. .SHIM, THRUST (T0.4)

9

2S3-46119-30-00

. .SHIM, THRUST (T0.45)

. .SHIM, THRUST (T0.45)

9

2S3-46119-40-00

. .SHIM, THRUST (T0.5)

. .SHIM, THRUST (T0.5)

9

2S3-46119-50-00

. .SHIM, THRUST (T0.6)

. .SHIM, THRUST (T0.6)

9

2S3-46119-60-00

. .SHIM, THRUST (T0.2)

. .SHIM, THRUST (T0.2)

9

2S3-46119-70-00

. .SHIM, THRUST (T0.25)

. .SHIM, THRUST (T0.25)
