Задняя подвеска для мотоциклов Yamaha (Америка) WR450F (WR450FL) (2020)

Москва и регионы России

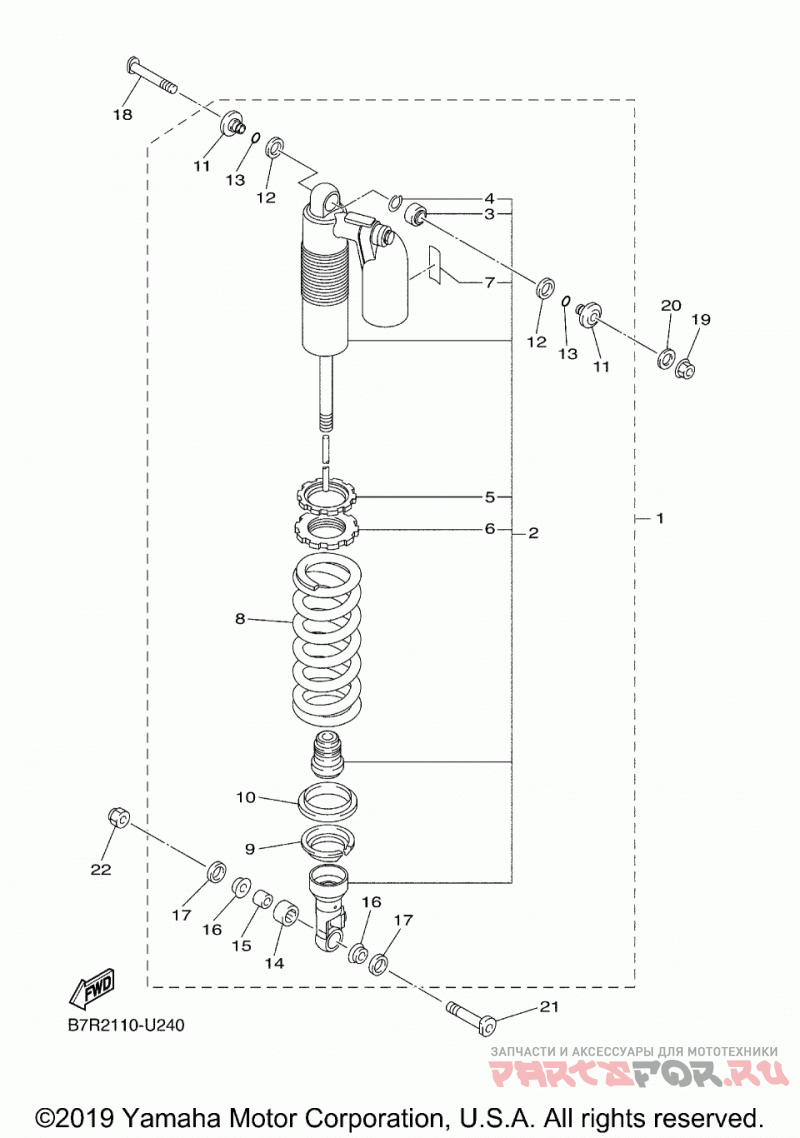

Задняя подвеска

Yamaha (Америка) WR450F (WR450FL)

Задняя подвеска

#

oem код

название

цена

1

B7R-22200-10-00

SHOCK ABSORBER ASSY, REAR

SHOCK ABSORBER ASSY, REAR

10

33D-22224-00-00

. .GUIDE, SPRING 2

. .GUIDE, SPRING 2

11

1C3-22253-50-00

. .COLLAR, DISTANCE

. .COLLAR, DISTANCE

12

3JE-22475-00-00

. .SEAL, DUST

. .SEAL, DUST

13

4EW-22474-00-00

. .SEAL, RING

. .SEAL, RING

14

5UN-22176-00-00

. .BEARING

. .BEARING

15

5MV-22184-00-00

. .BUSH

. .BUSH

16

1C3-22253-L1-00

. .COLLAR, DISTANCE

. .COLLAR, DISTANCE

17

5NY-22475-00-00

. .SEAL, DUST

. .SEAL, DUST

18

5XE-22242-01-00

Болт

Болт

19

NUT, S/L FLANGE

NUT, S/L FLANGE

2

B7R-22201-10-00

. .DAMPER SUB ASSY

. .DAMPER SUB ASSY

20

Шайба

Шайба

21

5NY-22241-00-00

Болт

Болт

22

Гайка

Гайка

3

4JX-22226-00-00

. . ..BUSH, SHOCK ABSORBER LOWE

. . ..BUSH, SHOCK ABSORBER LOWE

4

5DH-23183-00-00

. . ..CIRCLIP

. . ..CIRCLIP

5

33D-22234-00-00

. . ..GUIDE, SPRING 3

. . ..GUIDE, SPRING 3

6

1SL-22213-00-00

. . ..SEAT, SPRING UPPER

. . ..SEAT, SPRING UPPER

7

4AA-22259-80-00

. . ..LABEL, WARNING

. . ..LABEL, WARNING

8

BR9-22212-20-00

. .SPRING (K=56 BLUE)

. .SPRING (K=56 BLUE)

9

33D-22214-00-00

. .GUIDE, SPRING 1

. .GUIDE, SPRING 1
