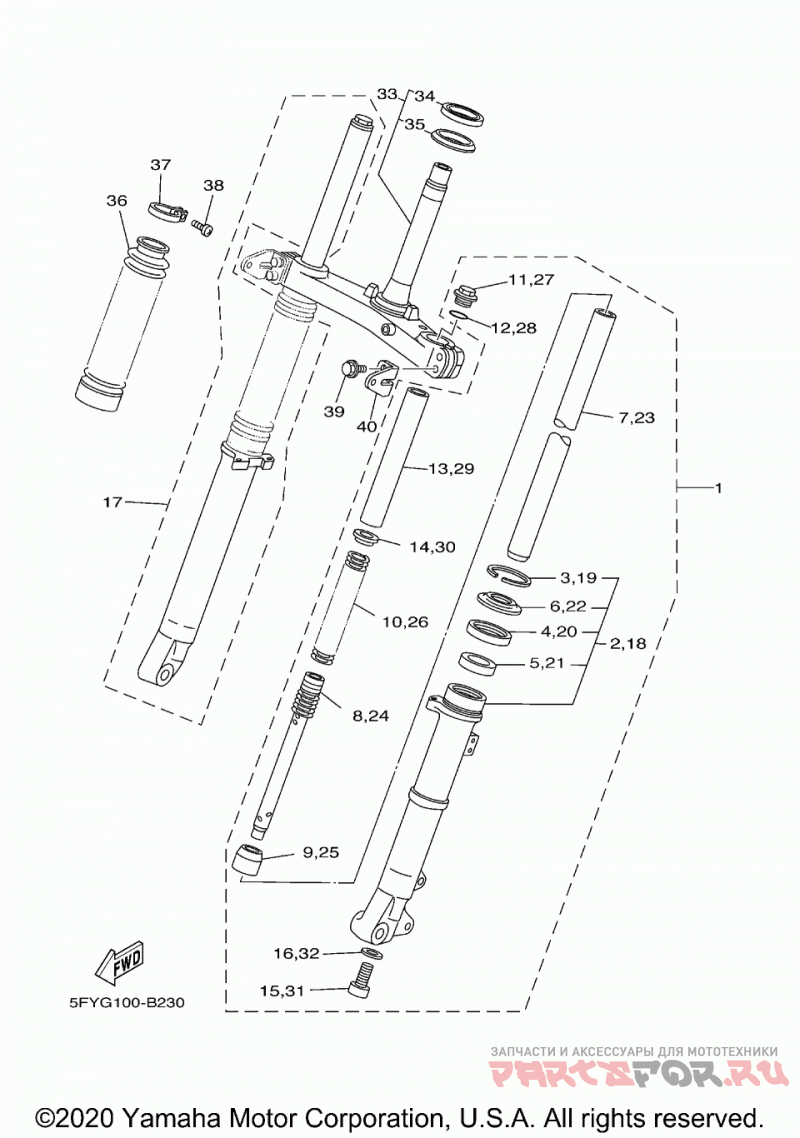

Передняя вилка

Yamaha (Америка) TW200 (TW200L1C/TW200L1)

Yamaha (Америка)
#oem кодцена
1
5FY-23102-20-00
FRONT FORK ASSY (L.H)
10
2JX-23141-00-00
. .SPRING, FRONT FORK
11
2JN-23111-00-00
. .BOLT, CAP
12
3J2-23114-00-00
. .O-RING
13
22U-23118-01-00
. .SPACER
14
3DM-23149-10-00
. .WASHER, SPRING UPPER
15
3D8-23181-00-00
. .BOLT, HEXAGON SOCKET HEAD
16
509-23158-L0-00
. .GASKET
17
5FY-23103-20-00
FRONT FORK ASSY (R.H)
18
5RS-23136-10-00
. .TUBE, OUTER 2
19
22W-23153-L0-00
. . ..RING, SNAP
2
5RS-23126-10-00
. .TUBE, OUTER (L.H)
20
22W-23145-L0-00
. . ..OIL SEAL
21
51Y-23125-00-00
. . ..METAL, SLIDE 1
22
54G-23144-00-00
. . ..SEAL, DUST
23
2JX-23110-00-00
. .INNER TUBE COMP.1
24
2JX-23170-00-00
. .CYLINDER COMP., FRONT FORK
25
3R6-23173-L0-00
. .SPINDLE, TAPER
26
2JX-23141-00-00
. .SPRING, FRONT FORK
27
2JN-23111-00-00
. .BOLT, CAP
28
3J2-23114-00-00
. .O-RING
29
22U-23118-01-00
. .SPACER
3
22W-23153-L0-00
. . ..RING, SNAP
30
3DM-23149-10-00
. .WASHER, SPRING UPPER
31
3D8-23181-00-00
. .BOLT, HEXAGON SOCKET HEAD
32
509-23158-L0-00
. .GASKET
33
5LB-23340-02-00
Нижний кронштейн
34
B6E-23411-00-00
. .RACE, BALL 1
35
5VC-23462-00-00
. .SEAL, DUST
36
4CS-23191-20-00
чехол
37
2K5-23192-00-00
Хомут
38
1W4-23194-L0-00
SCREW, BOOT BAND
39
5RS-23346-00-00
Болт
4
22W-23145-L0-00
. . ..OIL SEAL
40
49R-85112-00-00
Крепление рефлектора
5
51Y-23125-00-00
. . ..METAL, SLIDE 1
6
54G-23144-00-00
. . ..SEAL, DUST
7
2JX-23110-00-00
. .INNER TUBE COMP.1
8
2JX-23170-00-00
. .CYLINDER COMP., FRONT FORK
9
3R6-23173-L0-00
. .SPINDLE, TAPER
