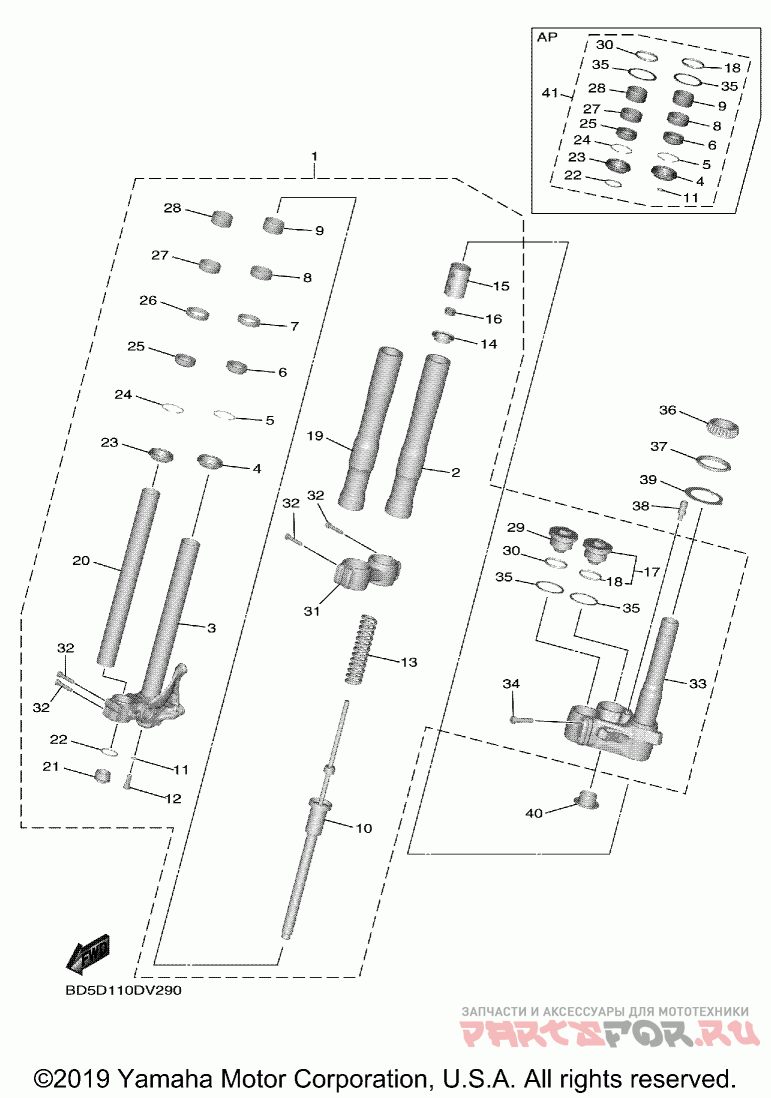

Front fork 2

Yamaha (Америка) NIKEN GT (MXT9GTLB)

Yamaha (Америка)
#oem кодцена
1
BD5-23140-10-00
FORK UNIT ASSY 2
10
BD5-23170-00-00
. .CYLINDER COMP., FRONT FORK
11
509-23158-L0-00
. .GASKET
12
5UX-23181-00-00
. .BOLT, HEXAGON SOCKET HEAD
13
BD5-23141-00-00
. .SPRING, FRONT FORK
14
4XV-23142-00-00
. .SEAT, SPRING UPPER
15
BD5-23118-00-00
. .SPACER
16
3LC-23357-00-00
. .NUT
17
BD5-23111-00-00
. .BOLT, CAP
18
3XJ-23147-L0-00
. . .O-RING
19
BD5-23136-10-00
. .TUBE, OUTER 2
2
BD5-23126-10-00
. .TUBE, OUTER (L.H)
20
BD5-2332L-00-00
. .TUBE, INNER
21
BD5-2384M-00-00
. .CAP
22
1TP-23188-00-00
. .O-RING
23
4EB-23144-00-00
. .SEAL, DUST
24
26H-23156-00-00
. .RING, SNAP
25
4EB-23145-01-00
. .OIL SEAL
26
36Y-23146-10-00
. .WASHER, OIL SEAL
27
1RC-23125-00-00
. .METAL, SLIDE 1
28
4FM-23171-40-00
. .METAL, SLIDE
29
BD5-2311J-00-00
. .BOLT, CAP 2
3
BD5-23120-00-00
. .INNER TUBE COMP.2
30
3XJ-23147-L0-00
. .O-RING
31
BD5-2386B-00-00
. .BRKT., STABILIZER FR.
32
91314-08035-00
. .BOLT, HEXAGON SOCKET HEAD
33
BD5-23380-00-00
. .UNDER BRACKET COMP.
34
BD5-23436-00-00
. .BOLT
35
BD5-23153-00-00
. .RING, SNAP
36
BD5-234H0-00-00
INNER RACE ASSY.2
37
BD5-23462-00-00
Уплотнение
38
BD5-2348H-00-00
SCREW,STOPPER
39
BD5-23416-00-00
Крышка подшипника
4
4PU-23144-00-00
. .SEAL, DUST
40
BD5-2319U-00-00
Крышка
41
BD5-W003B-00-00
FORK SEALS KIT
5
4V4-23153-L0-00
. .RING, SNAP
6
4PU-23145-01-00
. .OIL SEAL
7
4V4-23146-L0-00
. .WASHER, OIL SEAL
8
2CR-23125-00-00
. .METAL, SLIDE 1
9
5EB-23171-00-00
. .PISTON, FRONT FORK
