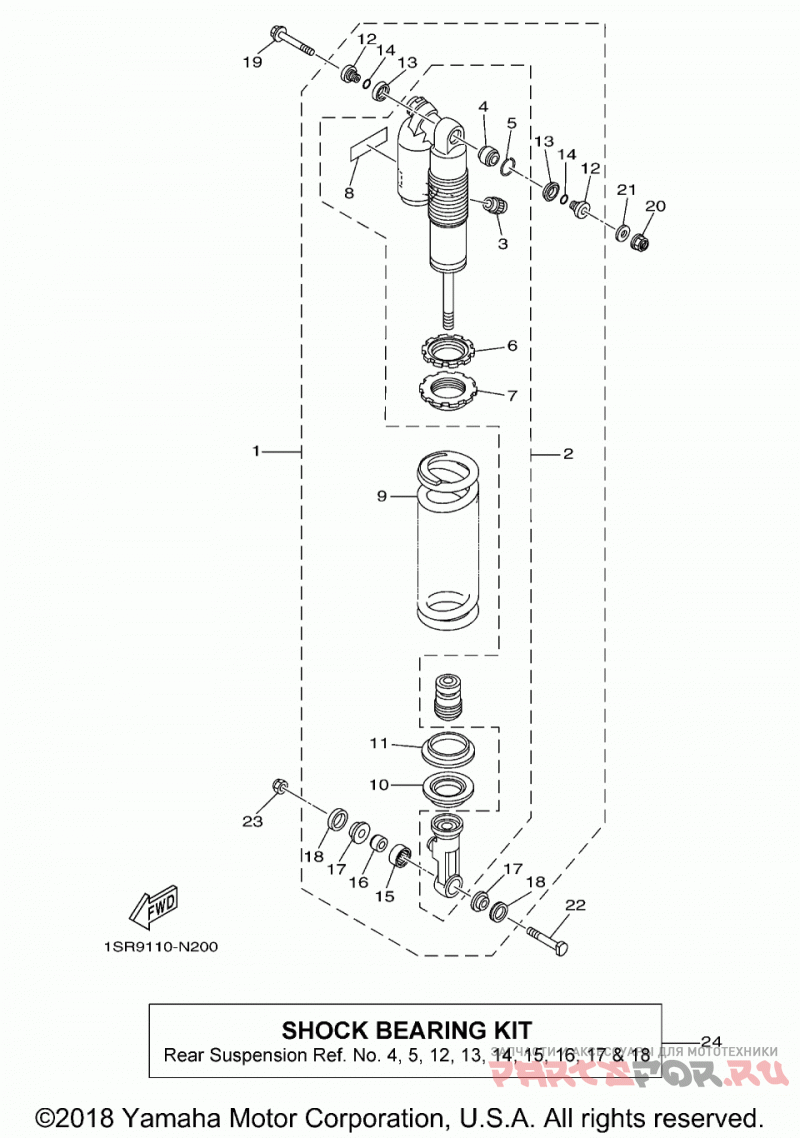

Задняя подвеска

Yamaha (Америка) YZ125 (YZ125K2)

Yamaha (Америка)
#oem кодцена
1
1SR-22200-00-00
SHOCK ABSORBER ASSY, REAR
2
1C3-22201-F0-00
. .DAMPER SUB ASSY
3
509-23184-L0-00
. . ..CAP, AIR VALVE
4
4JX-22226-00-00
. . BUSH, SHOCK ABSORBER LOWER
5
5DH-23183-00-00
. . CIRCLIP
6
3SP-22234-00-00
. . ..GUIDE, SPRING 3
7
1C3-22213-L0-00
. . ..SEAT, SPRING UPPER
8
4AA-22259-80-00
. . ..LABEL, WARNING
9
5UN-22212-20-00
. SPRING (K=46N/MM)
10
1C3-22214-50-00
. .GUIDE, SPRING 1
11
5MV-22224-00-00
. .GUIDE, SPRING 2
12
1C3-22253-50-00
. COLLAR, DISTANCE
13
3JE-22475-00-00
. SEAL, DUST
14
4EW-22474-00-00
. SEAL, RING
15
5UN-22176-00-00
. BEARING
16
5MV-22184-00-00
. BUSH
17
1C3-22253-L1-00
. COLLAR, DISTANCE
18
5NY-22475-00-00
. SEAL, DUST
19
5XE-22242-01-00
Болт
20
95602-10200-00
NUT, S/L FLANGE
21
92903-10200-00
Шайба
22
5NY-22241-00-00
Болт
23
90185-10012-00
Гайка
