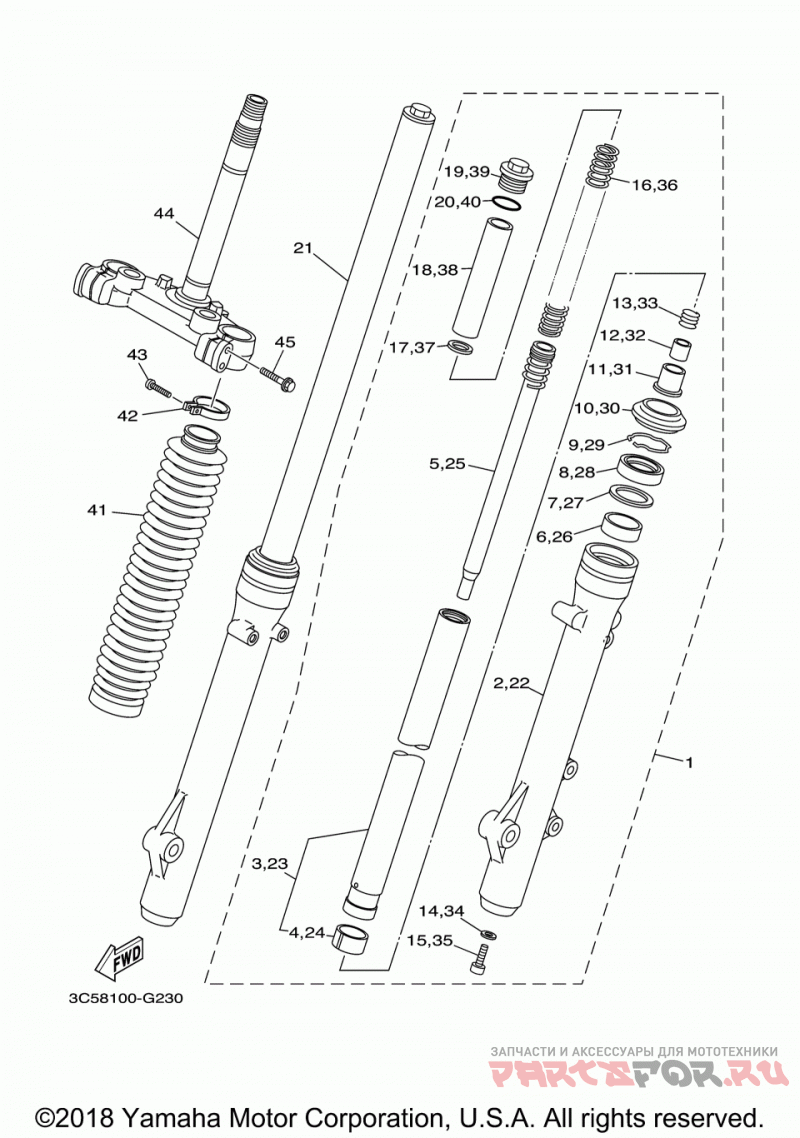

Передняя вилка

Yamaha (Америка) XT250 (XT250K1C/XT250K1)

Yamaha (Америка)
#oem кодцена
1
3C5-23102-20-00
FRONT FORK ASSY (L.H)
2
3C5-23126-10-00
. .TUBE, OUTER (L.H)
3
3C5-23110-00-00
. . INNER TUBE COMP. 1
4
5JX-23171-00-00
. . ..PISTON, FRONT FORK
5
3C5-23170-00-00
. .CYLINDER COMP., FRONT FORK
6
5JX-23125-00-00
. .METAL, SLIDE 1
7
5K5-23149-00-00
. .WASHER, SPRING UPPER
8
5JX-23145-00-00
. .OIL SEAL
9
4A1-23156-00-00
. .RING, SNAP
10
5JX-23144-00-00
. .SEAL, DUST
11
5XT-23173-00-00
. .SPINDLE, TAPER
12
5XT-23363-00-00
. .COLLAR 1
13
5XT-23151-00-00
. .SPRING, REBOUND
14
1N1-23158-00-00
. .GASKET
15
91314-08025-00
. .BOLT
16
3C5-23141-00-00
. .SPRING, FRONT FORK
17
4FY-23149-00-00
. .WASHER, SPRING UPPER
18
3C5-23118-00-00
. .SPACER
19
5JX-23111-00-00
. .BOLT, CAP
20
240-23114-00-00
. .GASKET
21
3C5-23103-20-00
FRONT FORK ASSY (R.H)
22
3C5-23136-10-00
. .TUBE, OUTER 2
23
3C5-23110-00-00
. . INNER TUBE COMP. 1
24
5JX-23171-00-00
. . ..PISTON, FRONT FORK
25
3C5-23170-00-00
. .CYLINDER COMP., FRONT FORK
26
5JX-23125-00-00
. .METAL, SLIDE 1
27
5K5-23149-00-00
. .WASHER, SPRING UPPER
28
5JX-23145-00-00
. .OIL SEAL
29
4A1-23156-00-00
. .RING, SNAP
30
5JX-23144-00-00
. .SEAL, DUST
31
5XT-23173-00-00
. .SPINDLE, TAPER
32
5XT-23363-00-00
. .COLLAR 1
33
5XT-23151-00-00
. .SPRING, REBOUND
34
1N1-23158-00-00
. .GASKET
35
91314-08025-00
. .BOLT
36
3C5-23141-00-00
. .SPRING, FRONT FORK
37
4FY-23149-00-00
. .WASHER, SPRING UPPER
38
3C5-23118-00-00
. .SPACER
39
5JX-23111-00-00
. .BOLT, CAP
40
240-23114-00-00
. .GASKET
41
3C5-23191-10-00
чехол
42
3C5-23192-00-00
Хомут
43
98506-04018-00
Винт
44
3C5-23340-10-00
Нижний кронштейн
45
5RS-23346-00-00
Болт
