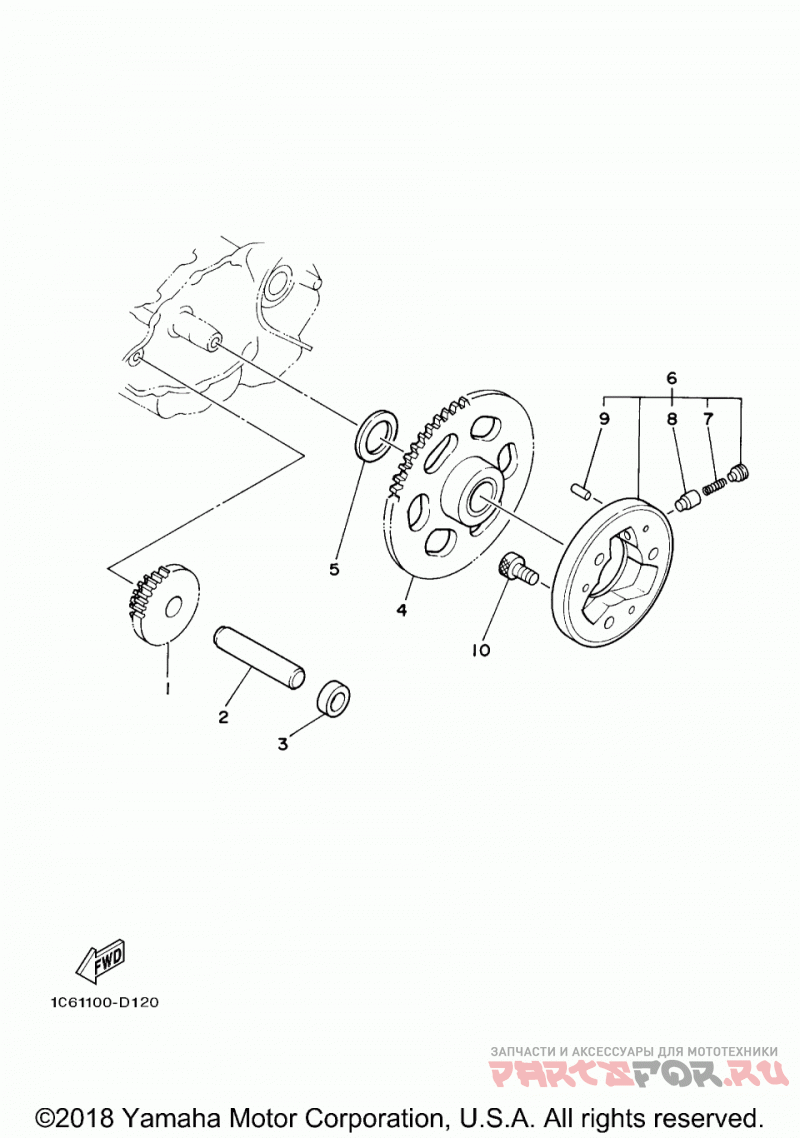

Муфта стартера
Yamaha (Америка) TTR230 (TTR230K)
| # | oem код | название | цена |
|---|---|---|---|
1 | 2HT-15512-00-00 GEAR, IDLER 1 (41T/10T) | GEAR, IDLER 1 (41T/10T) | |
2 | 5H0-15521-00-00 Ось 1 | Ось 1 | |
3 | 90387-125Y0-00 Манжета | Манжета | |
4 | 4JG-15517-00-00 GEAR, IDLER 2 (56T) | GEAR, IDLER 2 (56T) | |
6 | 4H7-15580-10-00 STARTER CLUTCH OUTER ASSY | STARTER CLUTCH OUTER ASSY | |
7 | 90501-04596-00 . .SPRING, COMPRESSION | . .SPRING, COMPRESSION | |
8 | 1J7-15583-01-00 . .CAP, STARTER CLUTCH SPRING | . .CAP, STARTER CLUTCH SPRING | |
9 | 93615-12088-00 . .PIN, DOWEL | . .PIN, DOWEL | |
10 | 9131M-08020-00 Болт | Болт |
