Передняя вилка для мотоциклов Yamaha (Америка) YZ85 (YZ85J) (2018)

Москва и регионы России

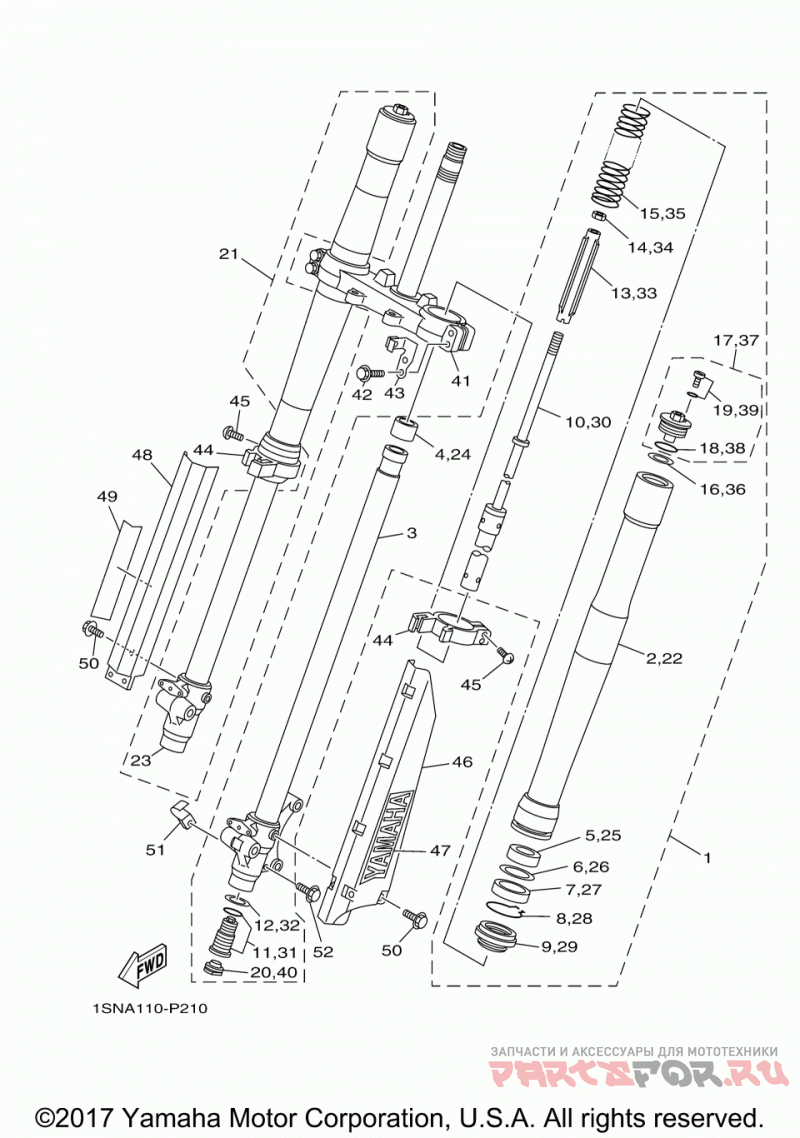

Передняя вилка

Yamaha (Америка) YZ85 (YZ85J)

Передняя вилка

#

oem код

название

цена

1

5PA-23102-10-00

FRONT FORK ASSY (L.H)

FRONT FORK ASSY (L.H)

2

5PA-23136-10-00

. .TUBE, OUTER 2

. .TUBE, OUTER 2

3

5PA-23120-00-00

. . INNER TUBE COMP. 2

. . INNER TUBE COMP. 2

4

5PA-23171-00-00

. .PISTON, FRONT FORK

. .PISTON, FRONT FORK

5

5PA-23125-00-00

. .METAL, SLIDE 1

. .METAL, SLIDE 1

6

5K5-23149-00-00

. .WASHER, SPRING UPPER

. .WASHER, SPRING UPPER

7

4ES-23145-00-00

. .OIL SEAL

. .OIL SEAL

8

4A1-23156-00-00

. .RING, SNAP

. .RING, SNAP

9

4ES-23144-00-00

. .SEAL, DUST

. .SEAL, DUST

10

5PA-23170-00-00

. .CYLINDER COMP., FRONT FORK

. .CYLINDER COMP., FRONT FORK

11

5PA-2316A-00-00

. .VALVE COMP.

. .VALVE COMP.

12

2HH-23158-L0-00

. .GASKET

. .GASKET

13

4ES-23142-00-00

. .SEAT, SPRING UPPER

. .SEAT, SPRING UPPER

14

3XJ-23357-L0-00

. .NUT

. .NUT

15

4ES-23141-40-00

. . SPRING, FRONT FORK (K=2.8N/

. . SPRING, FRONT FORK (K=2.8N/

16

5PA-23149-00-00

. .WASHER, SPRING UPPER

. .WASHER, SPRING UPPER

17

4ES-23111-10-00

. .BOLT, CAP

. .BOLT, CAP

18

4V4-23188-L0-00

. . ..O-RING

. . ..O-RING

19

3JD-23394-00-00

. . ..BOLT, SPECIAL

. . ..BOLT, SPECIAL

20

3JD-2312G-L0-00

. .PLUG, HOLE

. .PLUG, HOLE

21

5PA-23103-10-00

FRONT FORK ASSY (R.H)

FRONT FORK ASSY (R.H)

22

5PA-23136-10-00

. .TUBE, OUTER 2

. .TUBE, OUTER 2

23

5PA-23110-00-00

. . INNER TUBE COMP. 1

. . INNER TUBE COMP. 1

24

5PA-23171-00-00

. .PISTON, FRONT FORK

. .PISTON, FRONT FORK

25

5PA-23125-00-00

. .METAL, SLIDE 1

. .METAL, SLIDE 1

26

5K5-23149-00-00

. .WASHER, SPRING UPPER

. .WASHER, SPRING UPPER

27

4ES-23145-00-00

. .OIL SEAL

. .OIL SEAL

28

4A1-23156-00-00

. .RING, SNAP

. .RING, SNAP

29

4ES-23144-00-00

. .SEAL, DUST

. .SEAL, DUST

30

5PA-23170-00-00

. .CYLINDER COMP., FRONT FORK

. .CYLINDER COMP., FRONT FORK

31

5PA-2316A-00-00

. .VALVE COMP.

. .VALVE COMP.

32

2HH-23158-L0-00

. .GASKET

. .GASKET

33

4ES-23142-00-00

. .SEAT, SPRING UPPER

. .SEAT, SPRING UPPER

34

3XJ-23357-L0-00

. .NUT

. .NUT

35

4ES-23141-40-00

. . SPRING, FRONT FORK (K=2.8N/

. . SPRING, FRONT FORK (K=2.8N/

36

5PA-23149-00-00

. .WASHER, SPRING UPPER

. .WASHER, SPRING UPPER

37

4ES-23111-10-00

. .BOLT, CAP

. .BOLT, CAP

38

4V4-23188-L0-00

. . ..O-RING

. . ..O-RING

39

3JD-23394-00-00

. . ..BOLT, SPECIAL

. . ..BOLT, SPECIAL

40

3JD-2312G-L0-00

. .PLUG, HOLE

. .PLUG, HOLE

41

1SN-23340-10-00

Нижний кронштейн

Нижний кронштейн

42

5PA-23346-00-00

Болт

Болт

43

5PA-2331E-10-00

Направляющая троса

Направляющая троса

44

4ES-2314F-00-00

PROTECTER GUIDE COMP., 1

PROTECTER GUIDE COMP., 1

45

SCREW, BOOT BAND

SCREW, BOOT BAND

46

5PA-2314H-L0-00

PROTECTER COMP., 1

PROTECTER COMP., 1

47

4XL-2153A-10-00

Эмблема

Эмблема

48

5PA-2314J-L0-00

PROTECTER COMP., 2

PROTECTER COMP., 2

49

4XL-2153A-10-00

Эмблема

Эмблема

50

BOLT, FLANGE (SMALL HEAD)

BOLT, FLANGE (SMALL HEAD)

51

5PA-23318-00-00

WIRE, HOLDER 1

WIRE, HOLDER 1

52

Болт

Болт
