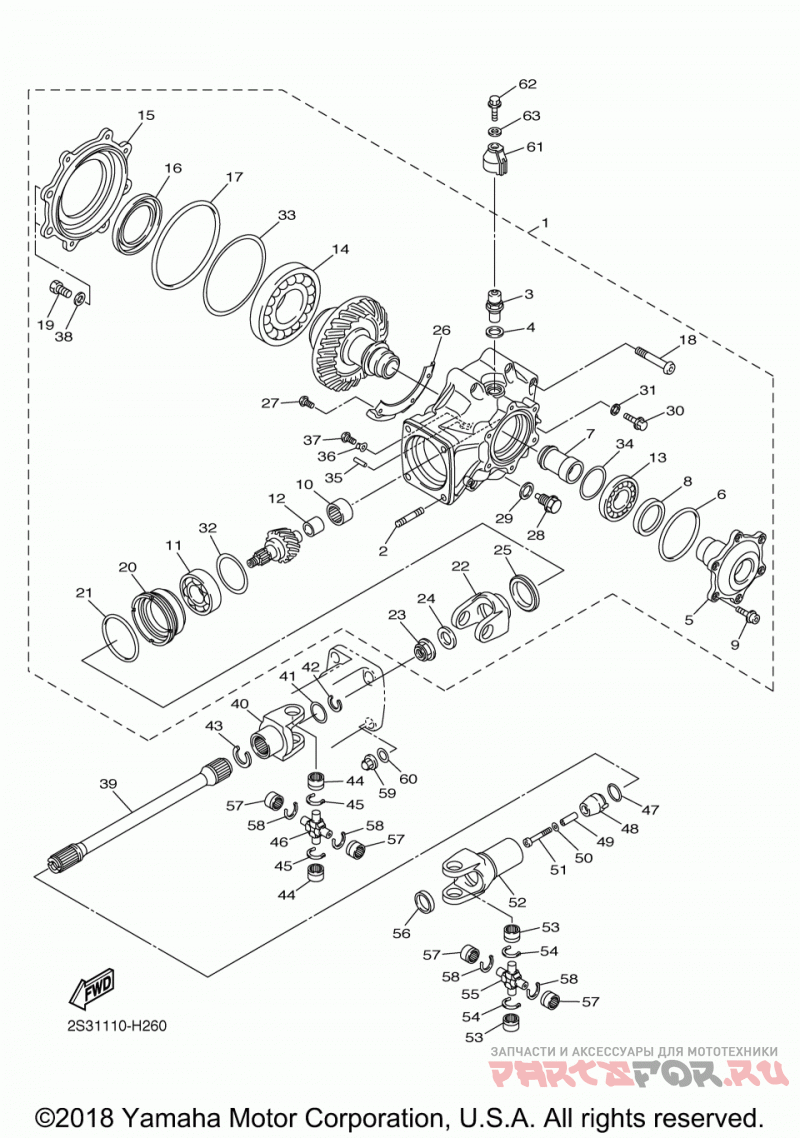

Ведущий вал

Yamaha (Америка) VMAX (VMX17JCGY/VMX17JGY)

Yamaha (Америка)
#oem кодцена
1
2S3-46101-10-00
REAR AXLE GEAR CASE ASSY
3
2S3-17509-00-00
. .BREATHER ASSY
4
90430-22123-00
. .GASKET
5
2S3-46296-20-00
. .PLATE
6
93210-92448-00
. O-RING
7
2S3-46153-00-00
. .COLLAR, GUIDE
8
93102-48014-00
. .OIL SEAL
9
90110-06333-00
. .BOLT, HEXAGON SOCKET HEAD
10
93311-62592-00
. .BEARING
11
93306-20724-00
. .BEARING
12
2S3-46122-00-00
. .RACE, INNER
13
93316-01003-00
. BEARING
14
93316-01901-00
. .BEARING
15
2S3-46152-00-00
. .HOUSING, BEARING
16
93102-80008-00
. .OIL SEAL
17
93211-594A4-00
. .O-RING
18
92014-08060-00
. .BOLT, BUTTON HEAD
19
90101-12037-00
. .BOLT
20
2S3-46125-00-00
. .RETAINER, BEARING
21
93210-86003-00
. .O-RING
22
2S3-17556-01-00
. YOKE, JOINT
23
90179-20015-00
. .NUT
24
90208-22004-00
. .WASHER, CONICAL SPRING
25
93102-45014-00
. .OIL SEAL
26
2S3-46114-00-00
. .PLATE, COVER
27
90149-06030-00
. .SCREW
28
90340-14004-00
. .PLUG, STRAIGHT SCREW
29
214-11198-01-00
. .GASKET
30
95024-06014-00
. . BOLT, FLG.(SMALL HEAD)
31
90430-06166-00
. GASKET
32
2S3-46119-00-00
. .SHIM, THRUST (T0.15)
32
2S3-46119-10-00
. .SHIM, THRUST (T0.3)
32
2S3-46119-20-00
. .SHIM, THRUST (T0.4)
32
2S3-46119-30-00
. .SHIM, THRUST (T0.45)
32
2S3-46119-40-00
. .SHIM, THRUST (T0.5)
32
2S3-46119-50-00
. .SHIM, THRUST (T0.6)
32
2S3-46119-60-00
. .SHIM, THRUST (T0.2)
32
2S3-46119-70-00
. .SHIM, THRUST (T0.25)
33
2S3-46117-00-00
. .SHIM, RING GEAR (T0.1)
33
2S3-46117-10-00
. .SHIM, RING GEAR (T0.15)
33
2S3-46117-20-00
. .SHIM, RING GEAR (T0.2)
33
2S3-46117-30-00
. .SHIM, RING GEAR (T0.25)
33
2S3-46117-40-00
. .SHIM, RING GEAR (T0.3)
33
2S3-46117-50-00
. .SHIM, RING GEAR (T0.35)
33
2S3-46117-60-00
. .SHIM, RING GEAR (T0.4)
33
2S3-46117-70-00
. .SHIM, RING GEAR (T0.45)
33
2S3-46117-80-00
. .SHIM, RING GEAR (T0.5)
34
2S3-46118-00-00
. .WASHER, THRUST (T1.2)
34
2S3-46118-10-00
. .WASHER, THRUST (T1.3)
34
2S3-46118-20-00
. .WASHER, THRUST (T1.4)
34
2S3-46118-30-00
. .WASHER, THRUST (T1.5)
34
2S3-46118-40-00
. .WASHER, THRUST (T1.6)
34
2S3-46118-50-00
. .WASHER, THRUST (T1.7)
34
2S3-46118-60-00
. .WASHER, THRUST (T1.8)
34
2S3-46118-70-00
. .WASHER, THRUST (T1.9)
34
2S3-46118-80-00
. .WASHER, THRUST (T2.0)
34
2S3-46118-90-00
. .WASHER, THRUST (T2.1)
35
93605-23164-00
. .PIN, DOWEL
36
2S3-46862-00-00
. .HOLDER
37
90149-06030-00
. .SCREW
38
90201-12033-00
. .WASHER, PLATE
39
2S3-46172-01-00
Вал ведущий
40
2S3-17556-01-00
Вилка
41
90201-29M01-00
.WASHER, PLATE
42
99009-28400-00
Пружинное стопорное кольцо
43
93440-32194-00
Пружинное стопорное кольцо
44
93399-99965-00
.BEARING
45
93440-23197-00
.CIRCLIP
46
1YW-46187-10-00
..SPIDER
47
93210-28763-00
Уплотнительное кольцо
48
2S3-46231-00-00
Крышка
49
90387-06235-00
Манжета
50
92903-06200-00
Шайба
51
91317-06045-00
BOLT, HEXAGON SOCKET HEAD
52
2S3-46186-00-00
Вилка
53
93399-99965-00
.BEARING
54
93440-23197-00
.CIRCLIP
55
1YW-46187-10-00
..SPIDER
56
90331-37001-00
Заглушка
57
93399-99965-00
.BEARING
58
93440-23197-00
.CIRCLIP
59
90176-10075-00
Гайка
60
92990-10600-00
Шайба
61
2S3-4613F-00-00
Крышка 1
62
95024-06020-00
BOLT, FLANGE (SMALL HEAD)
63
90430-06014-00
Прокладка
