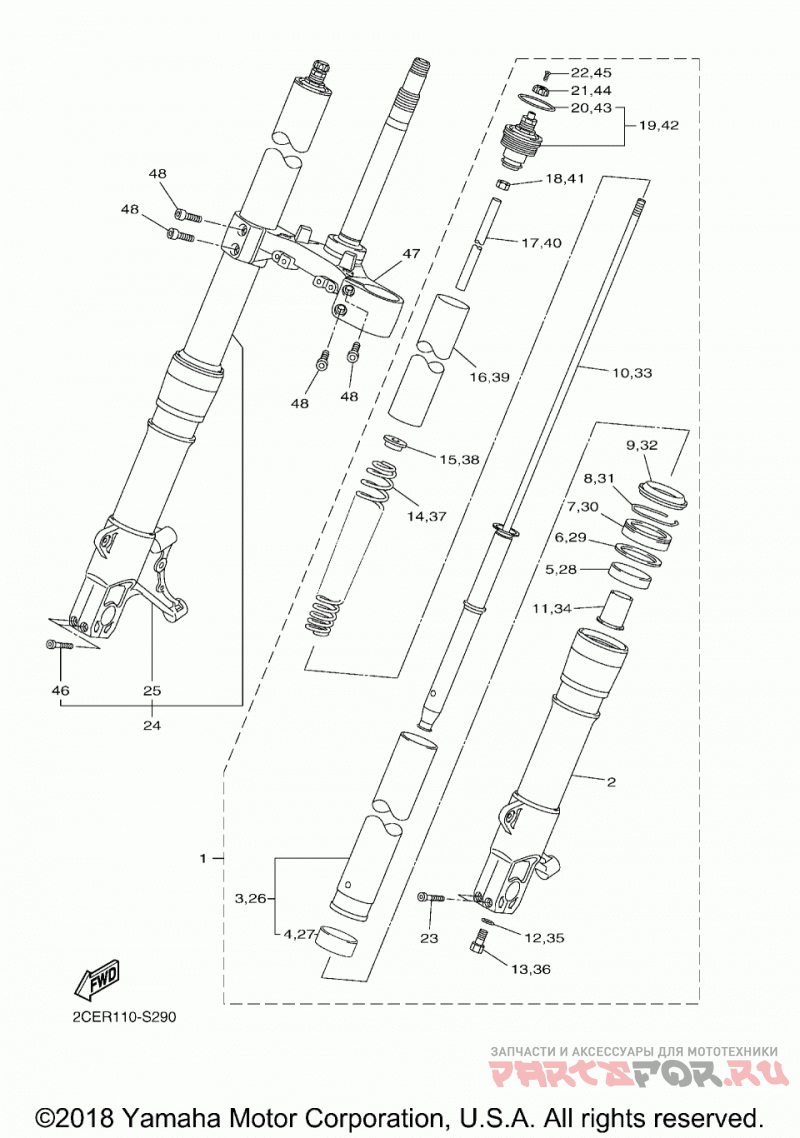

Передняя вилка

Yamaha (Америка) V-MAX (VMX17JCGY/VMX17JGY)

Yamaha (Америка)
#oem кодцена
1
2CE-23102-10-00
FRONT FORK ASSY (L.H)
2
2CE-23106-10-00
. .OUTER TUBE COMP.
3
2CE-23110-00-00
. . INNER TUBE COMP. 1
4
2S3-23135-00-00
. . ..METAL, SLIDE 2
5
2S3-23125-00-00
. .METAL, SLIDE 1
6
2S3-23115-00-00
. .SEAT 1
7
2S3-23145-00-00
. .OIL SEAL
8
2CE-23156-00-00
. .RING, SNAP
9
2S3-23144-00-00
. .SEAL, DUST
10
2CE-23170-00-00
. .CYLINDER COMP., FRONT FORK
11
5UX-23173-00-00
. .SPINDLE, TAPER
12
509-23158-L0-00
. .GASKET
13
5UX-23181-00-00
. .BOLT, HEXAGON SOCKET HEAD
14
2CE-23141-00-00
. .SPRING, FRONT FORK
15
2CE-23142-00-00
. .SEAT, SPRING UPPER
16
2CE-23104-00-00
. .REINF. COMP.
17
2CE-23118-00-00
. .SPACER
18
5UX-23778-00-00
. .NUT
19
2CE-23111-00-00
. .BOLT, CAP
20
CS4-43862-40-00
. . ..O-RING
21
5JW-2319W-00-00
. .KNOB (TEN)
22
1MC-23119-10-00
. .SCREW
23
91314-08045-00
. .BOLT, HEXAGON SOCKET HEAD
24
2CE-23103-10-00
FRONT FORK ASSY (R.H)
25
2CE-23107-10-00
. .OUTER TUBE COMP.
26
2CE-23110-00-00
. . INNER TUBE COMP. 1
27
2S3-23135-00-00
. . ..METAL, SLIDE 2
28
2S3-23125-00-00
. .METAL, SLIDE 1
29
2S3-23115-00-00
. .SEAT 1
30
2S3-23145-00-00
. .OIL SEAL
31
2CE-23156-00-00
. .RING, SNAP
32
2S3-23144-00-00
. .SEAL, DUST
33
2CE-23170-00-00
. .CYLINDER COMP., FRONT FORK
34
5UX-23173-00-00
. .SPINDLE, TAPER
35
509-23158-L0-00
. .GASKET
36
5UX-23181-00-00
. .BOLT, HEXAGON SOCKET HEAD
37
2CE-23141-00-00
. .SPRING, FRONT FORK
38
2CE-23142-00-00
. .SEAT, SPRING UPPER
39
2CE-23104-00-00
. .REINF. COMP.
40
2CE-23118-00-00
. .SPACER
41
5UX-23778-00-00
. .NUT
42
2CE-23111-00-00
. .BOLT, CAP
43
CS4-43862-40-00
. . ..O-RING
44
5JW-2319W-00-00
. .KNOB (TEN)
45
1MC-23119-10-00
. .SCREW
46
91314-08045-00
. .BOLT, HEXAGON SOCKET HEAD
47
2CE-23340-00-00
Нижний кронштейн
48
91314-08025-00
BOLT, HEXAGON SOCKET HEAD
