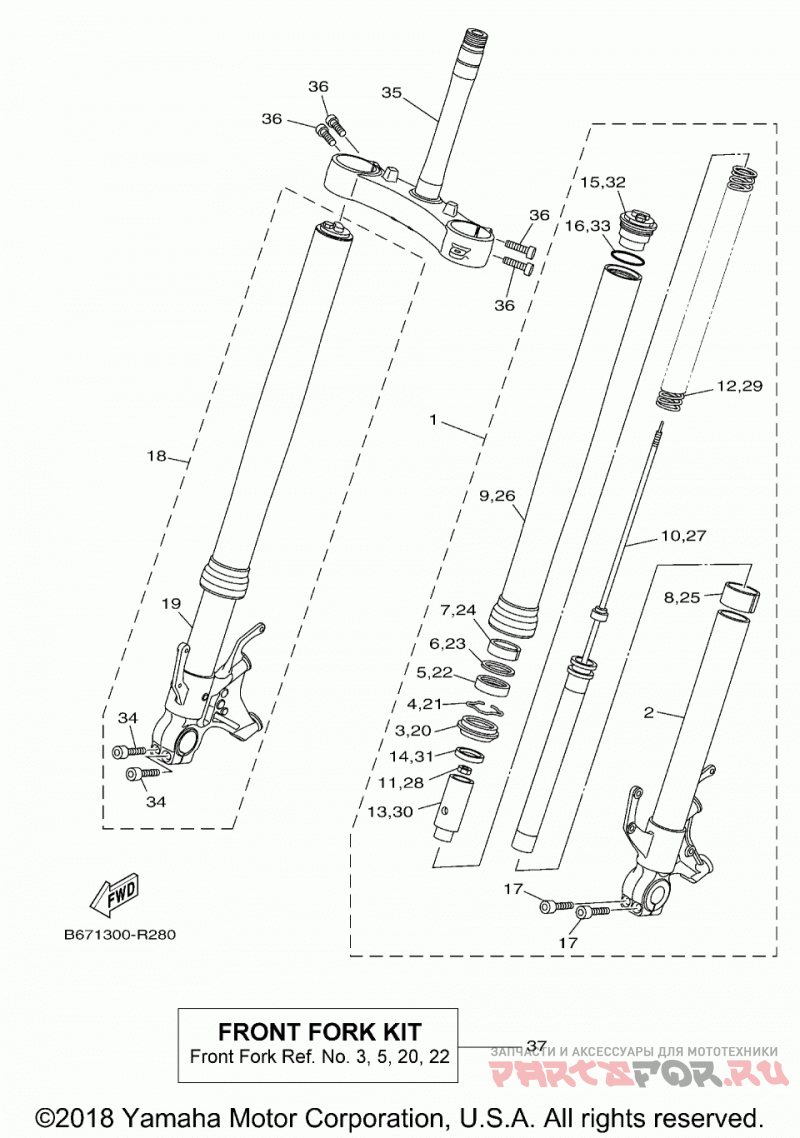

Передняя вилка

Yamaha (Америка) MT10 (MT10JCGY/MT10JL/MT10JGY/MT10JCL)

Yamaha (Америка)
#oem кодцена
1
B67-23102-10-00
FRONT FORK ASSY (L.H)
2
2CR-23110-00-00
. . INNER TUBE COMP. 1
3
4PU-23144-00-00
. SEAL, DUST
4
4V4-23153-L0-00
. .RING, SNAP
5
4PU-23145-01-00
. OIL SEAL
6
5PW-23146-00-00
. .WASHER, OIL SEAL
7
2CR-23125-00-00
. .METAL, SLIDE 1
8
2CR-23171-00-00
. .PISTON, FRONT FORK
9
2CR-23136-10-00
. TUBE, OUTER 2
10
B67-23170-00-00
. .CYLINDER COMP., FRONT FORK
11
3LC-23357-00-00
. .NUT
12
B67-23141-00-00
. .SPRING, FRONT FORK
13
2CR-23118-00-00
. .SPACER
14
2CR-23117-00-00
. .GUIDE, SPRING
15
2CR-23111-10-00
. .BOLT, CAP
16
39P-23147-00-00
. .O-RING
17
91314-08040-00
. .BOLT, HEXAGON SOCKET HEAD
18
B67-23103-10-00
FRONT FORK ASSY (R.H)
19
2CR-23120-00-00
. . INNER TUBE COMP. 2
20
4PU-23144-00-00
. SEAL, DUST
21
4V4-23153-L0-00
. .RING, SNAP
22
4PU-23145-01-00
. OIL SEAL
23
5PW-23146-00-00
. .WASHER, OIL SEAL
24
2CR-23125-00-00
. .METAL, SLIDE 1
25
2CR-23171-00-00
. .PISTON, FRONT FORK
26
2CR-23136-10-00
. TUBE, OUTER 2
27
B67-23170-00-00
. .CYLINDER COMP., FRONT FORK
28
3LC-23357-00-00
. .NUT
29
B67-23141-00-00
. .SPRING, FRONT FORK
30
2CR-23118-00-00
. .SPACER
31
2CR-23117-00-00
. .GUIDE, SPRING
32
2CR-23111-10-00
. .BOLT, CAP
33
39P-23147-00-00
. .O-RING
34
91314-08040-00
. .BOLT, HEXAGON SOCKET HEAD
35
B67-23340-00-00
Нижний кронштейн
36
91314-08030-00
BOLT, HEXAGON SOCKET HEAD
37
4PU-W003B-00-00
FORK SEAL KIT
