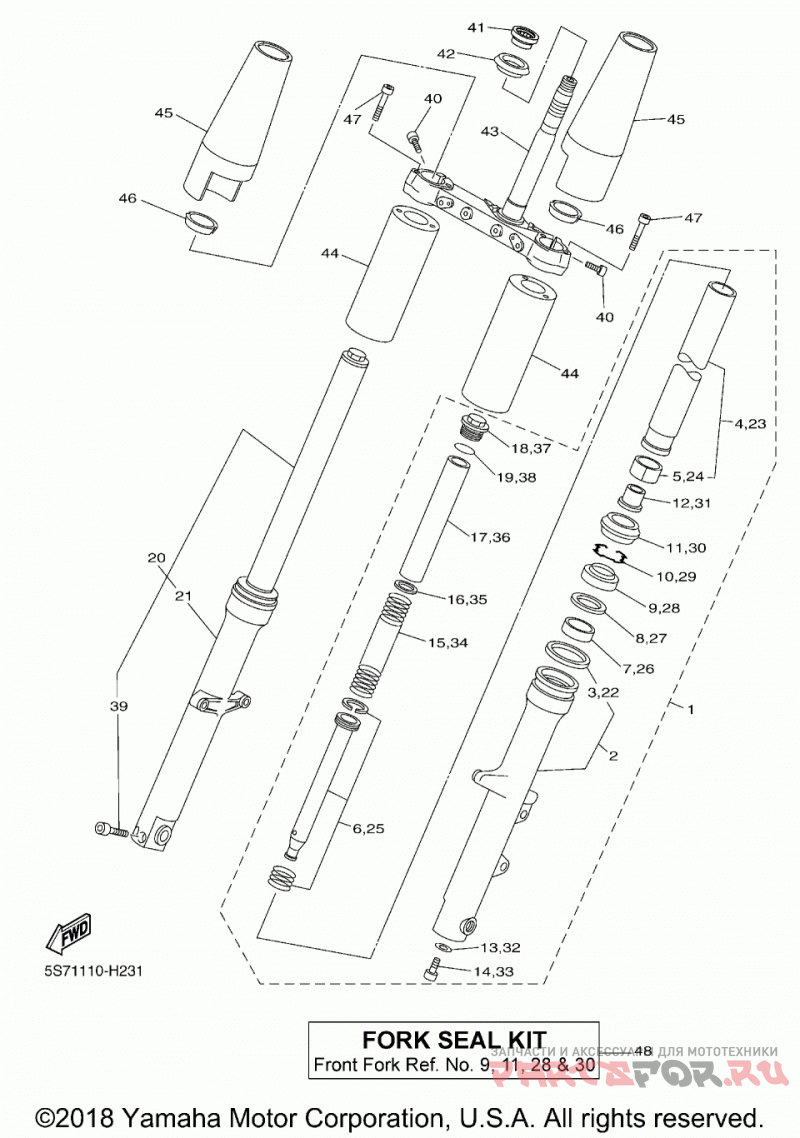

Передняя вилка

Yamaha (Америка) V STAR 950 TOURER (XVS95CTHCR/XVS95CTHR)

Yamaha (Америка)
#oem кодцена
1
5S7-23102-01-00
FRONT FORK ASSY (L.H)
2
5S7-23126-00-00
. .TUBE, OUTER (L.H)
3
5BN-23193-00-00
. . ..GUIDE, BOOT
4
3D8-23110-00-00
. INNER TUBE COMP. 1
5
5BN-23171-00-00
. . ..PISTON, FRONT FORK
6
5S7-23170-00-00
. .CYLINDER COMP., FRONT FORK
7
4FM-23125-40-00
. .METAL, SLIDE 1
8
36Y-23146-10-00
. .WASHER, OIL SEAL
9
4EB-23145-01-00
. OIL SEAL
10
26H-23156-00-00
. .RING, SNAP
11
4EB-23144-00-00
. SEAL, DUST
12
4YR-23173-00-00
. .SPINDLE, TAPER
13
509-23158-L0-00
. .GASKET
14
3D8-23181-00-00
. .BOLT, HEXAGON SOCKET HEAD
15
5S7-23141-00-00
. .SPRING, FRONT FORK
16
4DW-23149-40-00
. .WASHER, SPRING UPPER
17
5EL-23118-00-00
. .SPACER
18
1D0-23111-00-00
. .BOLT, CAP
19
43F-23188-10-00
. .O-RING
20
5S7-23103-01-00
FRONT FORK ASSY (R.H)
21
5S7-23136-00-00
. .TUBE, OUTER 2
22
5BN-23193-00-00
. . ..GUIDE, BOOT
23
3D8-23110-00-00
. INNER TUBE COMP. 1
24
5BN-23171-00-00
. . ..PISTON, FRONT FORK
25
5S7-23170-00-00
. .CYLINDER COMP., FRONT FORK
26
4FM-23125-40-00
. .METAL, SLIDE 1
27
36Y-23146-10-00
. .WASHER, OIL SEAL
28
4EB-23145-01-00
. OIL SEAL
29
26H-23156-00-00
. .RING, SNAP
30
4EB-23144-00-00
. SEAL, DUST
31
4YR-23173-00-00
. .SPINDLE, TAPER
32
509-23158-L0-00
. .GASKET
33
3D8-23181-00-00
. .BOLT, HEXAGON SOCKET HEAD
34
5S7-23141-00-00
. .SPRING, FRONT FORK
35
4DW-23149-40-00
. .WASHER, SPRING UPPER
36
5EL-23118-00-00
. .SPACER
37
1D0-23111-00-00
. .BOLT, CAP
38
43F-23188-10-00
. .O-RING
39
91314-08035-00
. .BOLT, HEXAGON SOCKET HEAD
40
91314-10020-00
BOLT, HEXAGON SOCKET HEAD
41
93399-99932-00
Подшипник
42
3FV-23462-00-00
Изолирующая деталь
43
5S7-23340-01-00
Нижний кронштейн
44
3D8-23123-00-00
COVER, UNDER 1
45
3D8-23121-00-00
Кожух верхний 1
46
3D8-23163-00-00
Прокладка
47
3D8-23394-20-00
Болт
48
4EB-W003B-00-00
INCL. IN FORK SEAL KIT
