Передняя вилка для мотоциклов Yamaha (Америка) SR400 (SR400HCB/SR400HB) (2017)

Москва и регионы России

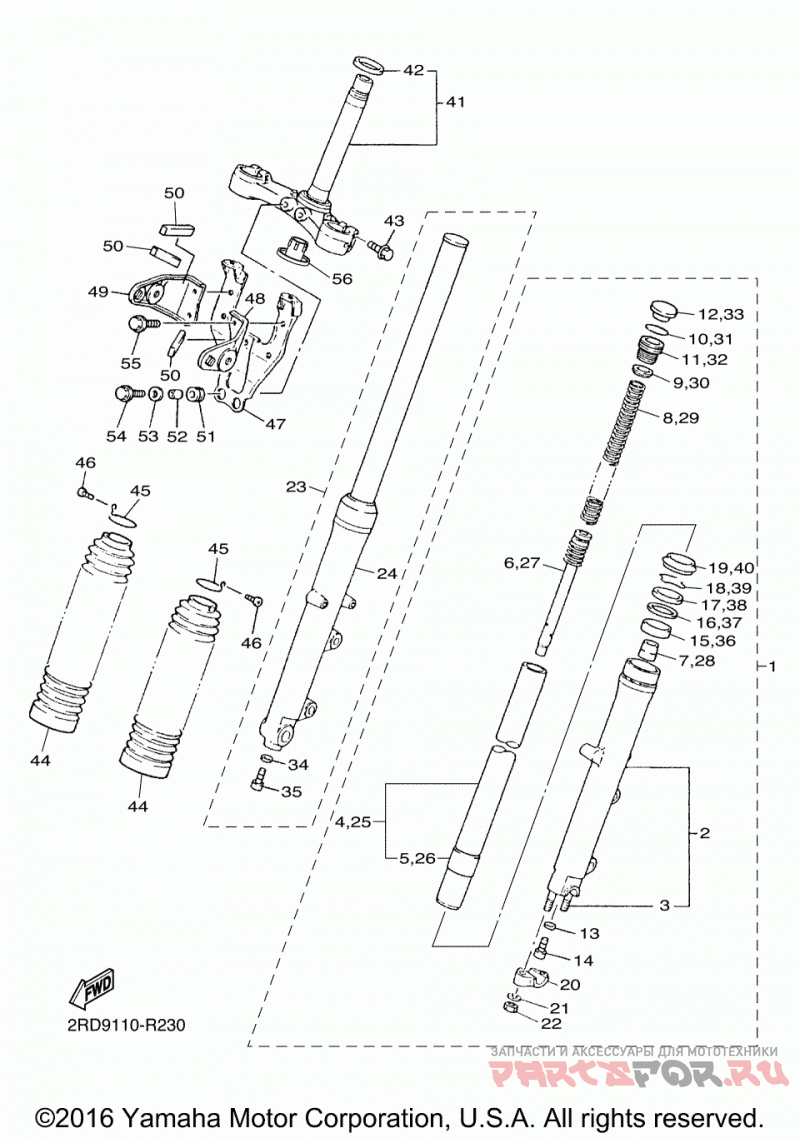

Передняя вилка

Yamaha (Америка) SR400 (SR400HCB/SR400HB)

Передняя вилка

#

oem код

название

цена

1

3HT-23102-10-00

FRONT FORK ASSY (L.H)

FRONT FORK ASSY (L.H)

2

3HT-23126-10-00

. .TUBE, OUTER (L.H)

. .TUBE, OUTER (L.H)

3

. . ..BOLT, STUD

. . ..BOLT, STUD

4

3HT-23110-10-00

. . INNER TUBE COMP. 1

. . INNER TUBE COMP. 1

5

5JX-23171-00-00

. . ..PISTON, FRONT FORK

. . ..PISTON, FRONT FORK

6

3HT-23170-10-00

. .CYLINDER COMP., FRONT FORK

. .CYLINDER COMP., FRONT FORK

7

5JX-23173-00-00

. .SPINDLE, TAPER

. .SPINDLE, TAPER

8

3HT-23141-10-00

. .SPRING, FRONT FORK

. .SPRING, FRONT FORK

9

1JN-23149-00-00

. .WASHER, SPRING UPPER

. .WASHER, SPRING UPPER

10

2F0-23114-00-00

. .GASKET

. .GASKET

11

2J4-23111-30-00

. .BOLT, CAP

. .BOLT, CAP

12

1T3-23168-50-00

. .CAP, FRONT FORK

. .CAP, FRONT FORK

13

509-23158-L0-00

. .GASKET

. .GASKET

14

3D8-23181-00-00

. .BOLT, HEXAGON SOCKET HEAD

. .BOLT, HEXAGON SOCKET HEAD

15

5JX-23125-00-00

. .METAL, SLIDE 1

. .METAL, SLIDE 1

16

5K5-23149-00-00

. .WASHER, SPRING UPPER

. .WASHER, SPRING UPPER

17

5JX-23145-00-00

. .OIL SEAL

. .OIL SEAL

18

4A1-23156-00-00

. .RING, SNAP

. .RING, SNAP

19

5JX-23144-00-00

. .SEAL, DUST

. .SEAL, DUST

20

341-23167-50-00

. .HOLDER, AXLE

. .HOLDER, AXLE

21

. .WASHER, PLATE

. .WASHER, PLATE

22

3HT-23357-10-00

. .NUT

. .NUT

23

3HT-23103-10-00

FRONT FORK ASSY (R.H)

FRONT FORK ASSY (R.H)

24

3HT-23136-10-00

. .TUBE, OUTER (R.H)

. .TUBE, OUTER (R.H)

25

3HT-23110-10-00

. . INNER TUBE COMP. 1

. . INNER TUBE COMP. 1

26

5JX-23171-00-00

. . ..PISTON, FRONT FORK

. . ..PISTON, FRONT FORK

27

3HT-23170-10-00

. .CYLINDER COMP., FRONT FORK

. .CYLINDER COMP., FRONT FORK

28

5JX-23173-00-00

. .SPINDLE, TAPER

. .SPINDLE, TAPER

29

3HT-23141-10-00

. .SPRING, FRONT FORK

. .SPRING, FRONT FORK

30

1JN-23149-00-00

. .WASHER, SPRING UPPER

. .WASHER, SPRING UPPER

31

2F0-23114-00-00

. .GASKET

. .GASKET

32

2J4-23111-30-00

. .BOLT, CAP

. .BOLT, CAP

33

1T3-23168-50-00

. .CAP, FRONT FORK

. .CAP, FRONT FORK

34

509-23158-L0-00

. .GASKET

. .GASKET

35

3D8-23181-00-00

. .BOLT, HEXAGON SOCKET HEAD

. .BOLT, HEXAGON SOCKET HEAD

36

5JX-23125-00-00

. .METAL, SLIDE 1

. .METAL, SLIDE 1

37

5K5-23149-00-00

. .WASHER, SPRING UPPER

. .WASHER, SPRING UPPER

38

5JX-23145-00-00

. .OIL SEAL

. .OIL SEAL

39

4A1-23156-00-00

. .RING, SNAP

. .RING, SNAP

40

5JX-23144-00-00

. .SEAL, DUST

. .SEAL, DUST

41

3HT-23340-10-00

Нижний кронштейн

Нижний кронштейн

42

164-23462-00-00

. .SEAL, DUST

. .SEAL, DUST

43

Болт

Болт

44

1JN-23191-00-00

чехол

чехол

45

1JN-23192-00-00

Хомут

Хомут

46

Винт

Винт

47

2J2-23121-04-00

Кожух верхний 1

Кожух верхний 1

48

3HT-23131-00-00

STEY, HEADLIGHT

STEY, HEADLIGHT

49

3HT-23174-00-00

Кронштейн

Кронштейн

50

3HT-2317J-01-00

Демпфер

Демпфер

51

Уплотнитель резиновый

Уплотнитель резиновый

52

Манжета

Манжета

53

Шайба

Шайба

54

Болт

Болт

55

Болт

Болт

56

4KM-23123-01-00

COVER, UNDER 1

COVER, UNDER 1
