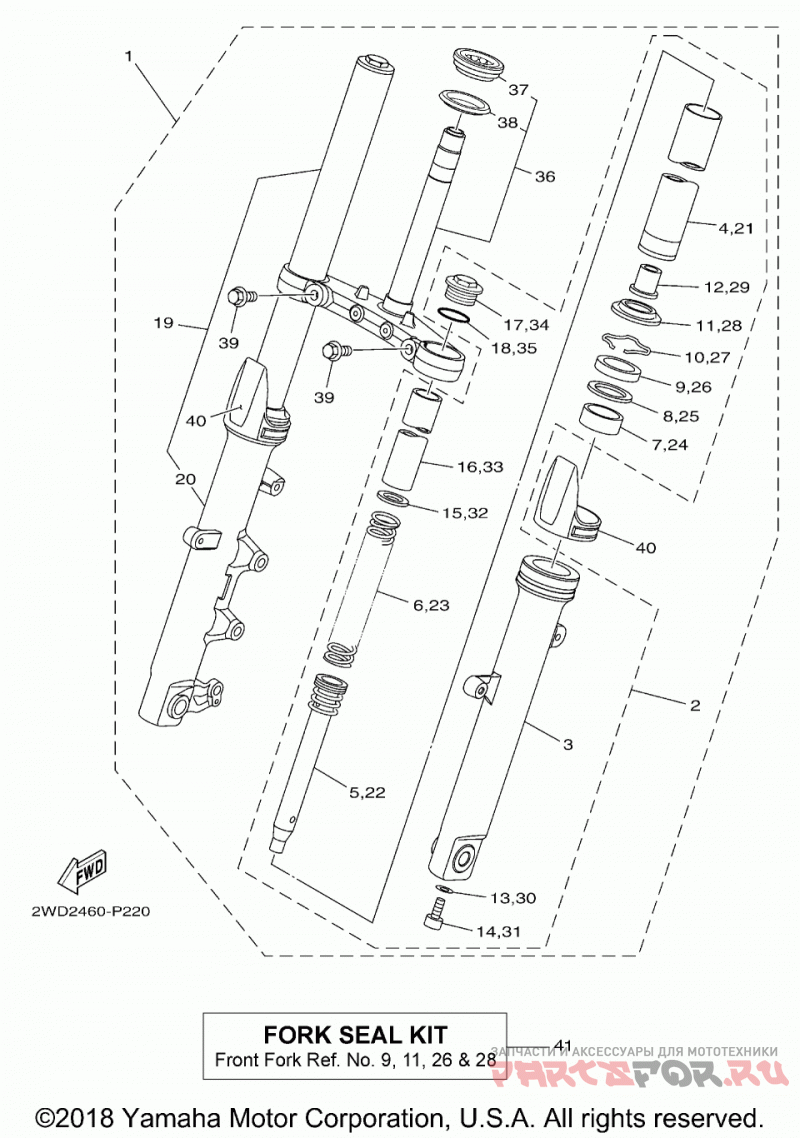

Передняя вилка

Yamaha (Америка) R3ABS (YZFR3AHB/YZFR3AHW)

Yamaha (Америка)
#oem кодцена
1
2WD-F3100-00-00
FRONT FORK ASSY
2
1WD-F3102-00-00
. .FRONT FORK ASSY (L.H)
3
1WD-F3126-00-00
. . ..TUBE, OUTER (L.H)
4
1WD-F3110-00-00
. . . . INNER TUBE COMP. 1
5
1WD-F3170-00-00
. . ..CYLINDER COMP., FRONT FOR
6
1WD-F3141-00-00
. . ..SPRING, FRONT FORK
7
45P-F3125-00-00
. . ..METAL, SLIDE 1
8
45P-F3146-00-00
. . ..WASHER, OIL SEAL
9
45P-F3145-00-00
. . OIL SEAL
10
45P-F3156-00-00
. . ..RING, SNAP
11
45P-F3144-00-00
. . SEAL, DUST
12
1WD-F3173-00-00
. . ..SPINDLE, TAPER
13
509-23158-L0-00
. . ..GASKET
14
3D8-23181-00-00
. . ..BOLT, HEXAGON SOCKET HEAD
15
45P-F3149-00-00
. . ..WASHER, SPRING UPPER
16
1WD-F3118-00-00
. . ..SPACER
17
45P-F3111-00-00
. . ..BOLT, CAP
18
45P-F3188-00-00
. . ..O-RING
19
2WD-F3103-00-00
. .FRONT FORK ASSY (R.H)
20
2WD-F3136-00-00
. . ..TUBE, OUTER
21
1WD-F3110-00-00
. . . . INNER TUBE COMP. 1
22
1WD-F3170-00-00
. . ..CYLINDER COMP., FRONT FOR
23
1WD-F3141-00-00
. . ..SPRING, FRONT FORK
24
45P-F3125-00-00
. . ..METAL, SLIDE 1
25
45P-F3146-00-00
. . ..WASHER, OIL SEAL
26
45P-F3145-00-00
. . OIL SEAL
27
45P-F3156-00-00
. . ..RING, SNAP
28
45P-F3144-00-00
. . SEAL, DUST
29
1WD-F3173-00-00
. . ..SPINDLE, TAPER
30
509-23158-L0-00
. . ..GASKET
31
3D8-23181-00-00
. . ..BOLT, HEXAGON SOCKET HEAD
32
45P-F3149-00-00
. . ..WASHER, SPRING UPPER
33
1WD-F3118-00-00
. . ..SPACER
34
45P-F3111-00-00
. . ..BOLT, CAP
35
45P-F3188-00-00
. . ..O-RING
36
1WD-F3340-00-00
. .UNDER BRACKET COMP.
37
93399-99932-00
. . BEARING
38
3FV-23462-00-00
. . SEAL, STEERING
39
45P-F3346-00-00
. .BOLT 1
40
1WS-2331G-00-00
. COVER
41
2MS-W003B-00-00
FORK SEAL KIT
