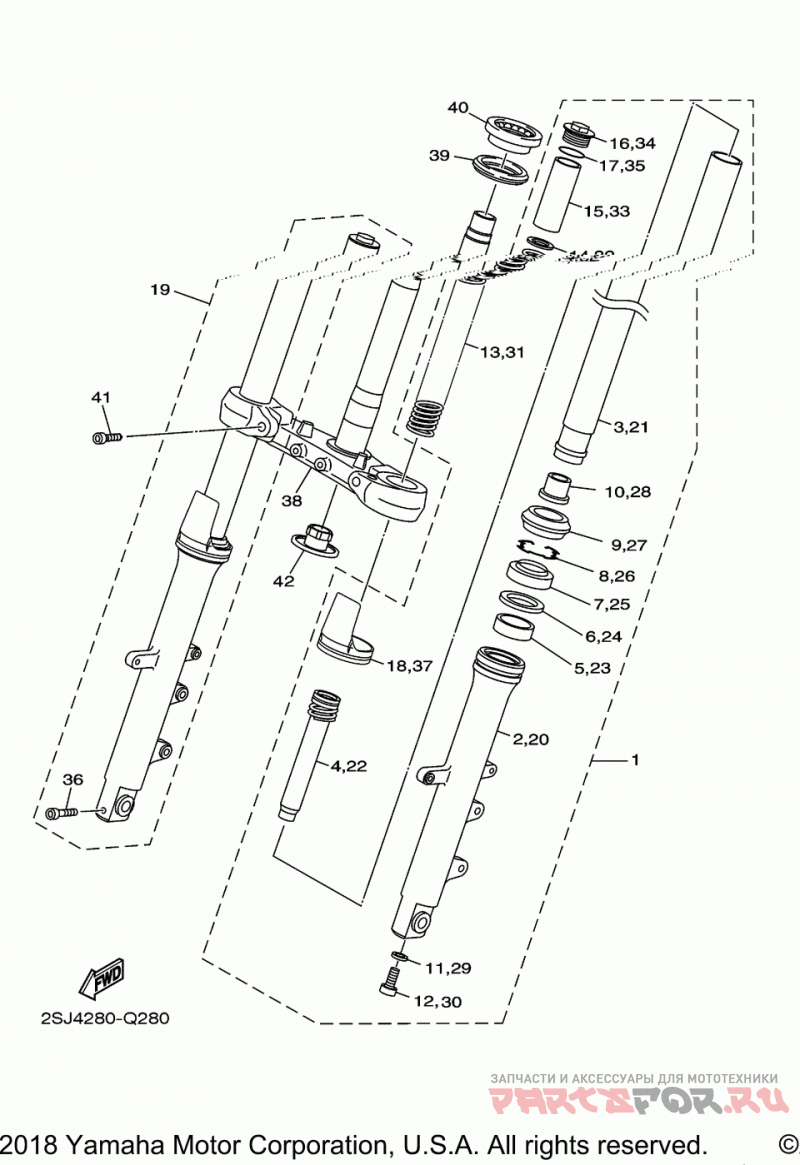

Передняя вилка

Yamaha (Америка) FZ6R (FZ6RHCS/FZ6RHS)

Yamaha (Америка)
#oem кодцена
1
B40-23102-00-00
FRONT FORK ASSY (L.H)
2
B40-23126-00-00
. .TUBE, OUTER (L.H)
3
B40-23110-00-00
. . INNER TUBE COMP. 1
4
B40-23170-00-00
. .CYLINDER COMP., FRONT FORK
5
4FM-23125-40-00
. .METAL, SLIDE 1
6
36Y-23146-10-00
. .WASHER, OIL SEAL
7
4EB-23145-01-00
. OIL SEAL
8
26H-23156-00-00
. .RING, SNAP
9
4EB-23144-00-00
. SEAL, DUST
10
4YR-23173-00-00
. .SPINDLE, TAPER
11
509-23158-L0-00
. .GASKET
12
3D8-23181-00-00
. .BOLT, HEXAGON SOCKET HEAD
13
B40-23141-00-00
. .SPRING, FRONT FORK
14
3EN-23149-50-00
. .WASHER, SPRING UPPER
15
4DW-23118-40-00
. .SPACER
16
1D0-23111-00-00
. .BOLT, CAP
17
43F-23188-10-00
. .O-RING
18
4PU-2331G-00-00
. COVER
19
B40-23103-00-00
FRONT FORK ASSY (R.H)
20
B40-23136-00-00
. .TUBE, OUTER 2
21
B40-23110-00-00
. . INNER TUBE COMP. 1
22
B40-23170-00-00
. .CYLINDER COMP., FRONT FORK
23
4FM-23125-40-00
. .METAL, SLIDE 1
24
36Y-23146-10-00
. .WASHER, OIL SEAL
25
4EB-23145-01-00
. OIL SEAL
26
26H-23156-00-00
. .RING, SNAP
27
4EB-23144-00-00
. SEAL, DUST
28
4YR-23173-00-00
. .SPINDLE, TAPER
29
509-23158-L0-00
. .GASKET
30
3D8-23181-00-00
. .BOLT, HEXAGON SOCKET HEAD
31
B40-23141-00-00
. .SPRING, FRONT FORK
32
3EN-23149-50-00
. .WASHER, SPRING UPPER
33
4DW-23118-40-00
. .SPACER
34
1D0-23111-00-00
. .BOLT, CAP
35
43F-23188-10-00
. .O-RING
36
91314-08040-00
. .BOLT, HEXAGON SOCKET HEAD
37
4PU-2331G-00-00
. COVER
38
B40-23340-00-00
Нижний кронштейн
39
3FV-23462-00-00
Изолирующая деталь
40
93399-99932-00
Подшипник
41
91314-10025-00
Болт
42
4KM-23123-01-00
COVER, UNDER 1
42
4EB-W003B-00-00
FORK SEAL KIT
