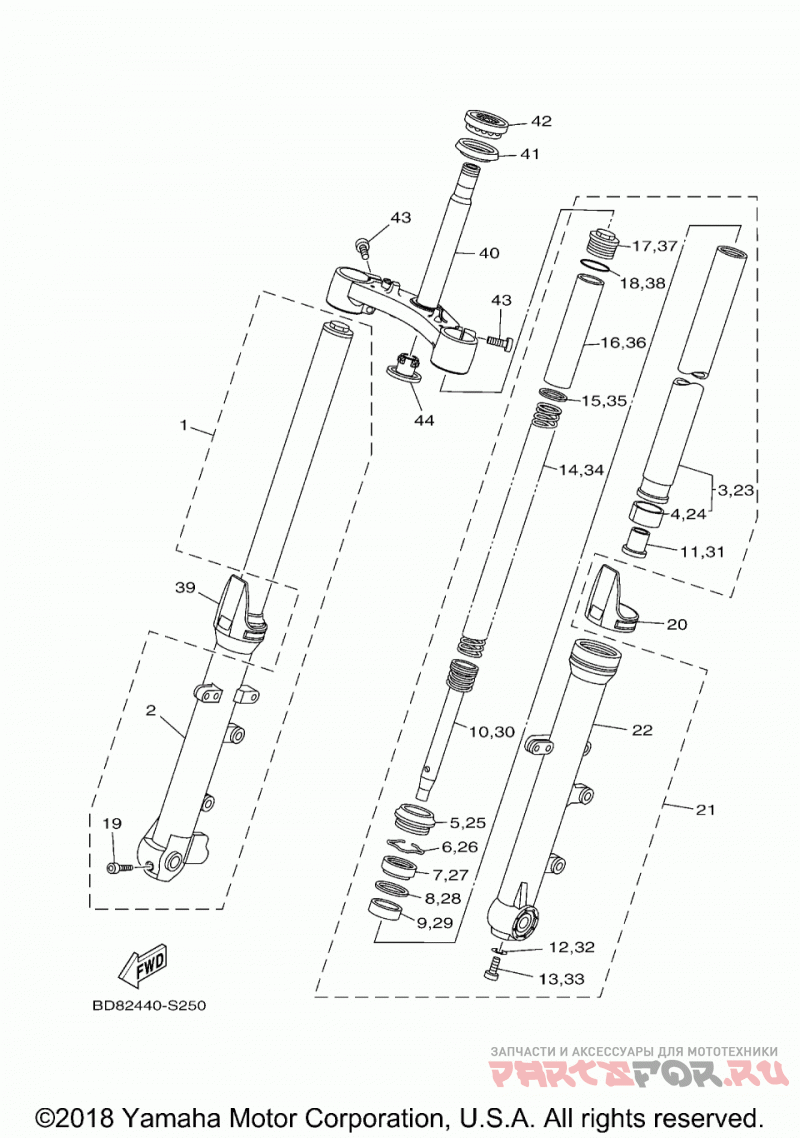

Передняя вилка

Yamaha (Америка) FZ07 (FZ07HCS/FZ07HS/FZ07HCL/FZ07HL/FZ07HR/FZ07HCR)

Yamaha (Америка)
#oem кодцена
3
1WS-23110-00-00
. . INNER TUBE COMP. 1
4
5BN-23171-00-00
. . ..PISTON, FRONT FORK
5
4EB-23144-00-00
. .SEAL, DUST
6
26H-23156-00-00
. .RING, SNAP
7
4EB-23145-01-00
. .OIL SEAL
8
36Y-23146-10-00
. .WASHER, OIL SEAL
9
4FM-23125-40-00
. .METAL, SLIDE 1
10
1WS-23170-00-00
. .CYLINDER COMP., FRONT FORK
11
4YR-23173-00-00
. .SPINDLE, TAPER
12
509-23158-L0-00
. .GASKET
13
3D8-23181-00-00
. .BOLT, HEXAGON SOCKET HEAD
14
1WS-23141-00-00
. .SPRING, FRONT FORK
15
3EN-23149-50-00
. .WASHER, SPRING UPPER
16
3FW-23118-00-00
. .SPACER
17
1D0-23111-00-00
. .BOLT, CAP
18
43F-23188-10-00
. .O-RING
19
91314-08040-00
. BOLT, HEXAGON SOCKET HEAD
20
1WS-2331G-00-00
Крышка
21
1WS-23102-01-00
FRONT FORK ASSY (L.H)
22
1WS-23126-01-00
. .TUBE, OUTER (L.H)
23
1WS-23110-00-00
. . INNER TUBE COMP. 1
24
5BN-23171-00-00
. . ..PISTON, FRONT FORK
25
4EB-23144-00-00
. .SEAL, DUST
26
26H-23156-00-00
. .RING, SNAP
27
4EB-23145-01-00
. .OIL SEAL
28
36Y-23146-10-00
. .WASHER, OIL SEAL
29
4FM-23125-40-00
. .METAL, SLIDE 1
30
1WS-23170-00-00
. .CYLINDER COMP., FRONT FORK
31
4YR-23173-00-00
. .SPINDLE, TAPER
32
509-23158-L0-00
. .GASKET
33
3D8-23181-00-00
. .BOLT, HEXAGON SOCKET HEAD
34
1WS-23141-00-00
. .SPRING, FRONT FORK
35
3EN-23149-50-00
. .WASHER, SPRING UPPER
36
3FW-23118-00-00
. .SPACER
37
1D0-23111-00-00
. .BOLT, CAP
38
43F-23188-10-00
. .O-RING
39
1WS-2331G-00-00
Крышка
40
1WS-23340-00-00
Нижний кронштейн
41
3FV-23462-00-00
Изолирующая деталь
42
93399-99932-00
Подшипник
43
91314-08030-00
BOLT, HEXAGON SOCKET HEAD
44
4KM-23123-01-00
COVER, UNDER 1
45
4EB-W003B-00-00
FORK SEAL KIT
