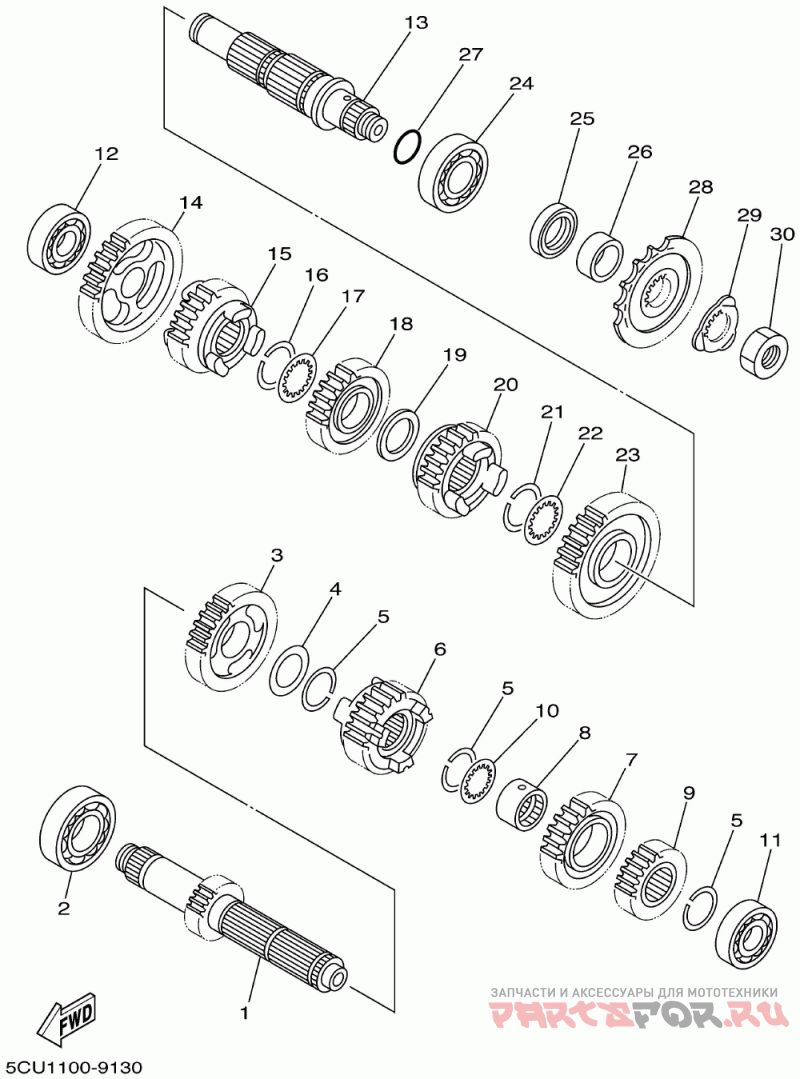

Трансмиссия для мотоциклов Yamaha (Америка) YZ250P (2002)

Москва и регионы России

Трансмиссия

Yamaha (Америка) YZ250P

Трансмиссия

#

oem код

название

цена

1

5BE-17411-00-00

Axle, Main (5nx1)

Axle, Main (5nx1)

2

Bearing (5nx1)

Bearing (5nx1)

3

5BE-17151-00-00

Gear, 5th Pinion (5nx1)

Gear, 5th Pinion (5nx1)

4

Washer, Plate (59w) (5nx1)

Washer, Plate (59w) (5nx1)

5

Circlip, Outer (5nx1)

Circlip, Outer (5nx1)

6

5CU-17131-01-00

Gear, 3rd Pinion (5nx1)

Gear, 3rd Pinion (5nx1)

7

5BE-17141-20-00

Gear, 4th Pinion (5nx1)

Gear, 4th Pinion (5nx1)

8

Collar (5nx1)

Collar (5nx1)

9

5BE-17121-00-00

Gear, 2nd Pinion (5nx1)

Gear, 2nd Pinion (5nx1)

10

Washer (5nx1)

Washer (5nx1)

11

Bearing (3xv) (5nx1)

Bearing (3xv) (5nx1)

12

Bearing (5nx1)

Bearing (5nx1)

13

5BE-17402-00-00

Drive Axle Assy (5nx1)

Drive Axle Assy (5nx1)

14

5BE-17211-00-00

Gear, 1st Wheel (5nx1)

Gear, 1st Wheel (5nx1)

15

5BE-17251-10-00

Gear, 5th Wheel (5nx1)

Gear, 5th Wheel (5nx1)

18

5BE-17231-00-00

Gear, 3rd Wheel (5nx1)

Gear, 3rd Wheel (5nx1)

20

5BE-17241-10-00

Gear, 4th Wheel (5nx1)

Gear, 4th Wheel (5nx1)

21

Circlip, Outer (5nx1)

Circlip, Outer (5nx1)

22

Washer (5nx1)

Washer (5nx1)

23

5BE-17221-00-00

Gear, 2nd Wheel (5nx1)

Gear, 2nd Wheel (5nx1)

24

Bearing (5nx1)

Bearing (5nx1)

25

Oil Seal, Sd-type (5nx1)

Oil Seal, Sd-type (5nx1)

26

Collar (5nx1)

Collar (5nx1)

27

O-ring (5nx1)

O-ring (5nx1)

28

Sprocket Drive (13t) Ap(5nx1)

Sprocket Drive (13t) Ap(5nx1)

28

Sprocket, Drive (1 Std(5nx1)

Sprocket, Drive (1 Std(5nx1)

29

Washer, Lock (5nx1)

Washer, Lock (5nx1)

30

Nut, Spec'l Shape (5nx1)

Nut, Spec'l Shape (5nx1)
