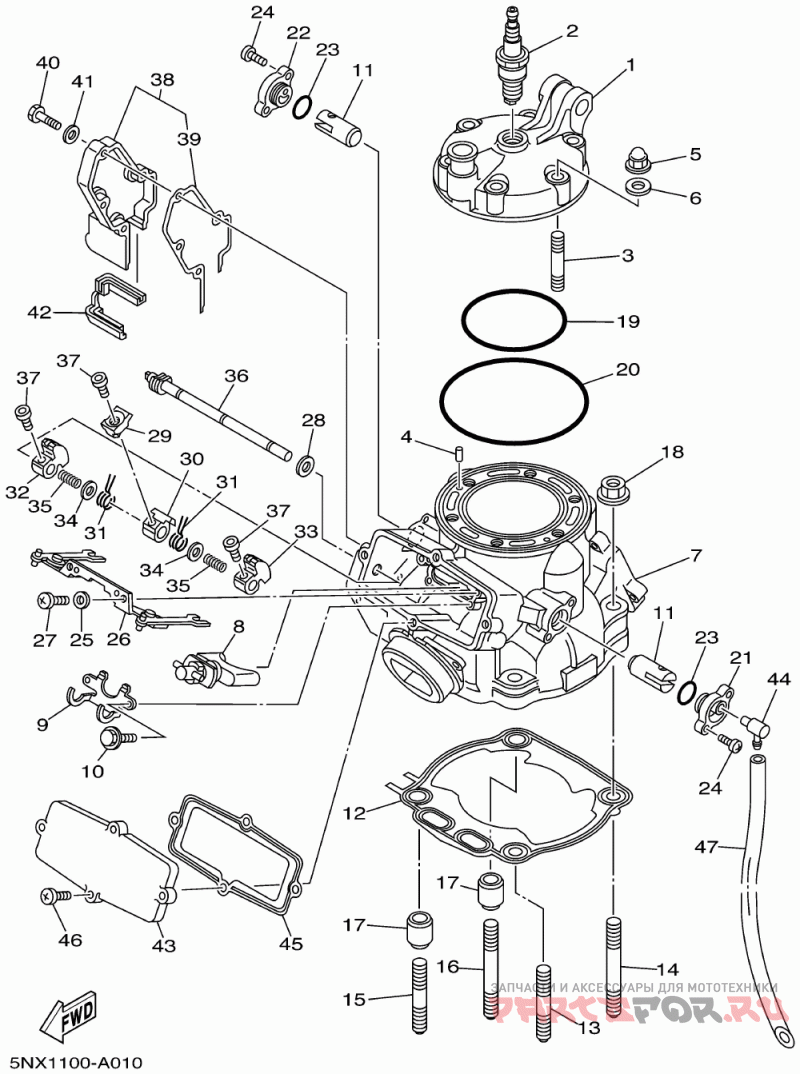

Головка цилиндра

Yamaha (Америка) YZ250P

Yamaha (Америка)
#oem кодцена
1
5MW-11111-01-00
Head, Cylinder 1 (5nx1)
2
NGK-BR8EG-00-00
Ngk Br8eg 4pk (5nx1)
3
90116-08394-00
Bolt, Stud (5nx1)
4
93604-08071-00
Pin, Dowel (5nx1)
5
90176-08026-00
Nut, Crown (5nx1)
6
90201-080L8-00
Washer, Plate (5nx1)
7
5MW-11311-01-00
Cylinder 1 (5nx1)
8
5NX-1131D-01-00
Valve Assy (5nx1)
9
5CU-1131U-10-00
Holder 3 (5nx1)
10
90109-05001-00
Screw, Binding (5nx1)
11
5CU-1132A-00-00
Valve 2 (5nx1)
12
5CU-11351-10-00
Gasket, Cylinder (5nx1)
13
90116-10314-00
Bolt, Stud (5nx1)
14
95617-10660-00
Bolt, Stud (5nx1)
17
99590-14016-00
Pin, Dowel (5nx1)
18
95707-10500-00
Nut, Flange (8ab) (5nx1)
19
93210-74316-00
O-ring (5nx1)
20
93211-02703-00
O-ring (55x) (5nx1)
21
5CU-1131E-01-00
Holder 1 (5nx1)
22
5CU-1131P-00-00
Holder 4 (5nx1)
23
93210-15639-00
O-ring (5nx1)
25
90201-057H5-00
Washer, Plate (5nx1)
26
5CU-11830-00-00
Link Assy (5nx1)
27
98907-05012-00
Bolt, Socket (5nx1)
28
93104-08040-00
Oil Seal, So-type (5nx1)
29
5NX-11395-00-00
Holder (5nx1)
30
4SS-11832-00-00
Lever, Link (5nx1)
31
90508-155B8-00
Spring, Torsion (5nx1)
32
5MW-1132E-00-00
Pulley 1 (5nx1)
33
5MW-1132F-00-00
Pulley 2 (5nx1)
34
90201-081G0-00
Washer, Plate (5nx1)
35
90501-046L6-00
Spring, Compression (5nx1)
36
5CU-1131V-00-00
Shaft 1 (5nx1)
37
91317-04008-00
Bolt (5nx1)
38
5CU-11991-00-00
Housing 1 (5nx1)
39
5CU-11993-00-00
Gasket (5nx1)
40
97027-05020-00
Bolt (3jk) (5nx1)
41
92907-05600-00
Washer (1rw) (5nx1)
42
5CU-11995-00-00
Seal, Housing (5nx1)
43
5CU-1131M-10-00
Cover (5nx1)
44
353-13115-01-00
Connector, Sctn Ppe (5nx1)
45
5CU-11354-00-00
Gasket (5nx1)
46
98907-05016-00
Bolt, Socket (5nx1)
47
90445-09M25-00
Hose (5nx1)
2
BR8-EG000-00-00
Ngk Br8eg 4pk (5nx1)
47
90445-092K1-00
Hose (5nx1)
