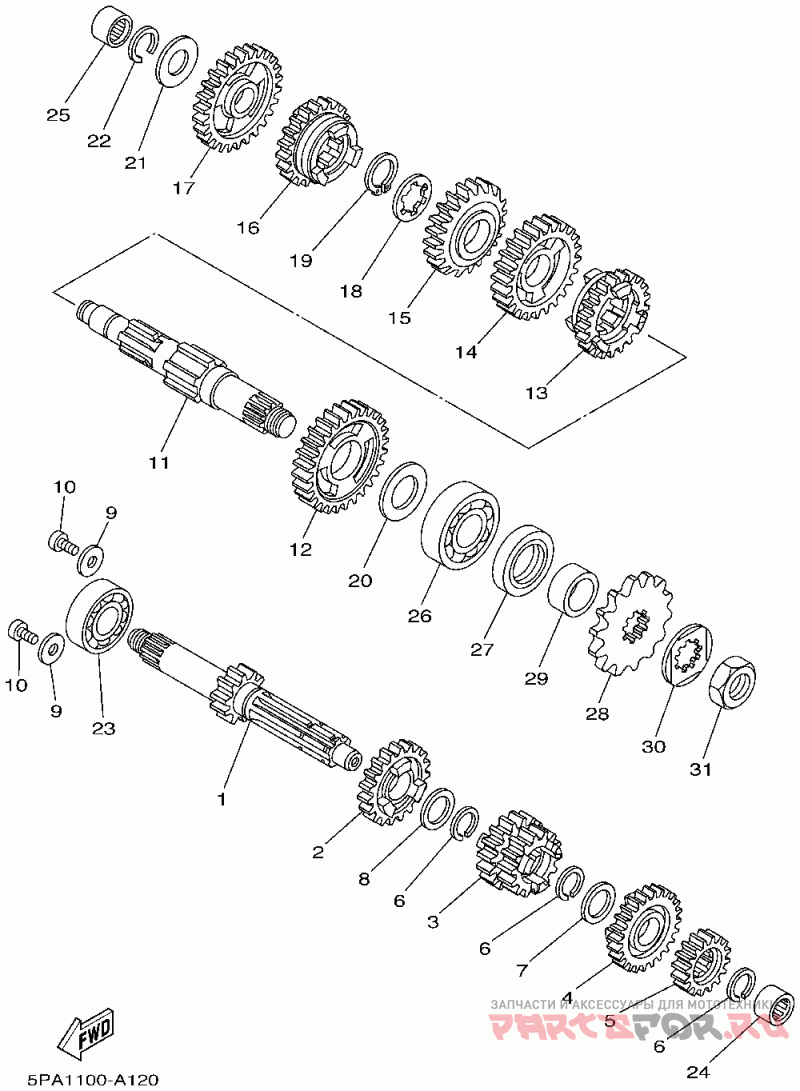

Трансмиссия

Yamaha (Америка) YZ 85

Yamaha (Америка)
#oem кодцена
1
5PA-17411-00-00
Деталь Axle, Main (5pa1)
2
4ES-17151-10-00
Деталь Gear, 5th Pinion (5pa1)
3
4ES-17131-03-00
Деталь Gear, 3rd Pinion (5pa1)
4
4ES-17161-10-00
Деталь Gear, 6th Pinion (5pa1)
5
4ES-17121-01-00
Деталь Gear, 2nd Pinion (5pa1)
6
93440-17064-00
Деталь Circlip, Outer (5pa1)
7
90209-14008-00
Деталь Washer (5pa1)
8
90201-17545-00
Деталь Washer, Plate (5pa1)
9
90201-065F3-00
Деталь Washer, Plate (5pa1)
10
98517-06012-00
Деталь Screw, Pan (5pa1)
11
5PA-17421-00-00
Деталь Axle, Drive (5pa1)
12
5PA-17221-00-00
Деталь Gear, 2nd Wheel (5pa1)
13
5PA-17261-00-00
Деталь Gear, 6th Wheel (5pa1)
14
4ES-17231-10-00
Деталь Gear, 3rd Wheel (5pa1)
15
5PA-17241-00-00
Деталь Gear, 4th Wheel (5pa1)
16
4ES-17251-00-00
Деталь Gear, 5th Wheel (5pa1)
17
4ES-17211-01-00
Деталь Gear, First Wheel (5pa1)
18
90209-16209-00
Деталь Washer, Spec'l Shap (5pa1)
19
93410-20038-00
Деталь Circlip, S-type (5pa1)
20
90201-204K8-00
Деталь Washer, Plate (5pa1)
21
164-17427-00-06
Деталь Shim 1 Ur(5pa1)
21
164-17427-00-10
Деталь Shim 1 Ur(5pa1)
21
90201-156F8-00
Деталь Washer, Plate (12w) Ur(5pa1)
22
93440-15012-00
Деталь Circlip, Outer (5pa1)
23
93306-20310-00
Деталь Bearing (5pa1)
24
93317-11245-00
Деталь Bearing, Cyl.#17 (5pa1)
25
93315-31502-00
Деталь Bearing, Cyl.#15 (5pa1)
26
93306-20461-00
Деталь Bearing (5pa1)
27
93102-26042-00
Деталь Oil Seal, Sd-type (5pa1)
28
9382A-14227-00
Деталь Sprocket, Drive (14t Std(5pa1)
28
9382A-15228-00
Деталь Sprocket, Drive (15t Ap(5pa1)
29
90387-202A0-00
Деталь Collar (5pa1)
30
90215-20261-00
Деталь Washer, Lock (5pa1)
31
90179-16226-00
Деталь Nut, Spec'l Shape (5pa1)
