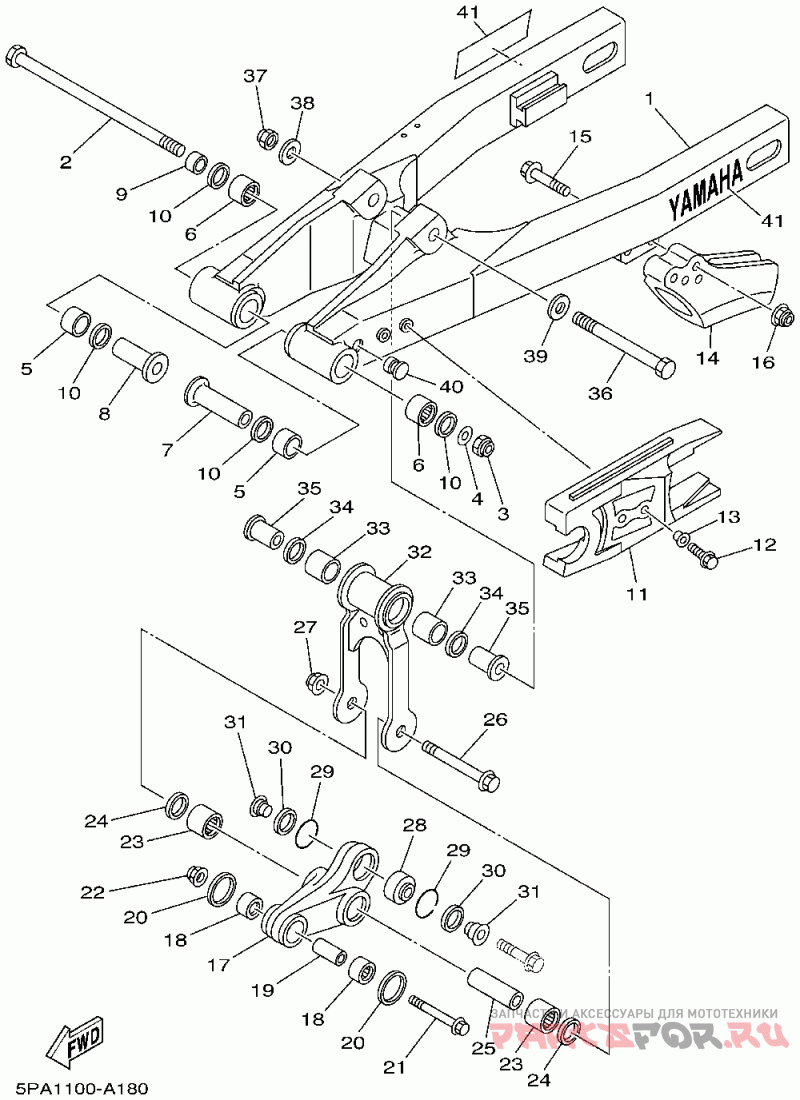

Бугель (задний рычаг)

Yamaha (Америка) YZ 85

Yamaha (Америка)
#oem кодцена
1
4ES-22110-01-00
Rear Arm Comp. (5pa1)
2
22W-25181-01-00
Axle, Wheel (5pa1)
3
95617-12100-00
Nut, U (5pa1)
4
90201-124G9-00
Washer, Plate (5pa1)
5
90385-17042-00
Bush, Spec'l Rubber (5pa1)
6
93317-21746-00
Bearing, Cyl.#17 (5pa1)
7
90387-127J8-00
Collar (5pa1)
8
90387-127J7-00
Collar (5pa1)
9
90387-1200U-00
Collar (5pa1)
10
93109-17071-00
Oil Seal (5pa1)
11
5PA-22151-00-00
Seal, Guard (5pa1)
12
95027-06014-00
Bolt, Flange (5pa1)
13
90387-062X0-00
Collar (5pa1)
14
39K-22199-00-00
Support, Chain (5pa1)
15
90105-08310-00
Bolt, Washer Based (5pa1)
16
90185-08169-00
Nut, Self Locking (5pa1)
17
4ES-2217A-00-00
Arm, Relay (5pa1)
18
93315-21455-00
Bearing, Cylindrical (5pa1)
19
90380-10218-00
Bush, Solid (5pa1)
20
4ES-22129-00-00
Cover, Thrust 2 (5pa1)
21
90105-10582-00
Bolt, Washer Based (5pa1)
22
95607-10200-00
Nut, Self-locking (5pa1)
23
93317-31771-00
Bearing, Cyl.(3yl) (5pa1)
24
93101-17062-00
Oil Seal, S-type (5pa1)
25
90380-12219-00
Bush, Solid (5pa1)
26
90105-12382-00
Bolt, Washer Based (5pa1)
27
95607-12200-00
Nut, U Flange (5pa1)
28
93399-99935-00
Bearing (5pa1)
29
93440-30113-00
Circlip, Outer (5pa1)
30
3XJ-22475-00-00
Seal, Dust (5pa1)
31
90387-103X9-00
Collar (5pa1)
32
4ES-2217F-00-00
Rod, Connecting 1 (5pa1)
35
90381-12091-00
Bush, Solid (5pa1)
36
90101-12755-00
Bolt, (4es) (5pa1)
37
90185-12119-00
Nut, Self-locking (5pa1)
38
90201-12749-00
Washer, Plate (5pa1)
39
90201-127J6-00
Washer, Plate (5pa1)
40
90338-10150-00
Plug, Spec'l Shape (5pa1)
41
99244-00140-00
Emblem 2 (5pa1)
