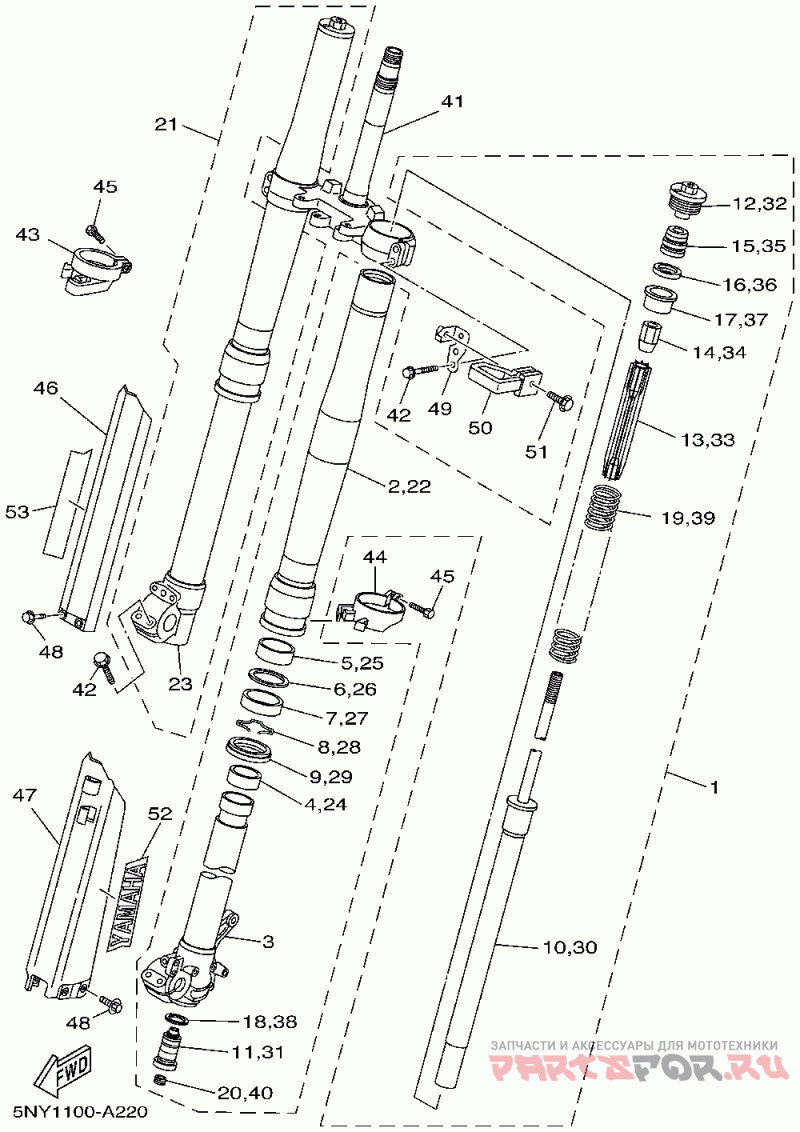

Передняя вилка

Yamaha (Америка) YZ 125

Yamaha (Америка)
#oem кодцена
1
5NY-23102-00-00
Front Fork Assy (l.h (5ny1)
2
5HD-23136-L0-00
Tube Outer (right) (5ny1)
3
5DH-23120-L0-00
Inner Tube Comp, 2 (5ny1)
4
5ET-23171-L0-00
Piston, Front Fork (5ny1)
5
5ET-23125-L0-00
Metal, Slide 1 (5ny1)
6
4SS-23146-L0-00
Washer, Oil Seal (5ny1)
7
5UN-23145-L0-00
Oil Seal (5ny1)
8
4SS-23153-L0-00
Ring, Snap (5ny1)
9
5HD-23144-L0-00
Seal, Dust (5ny1)
10
5NY-23170-L0-00
Cylinder Comp., Fron (5ny1)
11
5NY-2316A-L0-00
Valve Comp. (5ny1)
12
5NY-23111-L0-00
Bolt, Cap (5ny1)
13
5DH-23142-L0-00
Seat, Spring Upper (5ny1)
14
5HD-23393-L0-00
Nut, Special Shap (5ny1)
15
5MV-23195-L0-00
Rubber (5ny1)
16
5DH-23149-L0-00
Washer, Spring Upper (5ny1)
17
5DH-23118-L0-00
Spacer (5ny1)
18
4SS-23158-L0-00
Gasket (5ny1)
19
4SS-23141-40-00
Sprg, Frt Frk (.41) (5ny1)
20
3JD-2312G-L0-00
Plug (5ny1)
21
5NY-23103-00-00
Front Fork Assy (r.h (5ny1)
23
5BF-23110-L0-00
Inner Tube Comp. 1 (5ny1)
41
5DH-23340-M0-00
Under Bracket Comp. (5ny1)
42
5NY-23346-L0-00
Bolt 1 (5ny1)
43
4SS-2314G-L0-00
Protecter, Guide, 2 (5ny1)
44
5DH-2314F-L0-00
Proctector Comp. 1 (5ny1)
45
4SS-23346-L0-00
Bolt 1 (5ny1)
46
5DH-2314J-00-00
Protecter Comp., 2 (5ny1)
47
5DH-2314H-00-00
Protecter Comp., 1 (5ny1)
48
3SP-23356-L0-00
Bolt 2 (5ny1)
49
4EW-2331E-L1-00
Guide, Cable (5ny1)
50
4DA-23389-00-00
Guide, Cable (5ny1)
51
90119-05071-00
Bolt, With Washer (5ny1)
52
4XL-2153A-10-00
Emblem, Yamaha (5ny1)
