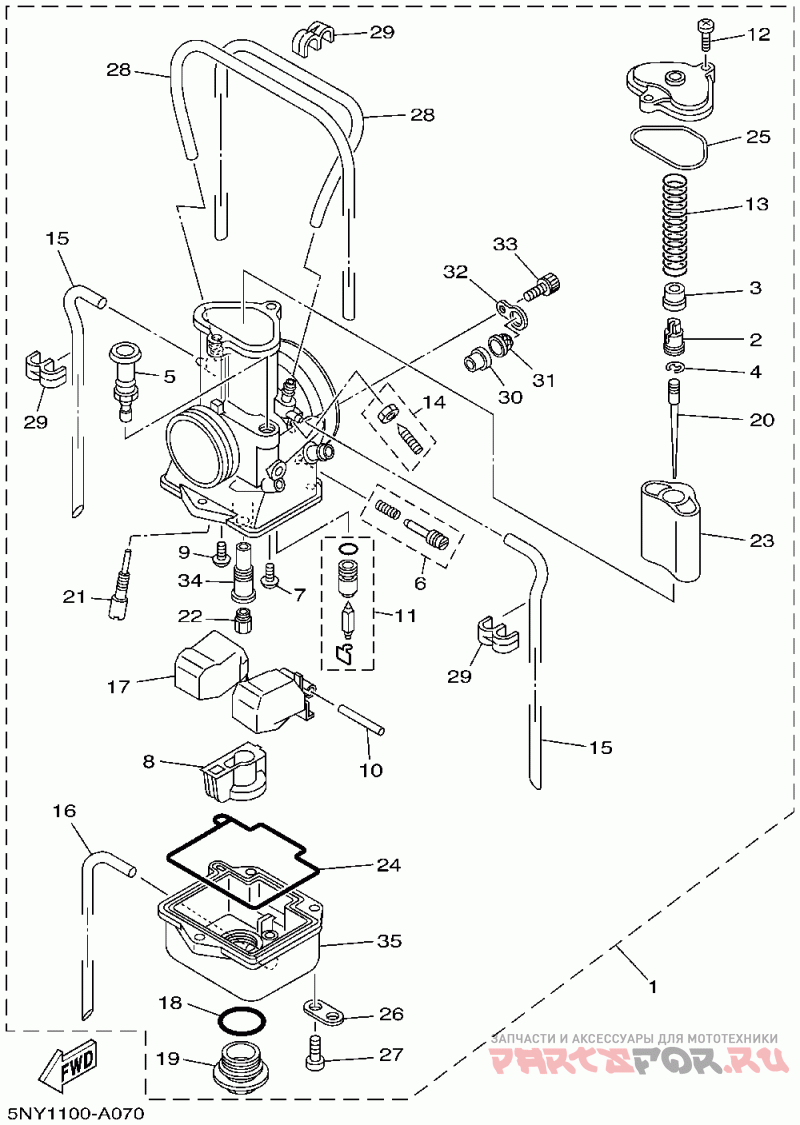

Карбюратор

Yamaha (Америка) YZ 125

Yamaha (Америка)
#oem кодцена
1
5NY-14101-00-00
Carburetor Assy 1 (5ny1)
2
5HD-14261-00-00
Holder (5ny1)
3
4PE-14194-00-00
Ring (5ny1)
4
3MA-14159-00-00
Clip (5ny1)
5
3JE-14171-00-00
Plunger, Starter (5ny1)
6
4GL-14104-00-00
Air Screw Set (5ny1)
7
1FN-14565-00-00
Screw (5ny1)
8
5ET-14261-01-00
Holder (5ny1)
9
98507-04008-00
Screw, Pan Head (5ny1)
10
353-14186-00-00
Pin, Float (5ny1)
11
4PE-14107-38-00
Needle Valve Set (5ny1)
12
98507-04014-00
Screw, Pan Hd N15 (5ny1)
13
4PE-14131-00-00
Spring, Throttle Vl (5ny1)
14
4PE-14103-00-00
Throttle Screw Set (5ny1)
15
5ET-14197-00-00
Pipe (5ny1)
16
3XV-14348-20-00
Pipe (5ny1)
17
5ET-14185-00-00
Float (5ny1)
18
2K6-14147-00-00
O-ring (5ny1)
19
5ET-14115-00-00
Plug, Screw (5ny1)
20
284-14116-E2-00
Needle Ap(5ny1)
20
284-14116-E3-00
Needle Ap(5ny1)
20
284-14116-E4-00
Needle Std(5ny1)
20
284-14116-E5-00
Needle Ap(5ny1)
20
284-14116-E6-00
Needle Ap(5ny1)
20
284-14116-F2-00
Needle Ap(5ny1)
20
284-14116-F3-00
Needle Ap(5ny1)
20
284-14116-F4-00
Needle Ap(5ny1)
20
284-14116-F5-00
Needle Ap(5ny1)
20
284-14116-F6-00
Needle Ap(5ny1)
21
4KM-14142-20-00
Jet, Pilot (# 20) Ap(5ny1)
21
4KM-14142-22-00
Jet, Pilot (# 22.5) Ap(5ny1)
21
4KM-14142-25-00
Jet, Pilot (# 25 Ap(5ny1)
21
4KM-14142-27-00
Jet, Pilot (# 27.5 Ap(5ny1)
21
4KM-14142-30-00
Jet, Pilot (# 30) Std(5ny1)
21
4KM-14142-32-00
Jet, Pilot (# 32.5) Ap(5ny1)
21
4KM-14142-35-00
Jet, Pilot(#35) Ap(5ny1)
21
4KM-14142-37-00
Jet, Pilot (# 37.5) Ap(5ny1)
21
4KM-14142-40-00
Jet, Pilot(#40) Ap(5ny1)
22
137-14143-78-00
Jet, Main #390 Ap(5ny1)
22
137-14143-80-00
Jet, Main #400 Ap(5ny1)
22
137-14143-82-00
Jet, Main #410 Ap(5ny1)
22
137-14143-84-00
Jet, Main #420 Std(5ny1)
22
137-14143-86-00
Jet, Main #430 Ap(5ny1)
22
137-14143-88-00
Jet, Main #440 Ap(5ny1)
22
137-14143-90-00
Jet, Main (#450) Ap(5ny1)
22
137-14143-92-00
Jet, Main #460 Ap(5ny1)
23
5NY-14112-55-00
Valve, Throttle 1 Ap(5ny1)
23
5NY-14112-57-00
Valve, Throttle 1 Std(5ny1)
23
5NY-14112-60-00
Valve, Throttle 1 Ap(5ny1)
24
5ET-1416A-00-00
O-ring (5ny1)
25
5ET-14147-00-00
O-ring (5ny1)
26
51R-14146-00-00
Plate (5ny1)
27
98580-05014-00
Screw, Pan Head (5ny1)
28
2J2-14196-00-00
Pipe, Overflow (5ny1)
29
87M-14137-00-00
Clip (5ny1)
30
5MV-14194-00-00
Ring (5ny1)
31
5MV-24514-00-00
Net, Filter 1 (5ny1)
32
5MV-14146-00-00
Plate (5ny1)
33
5MV-14216-00-00
Screw (5ny1)
34
5MV-14261-00-00
Holder (5ny1)
35
5NY-14181-00-00
Body, Float Chamber (5ny1)
