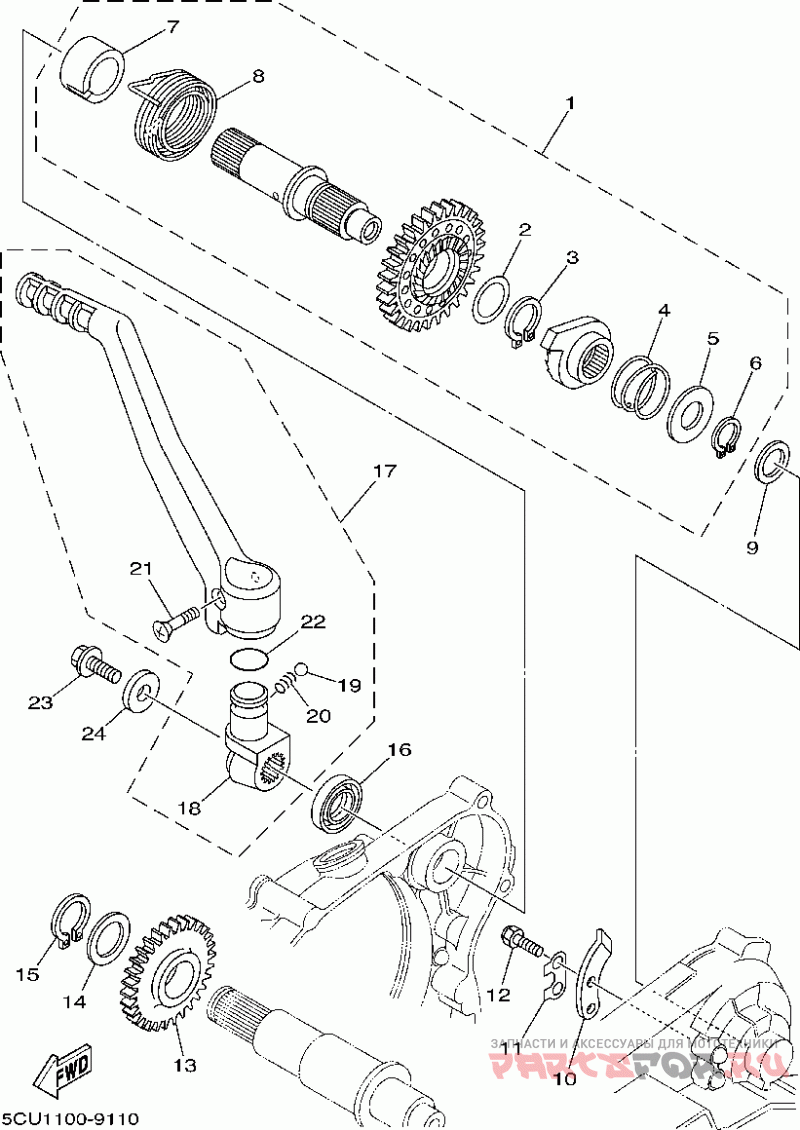

Стартер

Yamaha (Америка) YZ250N

Yamaha (Америка)
#oem кодцена
1
5CU-15601-01-00
Kick Shaft Assy (5mw1)
2
90201-20685-00
Washer, Plate (5mw1)
3
93410-20038-00
Circlip, S-type (5mw1)
4
90501-16107-00
Spring, Compression (5mw1)
5
90201-167P7-00
Washer, Plate (5mw1)
6
99009-16400-00
Circlip, S-type (5mw1)
7
5GR-15664-00-00
Guide, Spring (5mw1)
8
90508-305B0-00
Spring, Torsion (5mw1)
9
90201-162H4-00
Washer, Plate (5mw1)
10
3Y6-15674-00-00
Guide, Ratchet Whl (5mw1)
11
214-15686-00-00
Washer, Lock (5mw1)
12
97017-06016-00
Bolt, Hexagon (5mw1)
13
5CU-15651-00-00
Gear, Kick Idle (5mw1)
14
90201-20276-00
Washer, Plate (5mw1)
15
99009-20400-00
Circlip (5mw1)
16
93102-20484-00
Oil Seal (5mw1)
17
4EW-15620-02-00
Kick Crank Assy (5mw1)
18
3SP-15621-02-00
Boss, Kick Crank (5mw1)
19
93501-04011-00
Ball 1/4 (5mw1)
20
90501-13720-00
Spring, Compression (5mw1)
21
90152-06010-00
Screw, Countersunk (5mw1)
22
93210-19216-00
O-ring (5mw1)
23
95027-08020-00
Bolt, Small Flange (5mw1)
24
90201-087A9-00
Washer, Plate (5mw1)
