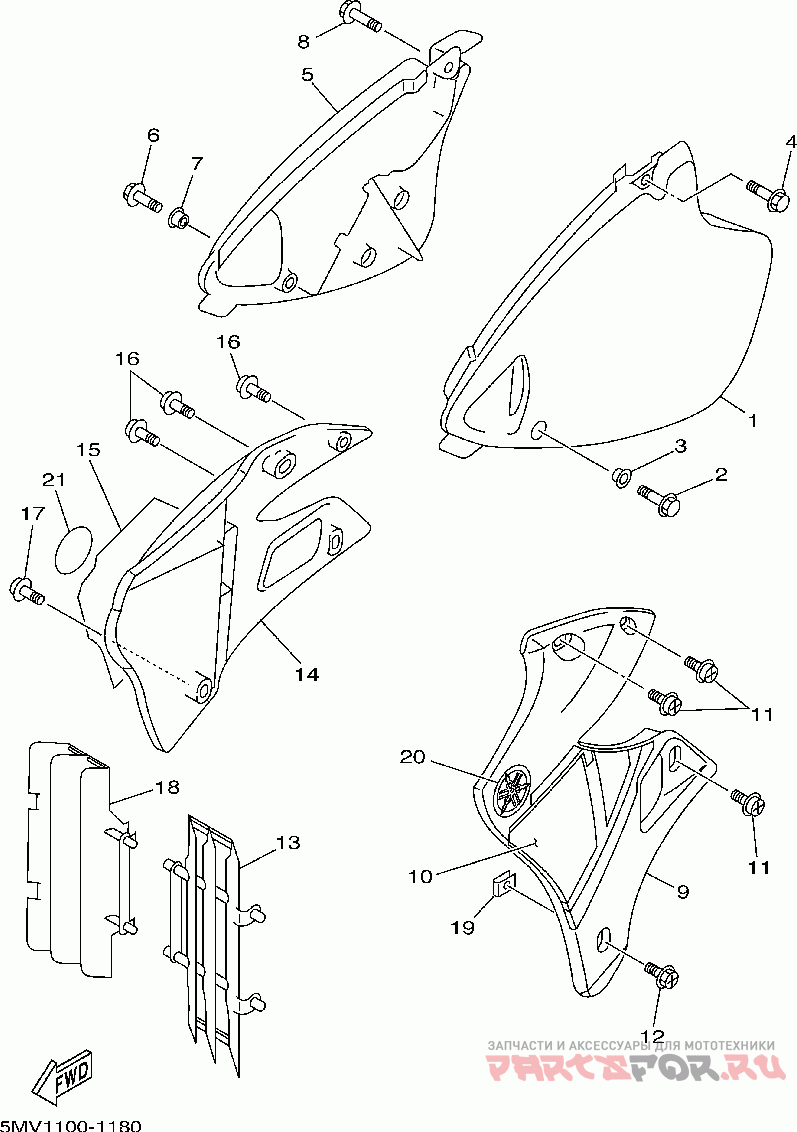

Боковая панель для мотоциклов Yamaha (Америка) YZ250N (2001)

Москва и регионы России

Боковая панель

Yamaha (Америка) YZ250N

Боковая панель

#

oem код

название

цена

1

4SS-21711-00-00

Cover, Side 1 (5mw1)

Cover, Side 1 (5mw1)

2

Bolt, Flange (5mw1)

Bolt, Flange (5mw1)

3

Collar (5mw1)

Collar (5mw1)

5

4SS-21721-00-00

Cover, Side 2 (5mw1)

Cover, Side 2 (5mw1)

9

5ET-21730-10-00

Cover, Side 3 (5mw1)

Cover, Side 3 (5mw1)

10

5MV-2173E-00-00

Graphic 1 (5mw1)

Graphic 1 (5mw1)

11

Screw, Bind (5mw1)

Screw, Bind (5mw1)

12

Screw, With Washer (5mw1)

Screw, With Washer (5mw1)

13

4EW-2172A-00-00

Panel 1 (5mw1)

Panel 1 (5mw1)

14

5ET-21740-10-00

Cover, Side 4 (5mw1)

Cover, Side 4 (5mw1)

15

5MV-2173F-00-00

Graphic 2 (5mw1)

Graphic 2 (5mw1)

19

Nut, Spring (4es) (5mw1)

Nut, Spring (4es) (5mw1)

20

5MV-2175C-00-00

Tuning Fork Mark (5mw1)

Tuning Fork Mark (5mw1)
