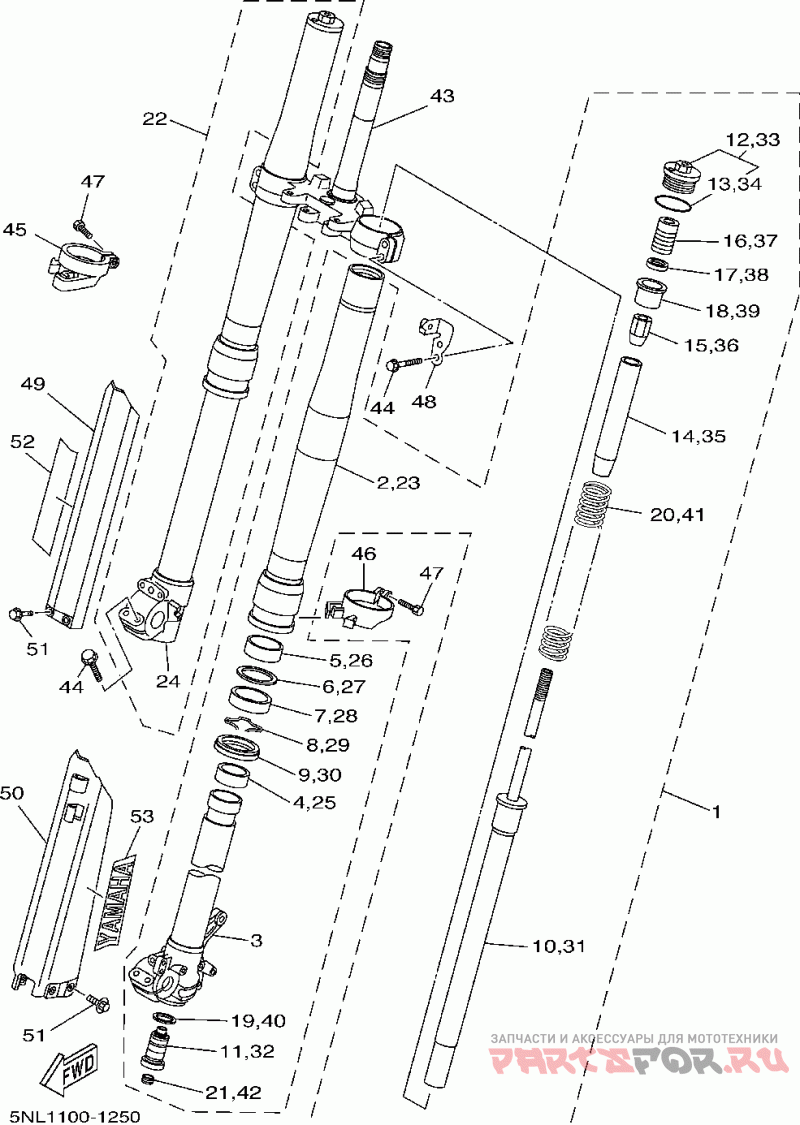

Передняя вилка

Yamaha (Америка) YZ250FN

Yamaha (Америка)
#oem кодцена
1
5NL-23102-00-00
Front Fork Assy (l.h (5nl1)
2
5HD-23136-L0-00
Tube Outer (right) (5nl1)
3
5DH-23120-L0-00
Inner Tube Comp, 2 (5nl1)
4
5ET-23171-L0-00
Piston, Front Fork (5nl1)
5
5ET-23125-L0-00
Metal, Slide 1 (5nl1)
6
4SS-23146-L0-00
Washer, Oil Seal (5nl1)
7
5UN-23145-L0-00
Oil Seal (5nl1)
8
4SS-23153-L0-00
Ring, Snap (5nl1)
9
5HD-23144-L0-00
Seal, Dust (5nl1)
10
5MV-23170-L0-00
Cylinder Comp., Fron (5nl1)
11
5NL-2316A-00-00
Valve Comp. (5nl1)
12
5MV-23111-L0-00
Bolt, Cap (5nl1)
13
93210-42263-00
O-ring (5nl1)
14
5DH-23142-L0-00
Seat, Spring Upper (5nl1)
15
5HD-23393-L0-00
Nut, Special Shap (5nl1)
16
5MV-23195-L0-00
Rubber (5nl1)
17
5DH-23149-L0-00
Washer, Spring Upper (5nl1)
18
5DH-23118-L0-00
Spacer (5nl1)
19
4SS-23158-L0-00
Gasket (5nl1)
20
5NL-23141-00-00
Spring, Front Fork (5nl1)
21
3JD-2312G-L0-00
Plug (5nl1)
22
5NL-23103-00-00
Front Fork Assy (r.h (5nl1)
24
5BF-23110-L0-00
Inner Tube Comp. 1 (5nl1)
43
5NL-23340-00-00
Under Bracket Comp. (5nl1)
44
5MV-23346-L0-00
Bolt 1 (5nl1)
45
4SS-2314G-L0-00
Protecter, Guide, 2 (5nl1)
46
5DH-2314F-L0-00
Proctector Comp. 1 (5nl1)
47
4SS-23346-L0-00
Bolt 1 (5nl1)
48
5DH-2314J-00-00
Protecter Comp., 2 (5nl1)
49
5DH-2314H-00-00
Protecter Comp., 1 (5nl1)
50
3SP-23356-L0-00
Bolt 2 (5nl1)
51
5HC-2331E-00-00
Guide, Cable (5nl1)
52
4XL-2153A-10-00
Emblem, Yamaha (5nl1)
