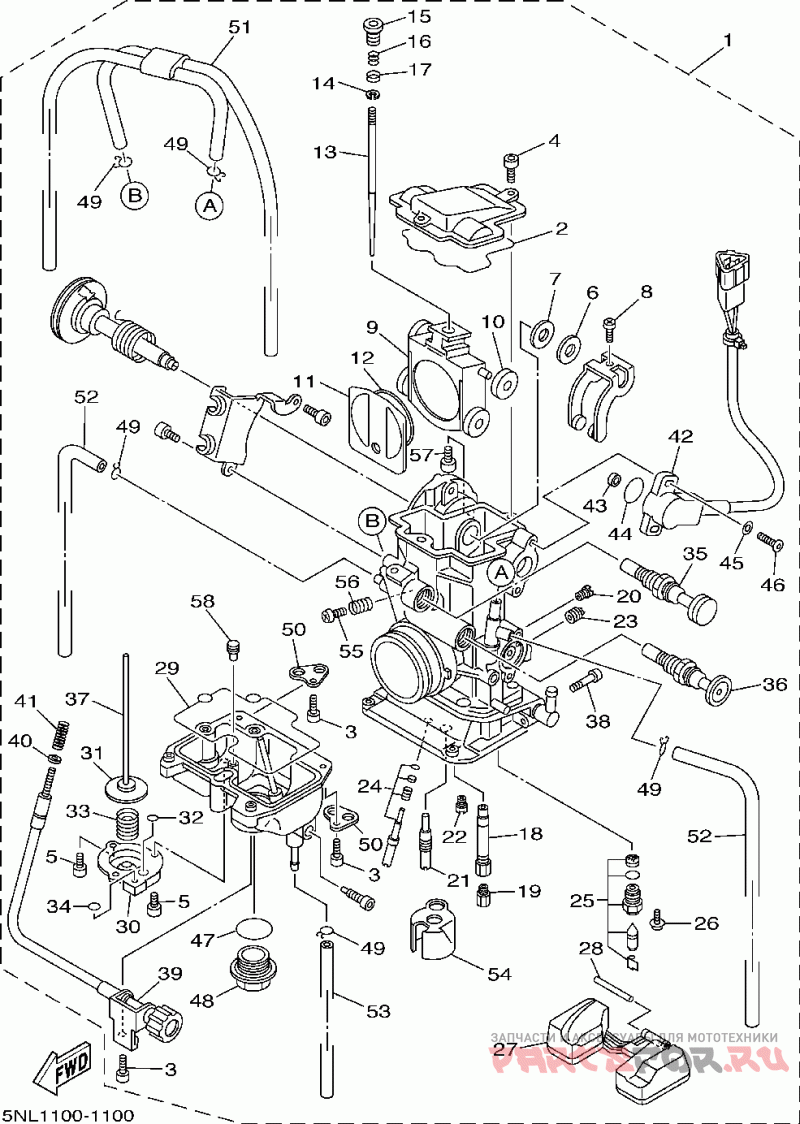

Карбюратор

Yamaha (Америка) YZ250FN

Yamaha (Америка)
#oem кодцена
1
5NL-14101-00-00
Carburetor Assy 1 (5nl1)
2
5JG-14959-00-00
Gasket (5nl1)
3
91317-04012-00
Bolt (5nl1)
5
91317-04008-00
Bolt (5nl1)
6
90202-08045-00
Washer, Plate (5nl1)
7
5JG-14951-00-00
Washer (5nl1)
8
5JG-14522-00-00
Screw, Adjust (5nl1)
9
5JG-14388-00-00
Valve, Vacuum Contro (5nl1)
10
3TJ-14267-40-00
Roller (5nl1)
11
5JG-14546-00-00
Valve, Needle (5nl1)
12
4FN-14997-00-00
Seal (5nl1)
13
5NL-14916-EP-00
Needle Std(5nl1)
13
5NL-14916-EL-00
Needle Ap(5nl1)
13
5NL-14916-EM-00
Needle Ap(5nl1)
13
5NL-14916-EN-00
Needle Ap(5nl1)
13
5NL-14916-E1-00
Needle Ap(5nl1)
13
5NL-14916-ER-00
Needle Ap(5nl1)
13
5NL-14916-ES-00
Needle Ap(5nl1)
14
3TJ-14159-40-00
Clip (5nl1)
15
5JG-14521-00-00
Screw, Adjust (5nl1)
16
5JG-14275-00-00
Spring (5nl1)
17
5JG-14264-00-00
Collar (5nl1)
18
5JG-14947-00-00
Jet, Needle (5nl1)
19
4MX-14943-42-00
Jet, Main(175) Std(5nl1)
19
4MX-14943-43-00
Jet, Main(180) Ap(5nl1)
19
4MX-14943-40-00
Jet, Main(165) Ap(5nl1)
19
4MX-14943-91-00
Jet, Main(168) Ap(5nl1)
19
4MX-14943-41-00
Jet, Main(170) Ap(5nl1)
19
4MX-14943-92-00
Jet, Main(172) Ap(5nl1)
19
4MX-14943-93-00
Jet, Main(178) Ap(5nl1)
19
4MX-14943-94-00
Jet, Main(182) Ap(5nl1)
19
4MX-14943-44-00
Jet, Main(185) Ap(5nl1)
19
4MX-14943-95-00
Jet, Main(188) Ap(5nl1)
19
4MX-14943-45-00
Jet, Main(190) Ap(5nl1)
20
3TJ-14943-47-00
Jet 200 (5nl1)
21
4MX-14948-06-00
Jet, Pilot(48) Ap(5nl1)
21
4MX-14948-04-00
Jet, Pilot(42) Std(5nl1)
21
4MX-14948-05-00
Jet, Pilot(45) Ap(5nl1)
21
4MX-14948-07-00
Jet, Pilot(50) Ap(5nl1)
21
4MX-14948-01-00
Jet, Slow (#35) Ap(5nl1)
21
4MX-14948-02-00
Jet, Slow (#42) Ap(5nl1)
21
4MX-14948-03-00
Jet (40) Ap(5nl1)
22
3TJ-1494F-13-00
Jet(#65) Ap(5nl1)
22
3TJ-1494F-12-00
Jet(#62) Ap(5nl1)
22
3TJ-1494F-14-00
Jet(#68) Ap(5nl1)
22
3TJ-1494F-15-00
Jet(#70) Ap(5nl1)
22
3TJ-1494F-16-00
Jet(#72) Std(5nl1)
22
3TJ-1494F-17-00
Jet(#75) Ap(5nl1)
22
3TJ-1494F-20-00
Jet(#82) Ap(5nl1)
22
3TJ-1494F-18-00
Jet(#78) Ap(5nl1)
22
3TJ-1494F-19-00
Jet(#80) Ap(5nl1)
23
7A9-14943-27-00
Jet(#100) (5nl1)
24
5NL-14105-00-00
Pilot Screw Set (5nl1)
25
5BE-14107-00-00
Needle Valve Set (5nl1)
26
5BE-14216-00-00
Screw (5nl1)
27
4SR-14985-00-00
Float (5nl1)
28
663-14548-00-00
Pin, Float Arm (5nl1)
29
5JG-14984-00-00
Gasket, Float Chambe (5nl1)
30
3TJ-14293-40-00
Cover 1 (5nl1)
31
5JG-14940-17-00
Diaphragm Assy Ap(5nl1)
31
5JG-14940-16-00
Diaphragm Assy Ap(5nl1)
31
5JG-14940-18-00
Diaphragm Assy Ap(5nl1)
31
5JG-14940-76-00
Diaphragm Assy Std(5nl1)
32
3TJ-14536-40-00
Gasket (5nl1)
33
3TJ-14933-40-00
Spring, Diaphragm (5nl1)
34
6H4-14561-00-00
O-ring (5nl1)
35
5JG-14171-00-00
Plunger, Starter (5nl1)
36
5JG-14371-00-00
Plunger Starter (5nl1)
37
5JG-14379-00-00
Rod, Starter (5nl1)
38
3TJ-14325-40-00
Screw, Pan Head (5nl1)
39
5JG-14922-00-00
Screw, Throttle (5nl1)
40
90201-08410-00
Washer, Plate (5nl1)
41
4FN-14934-00-00
Spring, Throttle Sto (5nl1)
42
5JG-85885-00-00
Throttle Sensor Assy (5nl1)
43
5BE-14449-00-00
Collar (5nl1)
44
5BE-14562-00-00
O-ring (5nl1)
45
92907-04600-00
Washer (jf2) (5nl1)
46
98507-04010-00
Screw, Panhead (5nl1)
47
4MX-14561-00-00
O-ring (5nl1)
48
4MX-14115-00-00
Plug, Screw (5nl1)
49
3TJ-14137-40-00
Clip (5nl1)
50
5BE-14146-00-00
Pipe (5nl1)
51
5NL-14196-00-00
Pipe (5nl1)
52
5JG-14197-00-00
Pipe (5nl1)
53
5JG-14987-00-00
Hose (5nl1)
54
5JG-14346-00-00
Plate (5nl1)
55
5JG-14565-00-00
Screw (5nl1)
56
5JG-14531-00-00
Spring, Adjust Screw (5nl1)
57
5NL-14591-00-00
Screw (5nl1)
58
4JT-1494F-28-00
Jet (#105) Std(5nl1)
58
4JT-1494F-17-00
Jet Ap(5nl1)
58
4JT-1494F-21-00
Jet Ap(5nl1)
58
4JT-1494F-25-00
Jet Ap(5nl1)
58
4JT-1494F-30-00
Jet Ap(5nl1)
58
4JT-1494F-32-00
Jet Ap(5nl1)
58
4JT-1494F-34-00
Jet Ap(5nl1)
