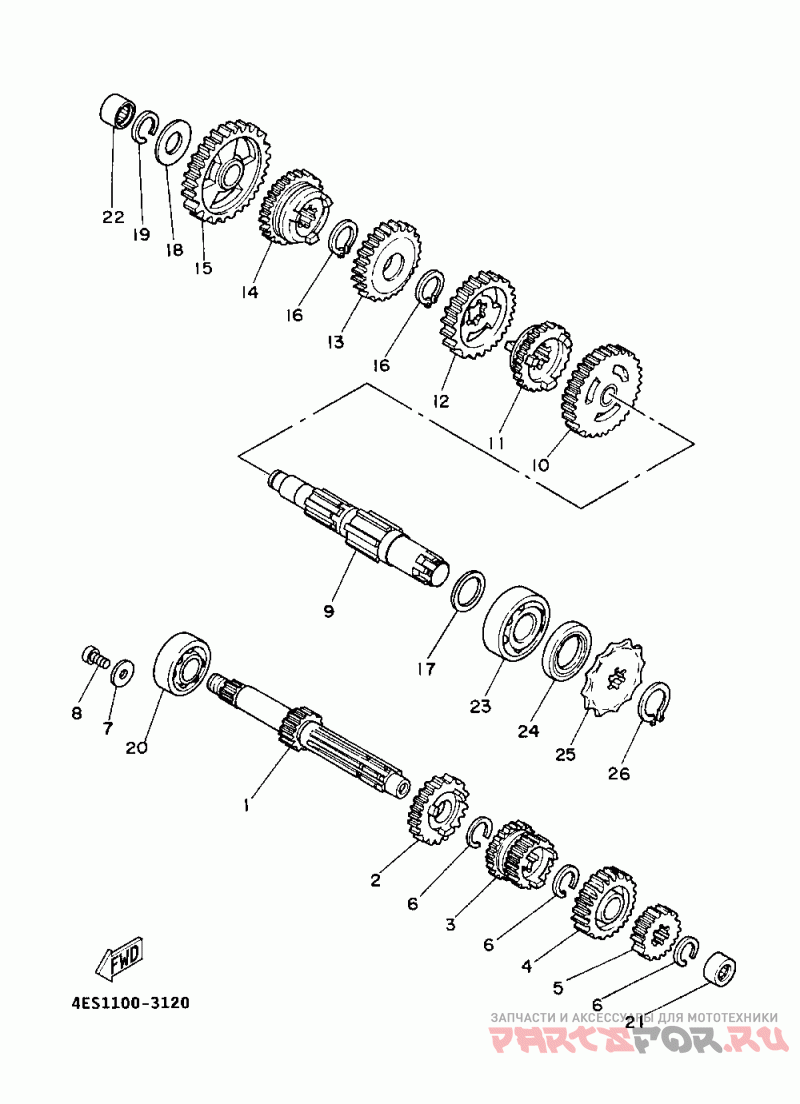

Трансмиссия

Yamaha (Америка) YZ 80

Yamaha (Америка)
#oem кодцена
1
4ES-17411-01-00
Axle, Main (4esa)
2
4ES-17151-10-00
Gear, 5th Pinion (4esa)
3
4ES-17131-03-00
Gear, 3rd Pinion (4esa)
4
4ES-17161-10-00
Gear, 6th Pinion (4esa)
5
4ES-17121-01-00
Gear, 2nd Pinion (4esa)
6
93440-17064-00
Circlip, Outer (4esa)
7
90201-065F3-00
Washer, Plate (4esa)
8
98517-06012-00
Screw, Pan (4esa)
9
4ES-17421-00-00
Axle, Drive (4esa)
10
4ES-17221-01-00
Gear, 2nd Wheel (4esa)
11
4ES-17261-01-00
Gear, 6th Wheel (4esa)
12
4ES-17231-10-00
Gear, 3rd Wheel (4esa)
13
4ES-17241-00-00
Gear, 4th Wheel (4esa)
14
4ES-17251-00-00
Gear, 5th Wheel (4esa)
15
4ES-17211-01-00
Gear, First Wheel (4esa)
16
93410-20038-00
Circlip, S-type (4esa)
17
90201-203E7-00
Washer, Plate (4esa)
18
164-17427-00-06
Shim 1 Ur (4esa)
18
90201-156F8-00
Washer, Plate (12w) Ur (4esa)
18
164-17427-00-10
Shim 1 Ur (4esa)
19
93440-15012-00
Circlip, Outer (4esa)
20
93306-20310-00
Bearing (4esa)
21
93317-11245-00
Bearing, Cyl.#17 (4esa)
22
93315-31502-00
Bearing, Cyl.#15 (4esa)
23
93306-20461-00
Bearing (4esa)
24
93102-20143-00
Oil Seal, Sd-type (4esa)
25
3TU-17460-00-00
Drive Sprocket Assy Ap (4esa)
25
93822-13213-00
Sprocket, Drive Ap (4esa)
25
93822-14043-00
Drive Sprocket Std (4esa)
25
93822-15065-00
Drive Sprocket 15t Ap (4esa)
26
99009-18400-00
Circlip (4esa)
